Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel

Name: Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FTB104 -ST
Price: 2.18 USD
Availability: InStock

Nama merek:	YINGDA
Nomor Model:	FTB104 -ST
MOQ:	50PCS
harga:	0.18USD-4.29USD
Ketentuan Pembayaran:	Western Union, T/T, MoneyGram

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO,SGS

color:

Gray

material:

cold rolled steel

connector:

SC/ST/FC/LC

fiber count:

4 cores

size:

140*105*28 mm

cable port:

1port, can open another on demand

cable diameter:

5~10mm

Packaging Details:

1pc/ box, 50pcs/ carton box

Supply Ability:

500000PCS a month

Menyoroti:

serat optik kotak terminal

serat optik distribusi kotak

Deskripsi Produk

Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel

Model: FTB104 - ST

FTB104 fiber optic termination box is widely used in the end termination of residential buildings and villas to fix and splice with pigtails.

Features

Cold rolled steel, gray color
small size,light weight,good appearance
wall mounted with mechanical protection function
max fiber capacity 4fibers,4 adapter output
available for 4pcs FC,SC,ST,LC adapters
hinge and convenient press-pull button lock design
Environmental Temperature:-25°C~40°C;
Self-clip design,easy to operate
sample is ok

Specifications

Item	FTB 104	FTB 108	FTB 116
Size(HWD)mm	14010528	20014830	24520048
Cable diameter(mm)	5~10
Cable ports	1pc	2pcs	3pcs
Max capacity of splice	4 cores	8 cores	16 cores

More pictures

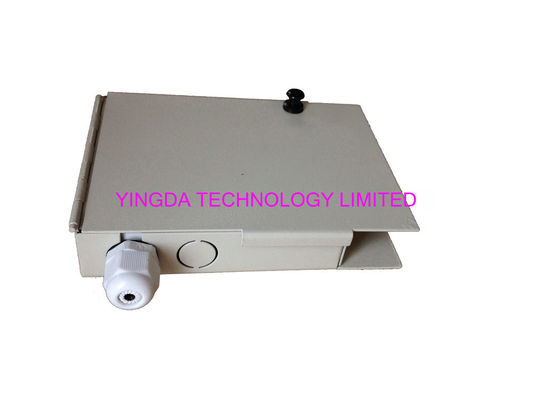

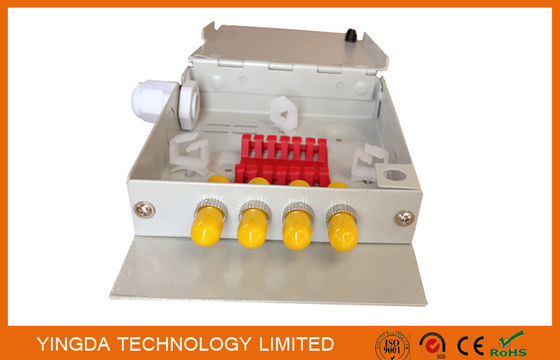

FTB104 terminal box is used indoor, metal material, gray color

and self-clip design with plastic fixtures, no need wrench or keys,easy to open and close

1pc cable gland, if need, can open another. cable diameter:5-10mm

the box is totally closed

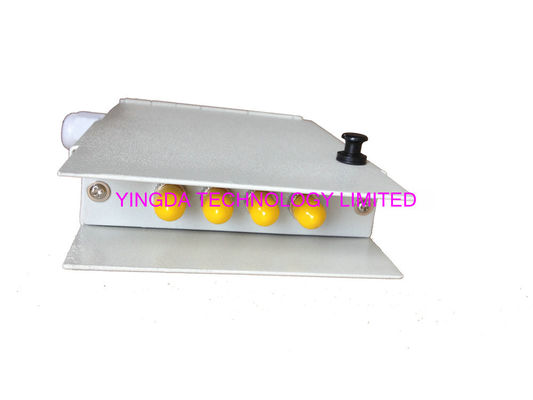

the adapter panel can change into SC,ST,FC,LC adapters port

the adapter panel max capacity can be 4fibers, 6fibers, 8fibers 12fibers...16fibers

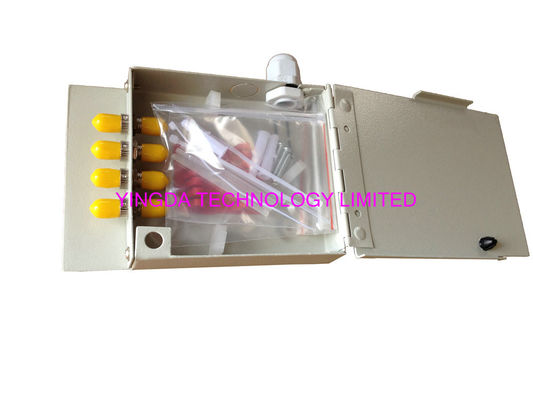

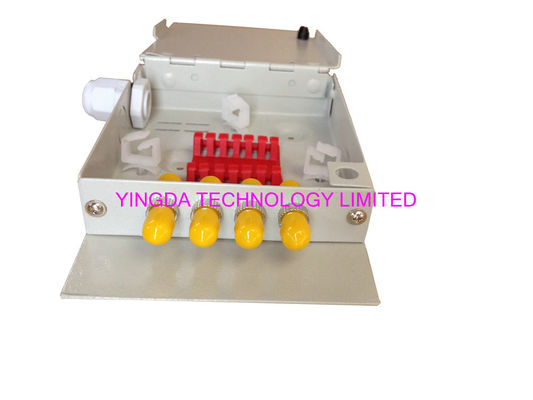

inside with protection sleeve holders and cable ties to fix the cable and fusion pigtails.

Kit content

Splice protectin sleeve	60 mm	4 pcs
Cable ties	60 mm	10 pcs
Installation nails	Bolt	3-4 pcs

Package information

Carton size	Carton weight	Carton qty
733229 cm	22 kgs	50 pcs

1piece in a box, inside foam and plastic bag to protect the box. then put in shipping carton box for delivery.

If you have other request, or speical design, we can make for you.
