2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet

2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet

Nama merek:	YINGDA
Nomor Model:	FTB86X
MOQ:	50 PCS
harga:	0.18USD-4.29USD

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

ISO,SGS

color:

white

material:

plastic PC / ABS

adapter:

SC or LC duplex

fiber count:

4 core single fiber

size:

80*100*23 mm

cable port:

2 pcs

Packaging Details:

1pc/ box

Menyoroti:

serat optik kotak terminal

serat optik kotak persimpangan

Deskripsi Produk

2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet

Model: FTB86X

Sell Point:

max. 4pcs Single Fiber Cable in and out
SC simplex adapter or LC duplex adaptor can be choose
FTTH drop cable available
sample is ok
cusotmer OEM logo, label ok

Features

The series are used in the end termination of residential buildings and villas,
to fix and splice with pigtails;
Can be installed on the wall;
May adapt variety of optical connection system;
Optical fiber can be managed effectively.

FTB86 box struture

2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet 0

Specification

Model	Socket panel FTB-86X
Dimension / mm	8010023
Cable diameter / mm	Φ3
Cable ports	2
Max capacity of splice	4 single fiber

Package information

Model	Socket panel FTB-86X
Carton size / mm	2533954 cm
Net weight / carton	19.5 kgs
Gross weight / carton	23 kgs
Weight / carton	260 pcs

More pictures

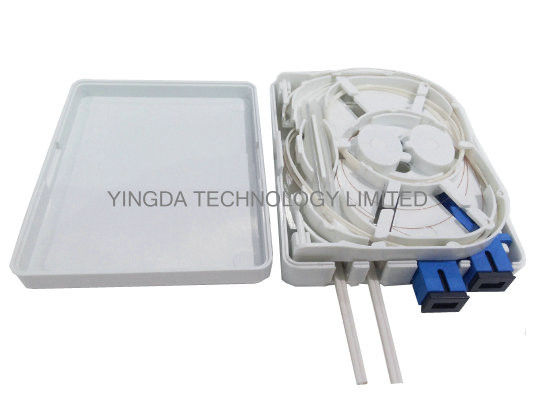

2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet 1

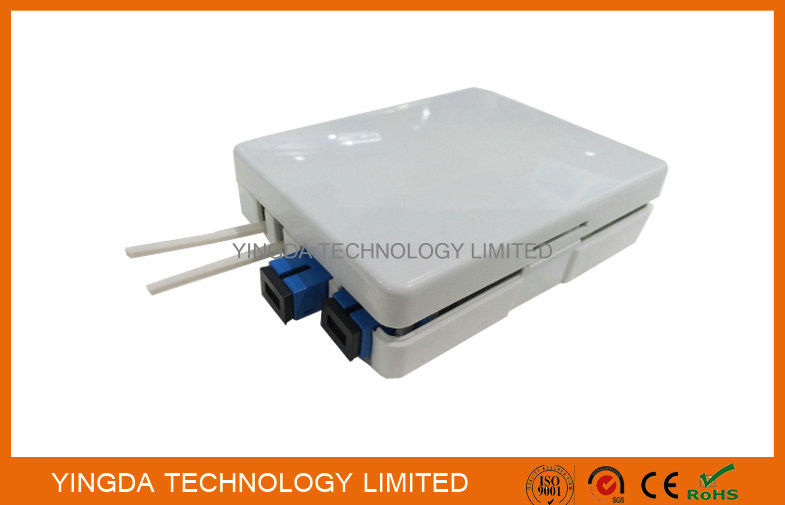

FTB86X socket panel back FTB86X socket panel front

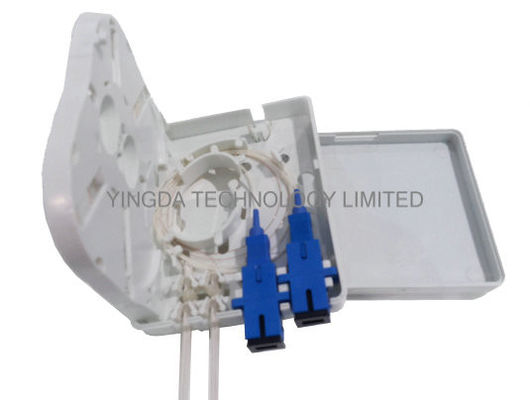

2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet 3

FTB86X socket panel tray -distribution side FTB86X socket panel tray - splicing side

This wall mounting optic outlet FTB86X box can also use for fast connectors

with FTTH drop cable:

2 Ports SC Adaptor Fiber Optic Termination Box, 2 Fibers FTTH Termination Box Wall Outlet 5
