| Nama merek: | YINGDA |
| Nomor Model: | JW3105P |
| MOQ: | 1 piece |
| harga: | Dapat dinegosiasikan |
| Waktu Pengiriman: | 3 days |

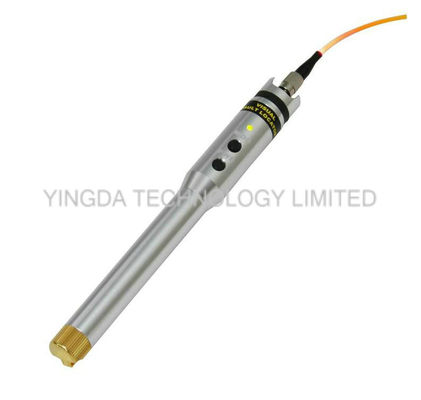

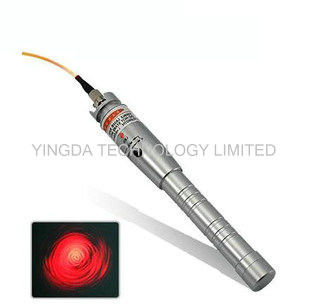

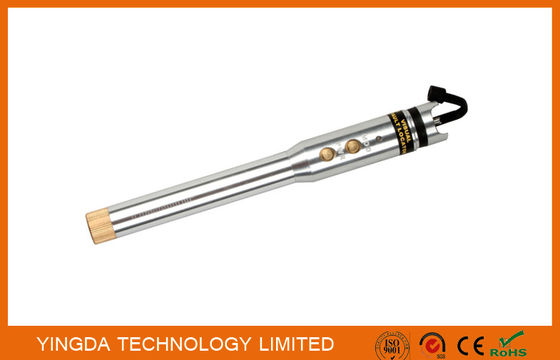

Fiber Tool Kits Pen-type Visual Fault Finder Locator VFL Optical Fiber FP-LD Emitter 10Mw
The JW105 Pentype VFL is specially designed for field personnel who need an efficient and
economical tool for fiber tracing, fiber routing and continuity checking in optical network.
It includes:
|
Type |
JW3105 Pen-type Visual Fault Finder |
|
Central Wavelength |
650nm±10nm (635nm can be required on request) |
|
Emitter Type |
FP-LD |
|
Output Power |
Optional choice for 1mw, 3mw, 5mw,10mw on actual needs |
|
Optical Connector |
2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests |
|
Operating Model |
Both CW and Pulse available |
|
Pulse Frequency |
2~3Hz |
|
Power Supply |
2 AA alkaline batteries |
|
Battery Operating Time |
650nm@1mw ≥65hour 650nm@3mw ≥50hour 650nm@10mw≥15hour Test with Panasonic LR6 AA ALKALINE battery |
|
Operating Temperature |
-10~+45 (℃) |
|
Storage Temperature |
-40~+70 (℃) |
|
Dimension (mm) |
￠15X180 |
|
Weight |
120g(Without battery) |

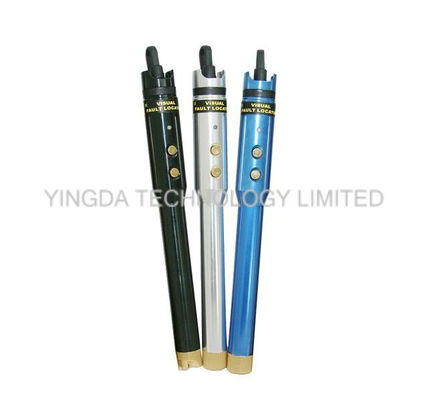

Remark: Colors can be customized on request when meets certain qty!
|
MODEL |
INCLUDES |
|
JW3105 P |

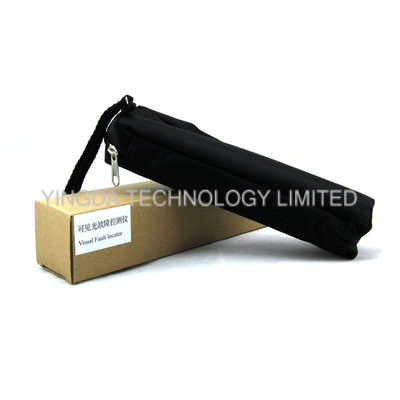

Main Unit (Original color), 2pcs Alkaline battery, User Manual, Cotton swabs and Soft Carrying case. |
video
video
|
|
