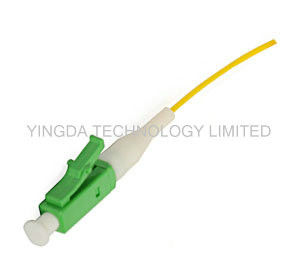

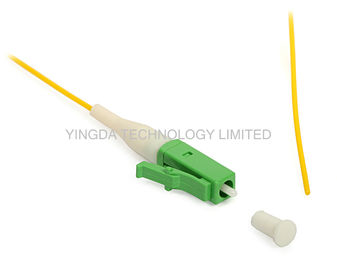

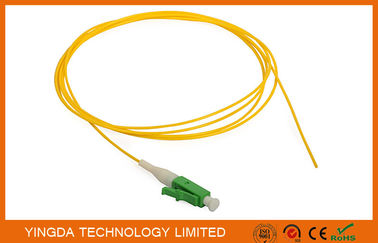

LC APC Fiber Pigtails OS2 Simplex 900um 1Meter , Pigtail LC APC SM SX 1M
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xFiber type | single mode | fiber count | Simplex |
---|---|---|---|
cable type | fiber optic | cable diameter | 900 um |
cable length | 1 meter | connector boot | green and white |
polish mode | APC | connector | LC |
cable color | yellow or white | OEM | OK |
ferrule | ceramic | ||
Cahaya Tinggi | tahan air dikepang,pita kuncir |
LC APC Fiber Pigtails OS2 Simplex 900um 1Meter, Pigtail LC APC SM SX 1M
LC Fiber Optic Pigtail are a small form factor fiber optic Pigtail. Lucent Technologies first developed
the LC Pigtail for TelCo environment uses. Hence, LC stands for Lucent Pigtails. LC fiber Pigtails
have been standardized as FOCIS 10 (Fiber Optic Pigtail Intermate-ability Standards) in EIA/TIA-604-10.
LC Fiber Optic Pigtail use a 1.25 mm ferrule, half the dimension of the ST ferrule or a regular ceramic
ferrule Pigtail. LC gives excellent performance and is greatly preferred for single mode transmission.
The LC Unibody is fully compatible with the original LC family of single-mode and multimode Pigtails,
adapters and associated components, manufactured under a worldwide license from OFS Fitel. The
Unibody features a compact, pull-proof design with RJ-45 style interface, and features a one-piece
molded housing with internal strength member, for significantly improved 90 side-pull performance
under Telcordia GR-326-CORE testing. It is manufactured using a ruggedized material that results
in a latch trigger up to four times stronger than average.
The LC Unibody Series includes an optional anti-snag collar that prevents accidental tear and damage
in high density networks. The collar comes in either simplex or duplex configurations, and can be used
on the same Pigtail body, eliminating the need to purchase different housing styles. The series includes
a jumper Pigtail designed for 2.0mm cordage, and a Behind the Wall (BTW) version for 900um buffered
fiber. The Unibody can be used for single-mode and multimode applications with either a PC or APC
endface. Plastic housing and boot made from UL rated materials are also available. The series is
compliant with Telcordia GR-326-CORE, IEC 61754-20, and TIA/EIA 604-10 standards, and meets
independent testing criteria from OFS Fitel.
Features
- Insertion Loss <0.3dB
- High Return Loss
- Good Repeat ability
- Good Exchange ability
- High Temperature Stability
- Comply with YD/T 1272.4-2007 specification
- 8 Degree Angled physical contact polishing (APC)
Application
- CATV network
- Optical fiber communication systems
- Optical fiber data transmission
- Building network access
- Cabling system, ODF
- FTTX networks
Specification
Item |
Single mode (nomomodo) |
Multimode (Multimodo) |
Wavelength |
1310&1550nm |
850&1300nm |
Fiber type |
9/125um |
62.5/125um,50/125um,50/125um OM3,50/125um OM4 |
Connector type |
SC ST FC LC MU MTRJ E2000 DIN D4 ESCON |
|
Insertion loss on average |
≤0.3dB |
≤0.3dB |
Max. insertion loss |
≤0.5dB |
≤0.5dB |
Return loss |
UPC≥55dB;APC≥65dB |
≥20dB |
Operating temperature |
-40~+75℃ |
|
Storage temperature |
-40~+85℃ |
Ordering Information
LC / PC SM 9/125 SIMPLEX 0.9mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
