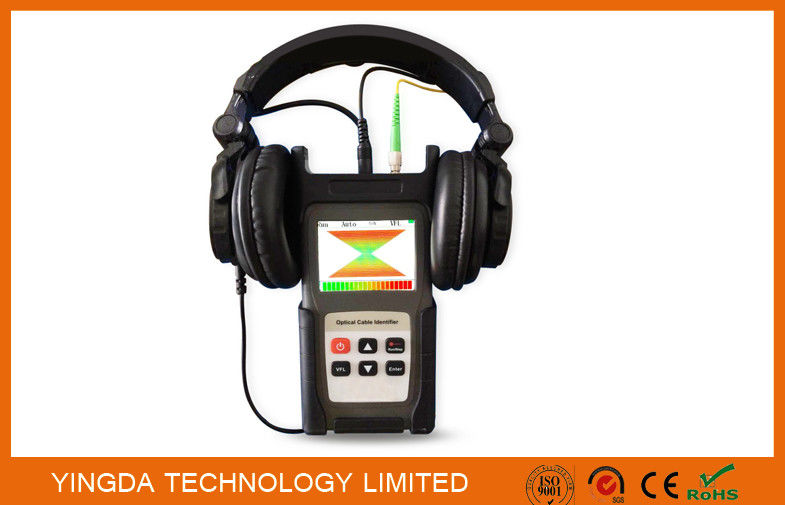

Cable Survey Instrument Optical Cable Identifier 1550nm 60Km / 80Km , Fiber Tool Kits
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xwavelength | 1550 nm | Interface type | SC/APC (PC, ST interchangeable) |
---|---|---|---|
Output power | -2dB, -1dB, -0.5dB, 0dB adjustable | Detection methods | single fiber testing, no loopback |
Display | 3.5'industrial screen | Dimension | 100*180*70mm |
Cahaya Tinggi | fiber optic tool kits,fiber termination kits |
Cable Survey Instrument Optical Cable Identifier 1550nm 60Km / 80Km , Fiber Tool Kits
Features
- Rapid and accurate identification
- In optical cable project, we need to search the target cable accurately, the operator only need
- to click the optical cable slightly, When operator click the targeted or wanted cable, JW6208
- can response with sound and light reaction, so as to identify quickly and accurately.
- Non destructive optical cable
- Replace previous method of cutting, bending, and other frozen,
- Beat mode recognition of target cable, completely does not damage the cable,
- The maximum cost savings, improve efficiency.
- The real one key type test, handheld design of portable and easy to carry, 3.5' color screen
- real-time waveform.
- The software of the intelligent struck the judgment of the two operation / display mode, combined
- with the Headset real-time audio, with 3 kinds of recognition percussion method, so as to quickly and
- accurately identify
- the measured cable
1. according to the Headset feedback information, the operator can intuitive judgment
percussion cable,
2. according to the waveform real-time cable, knock in the measured cable real-time
waveform will have obvious wave, visual disturbance
3. the instrument built-in intelligent mode, knock in the measured cable screen showed
positive and negative Pyramid strength, and also outputs the notification sound
Specifications:
Wavelength: |
1550nm |
Detection methods |
single fiber testing, no loopback |
Output power |
-2dB, -1dB, -0.5dB, 0dB adjustable |
The maximum distance |
60/80Km |
Interface type |
SC/APC (PC, ST interchangeable) |
Signal to noise ratio |
40dB |
Display |
3.5'industrial screen |
Short Troubleshooting |
650 red light |
Test results |
1, 2, 3 real time audio waveform display, intelligent mode |
Supply mode |
1, 7.4V 3500mAh battery (replaceable) standby time >24H (optional 10 minutes automatic shutdown) continuous working time >20H |
2, the 12V 2A DC power adapter |
|
Dimension |
100*180*70mm |
The light weight: |
490g (including battery) lightweight handheld portable easy belt design |
Standard package
JW6208 body |
1pc |
Earpiece |
1pc |
User manual |
1pc |
Charger |
1pc |
Bag |
1pc |
