| Nama merek: | YINGDA |
| Nomor Model: | GPRP-FC48-D |
| MOQ: | 50 pcs |
| harga: | Dapat dinegosiasikan |

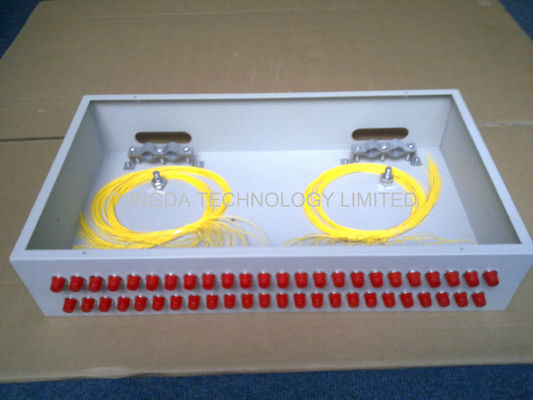

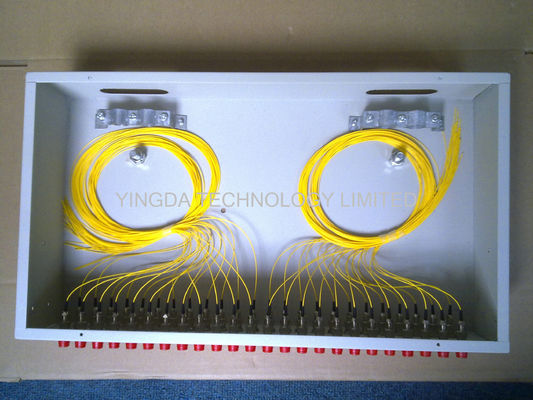

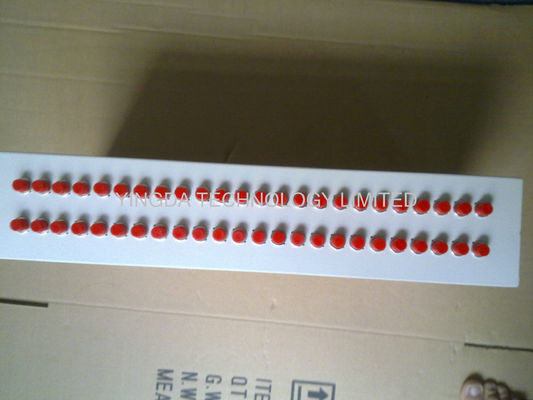

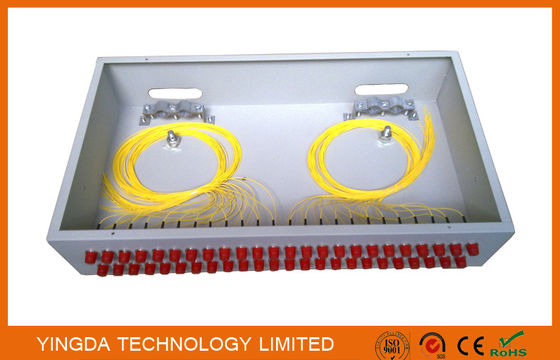

2U Rack Patch Panel Metal FC ST, 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load
Description
19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable
and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made
of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation
is convenient.
Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24
cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U.
Adapter panel can be simplex or duplex, and have ears to install in rack. It is smart design to supply
firm protection for optical cable terminal connection and optical fiber adapter installation. It is a combine
of termination, protection, connection, management of fiber optic cables.
Technical specification:
|
ambient temperature |
－25℃～＋40℃ |
|
relative humidity |
≤85%(＋30℃) |
|
atmospheric pressure |
70kPa～106kPa |
|
Insulation resistance |
fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, the insulation resistance should > 2 x 104MΩ. |
|
Dielectric strength |
fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, under 15kV voltage for 1min without breakdown, no arcing phenomena. |
Features
Order information
|
Model |
Dimension (mm) |
Max Capacity (cores) |
|
GPRP-SC12 |
480×200×1U |
12 |
|
GPRP-SC24 |
480×200×1U |
24 |
|
GPRP-SC48 |
480×200×2U |
48 |
|
GPRP-FC12 |
480×200×1U |
12 |
|
GPRP-FC24 |
480×200×1U |
24 |
|
GPRP-FC48 |
480×200×2U |
48 |
|
GPRP-ST12 |
480×200×1U |
12 |
|
GPRP-ST24 |
480×200×1U |
24 |
|
GPRP-ST48 |
480×200×2U |
48 |
When order, pls tell us below details:
1. Complete assembly with adapter and pigtail OR empty panel optional
2. Box color: Black , White
video
|
|
