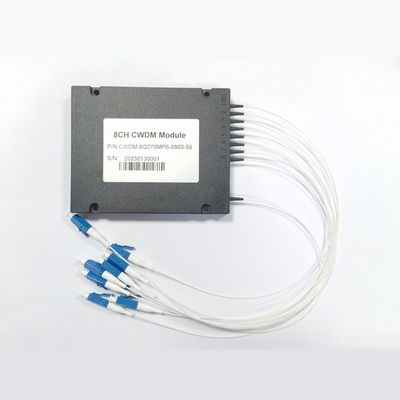

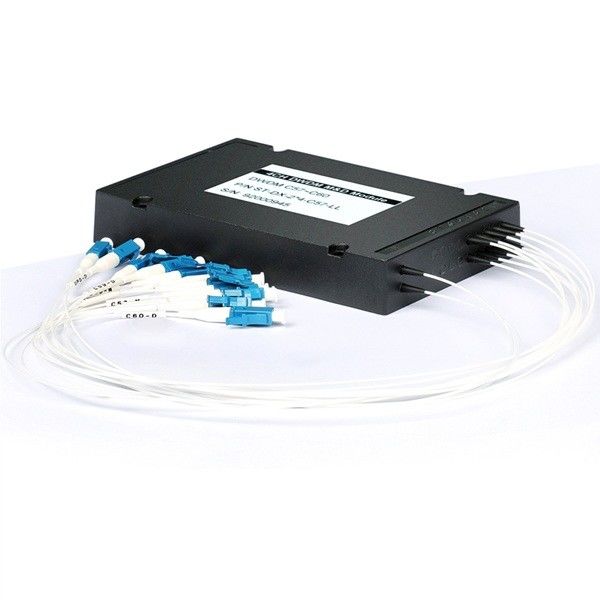

4 8 12 16 18 Channels CWDM OADM Module , 1310 1490 1550 nm Optical Add-Drop Multiplexer

Name: 4 8 12 16 18 Channels CWDM OADM Module , 1310 1490 1550 nm Optical Add-Drop Multiplexer
Brand: YINGDA TECHNOLOGY LIMITED
SKU: 8CH CWDM 1X8
Price: 2.10 USD
Availability: InStock

Nama merek:	Yingda
Nomor Model:	8CH CWDM 1X8
MOQ:	100pcs
harga:	1.1USD-4.58USD
Waktu Pengiriman:	7days
Ketentuan Pembayaran:	T/T,Western Union,MoneyGram

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Place of Origin:

china

Sertifikasi:

ISO

reflection:

1310/1490nm

transmition:

1550nm

connector type:

LC SC FC

fiber type:

SMF-28e

package:

blister box, 1pc/ box

Product name:

Fwdm Dwdm Cwdm

Network:

Wired LAN, 4g, 3G

Fiber count:

4/8/16/32

Packaging Details:

1pc/box, 10pcs/master box

Supply Ability:

20000pcs per month

Menyoroti:

18 Channels CWDM OADM Module

1310nm Optical Add-Drop Multiplexer

1550 nm Optical Add-Drop Multiplexer

Deskripsi Produk

Description

CWDM is a low-cost WDM transmission technology used for metropolitan area network access. It uses the huge bandwidth of the low-loss area of single mode fiber to couple light of different wavelengths into one optical fiber for transmission.

Mux CWDM Module Features

Low Insertion loss and low PDL

High channel Isolation

Good channel-to-channel uniformit

High Reliability and Stability

Telcordia Compliant

RoHS Compliant

WDM Module Application

ü Broadband networks

ü PON Networks

ü CATV system

ü CWDM system

CWDM Mux Demux Module Specification

Parameters		Unit	4CH	8CH	12CH	18CH
Operating Wavelength		nm	1260~1620
Channel Space		nm	20
Center Wavelength		nm	ITU,ITU+1
Center Wavelength Accuracy		nm	±0.8
Pass band @-0.5dB		nm	±6.5
Port Insertion Loss		dB	≤1.2	≤2.5	≤3.5	≤3.8
Link Loss		dB	≤2.0	≤3.2	≤4.0	≤4.3
Isolation (dB)	Adjacent	dB	≥30
	Non-adjacent	dB	≥40
Ripple		dB	≤0.5
Polarization Dependent Loss		dB	≤0.2
Return Loss		dB	≥40
Directivity		dB	≥50
Power		mw	≤300
Fiber Type		/	G657.A1(0.9mm Tube, 2.0mm Tube)
Fiber Length		m	0.5+/-0.05&Customized
Connector		/	LC/UPC&Customized
Operating Temperature		℃	-20~75

NOTE:

All specifications include all states of polarization and all operating temperature and all wavelength ranges specified.

All the data are without connectors, insertion loss of one pair conector is less than 0.3dB.

Mux Demux Module Structure Diagram (Refer to the below)

WDM Box Mechanical Dimensions (Refer to the below)

YINGDA Production line:

4 8 12 16 18 Channels CWDM OADM Module , 1310 1490 1550 nm Optical Add-Drop Multiplexer 2

4 8 12 16 18 Channels CWDM OADM Module , 1310 1490 1550 nm Optical Add-Drop Multiplexer 4

YINGDA More FTTH Products

Fiber splitter box Fiber PLC splitter Fiber adapter Fiber fast connector

Fiber Cable Patch Cord&Pigtail MPO Cable AOC Cable
