MPO patch cord MPO-LC MPO/MTP to 6 x LC UPC Duplex 12 Fibers OM4 MM Type A Breakout Patch Cord 5 meter 10 meter

Name: MPO patch cord MPO-LC MPO/MTP to 6 x LC UPC Duplex 12 Fibers OM4 MM Type A Breakout Patch Cord 5 meter 10 meter
Brand: YINGDA TECHNOLOGY LIMITED
SKU: MTP-MTP 24
Price: 49.20 USD
Availability: InStock

Nama merek:	YINGDA
Nomor Model:	MTP-MTP 24
MOQ:	100 pcs
harga:	0.2USD-100USD
Waktu Pengiriman:	7days after payment
Ketentuan Pembayaran:	T/T or western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Place of Origin:

china

Sertifikasi:

ISO SGS ROHS

Industry Type:

Data center FTTX

Application:

FTTX PON CATV

Product name:

singlemode multimode OM3 OM4 12core MTP MPO patch cord

Insertion loss:

Normal <0.7dB,Elite loss <0.35dB

Nominal outer diameter:

0.9mm 2.0mm 3.0mm 5.0mm round cable

Length:

0.5m 1m 2m 5m customized

Packaging Details:

1pc/ box,200pcs/carton box

Supply Ability:

10,000 pcs per month

Deskripsi Produk

MPO patch cord MPO-LC MPO/MTP to 6 x LC UPC Duplex 12 Fibers OM4 MM Type A Breakout Patch Cord 5 meter 10 meter

MPO cable assemblies are with 12 core MPO connector female to female. cable type OM4, the cable is widely used for cable expanding in the data center.

MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.

These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

Features

12 core cable connection
OM3 fiber optic cable
Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement
Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy for storage and cable install
Use dustproof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage

Specification

Model		SM	MM
Connector A:MPO/MTP
Connector Fiber Count		8,12,24,48 Core
Polish		PC,APC	PC
Insertion Loss	Standard	≤0.70dB	≤0.50dB
	Elite Low Loss	≤0.35dB	≤0.30dB
Return Loss		PC≥50dB,APC≥60dB	≥30dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm
Connector B:LC,LC Uniboot,SC,FC,ST
Polish		PC,APC	PC
Insertion Loss		≤0.2dB	≤0.2dB
Return Loss		PC≥50dB,APC≥60dB	≥35dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm

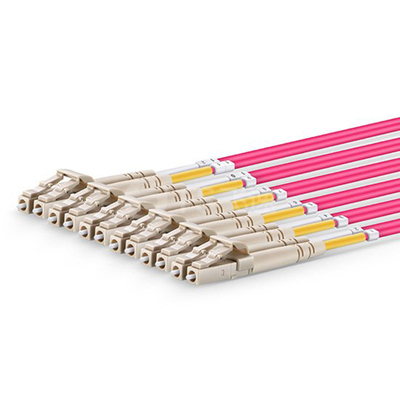

MPO patch cord MPO-LC MPO/MTP to 6 x LC UPC Duplex 12 Fibers OM4 MM Type A Breakout Patch Cord 5 meter 10 meter 0

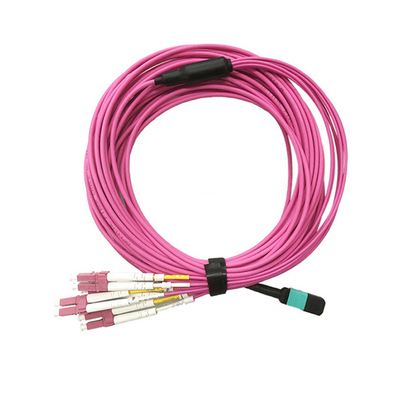

MPO patch cord MPO-LC MPO/MTP to 6 x LC UPC Duplex 12 Fibers OM4 MM Type A Breakout Patch Cord 5 meter 10 meter 1

Product Packaging:

The MTP MPO Cable will be packed in a individual bag.
The bags will be labeled with the product name, simple description, test report

YINGDA's MPO Patch Cable Production Line:

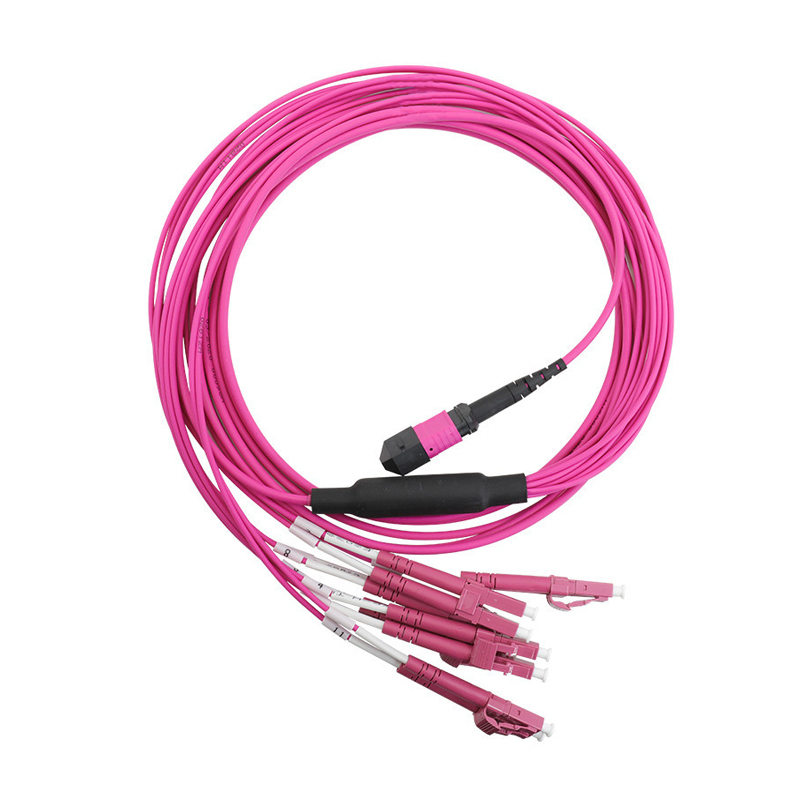

MPO patch cord MPO-LC MPO/MTP to 6 x LC UPC Duplex 12 Fibers OM4 MM Type A Breakout Patch Cord 5 meter 10 meter 2

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is YINGDA. or OEM your brand.

Q: What certifications does this product have?

A: This product is certified by ISO, SGS, and ROHS.

Q: Where is this product made?

A: This product is made in China.

Q: What is the minimum order quantity for this product?

A: Normal model no MOQ, if need customized MOQ is 200pcs

Q: What are the payment terms for this product?

A: The payment terms for this product are T/T or Western Union.

Q: What is the supply ability of this product?

A: The supply ability of this product is 10,000 pieces per month.

Q: What is the delivery time for this product?

A: The delivery time for this product is 7 days after payment.

Q: How is this product packaged?

A: This product is packaged with 1 piece per bag, and 200 pieces per carton box.

Q: Is the price negotiable?

A: Yes, the price for this product is negotiable. Different require and qty, price will be different.
