Harga yang bagus on line

rincian produk

Created with Pixso. Rumah Created with Pixso. Produk Created with Pixso.
Serat Optik PLC Splitter
Created with Pixso. MPO MTP Connector Fiber Optic Splitter FTTH 8PCS 1x8 2.0mm ABS Cassette Multimode OM3 PLC Splitter 1M
Nama
  • Nama
  • Nama
  • Nama
  • Nama
  • Nama

MPO MTP Connector Fiber Optic Splitter FTTH 8PCS 1x8 2.0mm ABS Cassette Multimode OM3 PLC Splitter 1M

Nama merek: YINGDA
Nomor Model: 8x1: 8 plc splitter abs
MOQ: 50
harga: $8.50-125
Waktu Pengiriman: 5-8 hari kerja
Ketentuan Pembayaran: T/T, L/C, Western Union
Informasi Rinci
Deskripsi Produk
Informasi Rinci
Tempat asal:
CINA
Sertifikasi:
CE,ISO
Ukuran pengemasan:
100*80*18mm
Panjang kuncir:
1m, 1,5m atau disesuaikan
Panjang Gelombang Operasi:
1260 ~ 1650nm
Aplikasi:
Ftth, pon, catv, fttx, lan, wan, peralatan uji
Kehilangan kembali:
> 50db
Jenis:
pemisah serat
Model:
1x8 plc splitter mpo
IP Grade:
IP55
Mengambil:
Serat ke rumah
Warna kuncir:
Kuning
Kemasan rincian:
Kotak individual atau sesuai permintaan pelanggan
Menyediakan kemampuan:
50000Set per bulan
Deskripsi Produk

 MPO MTP Connector Fiber Optic Splitter FTTH 8PCS 1x8  2.0mm ABS Cassette Multimode OM3 PLC Splitter 1M


The ABS cassette fiber optic PLC splitter is named so because it comes pre-loaded in a compact cassette module, which simplifies installation and improves overall optical cable management. It typically features one input port and multiple output ports, allowing it to split a single optical fiber signal into several channels. The cassette design of the optical PLC splitter offers space efficiency, making it ideal for installations with limited cabinet space. It neatly fits into the cassette slot, reducing clutter and enabling easy maintenance and future expansion


Sales points:

  • 1×8 MPO PLC Splitter OM3
  • Input 8 fiber MPO 2mm pigtails yellow
  • Output 8 pcs 8 fiber MPO 2mm pigtails yellow
  • ABS Module, Size 100*80*18mm



Features

1.Low Insertion loss and Low PDL

2.Uniform power splitting

3.High reliability

4.Excellent environmental stability

5.Compact size and various package




Specification for ABS 1x8 Optical Splitter

Type
1x8
Fiber Type
Singlemode G657A2
Connector Type
MPO/APC or MTP/APC
SC/APC,SC/UPC,LC/APC,LC/UPC
Operating Wavelength
1260nm ~ 1650nm
Insertion Loss(dB)
Typical
10.5
Maximum
10.7
Loss Uniformity(dB)
0.8
Polariation Dependent Loss(dB)
0.3
Directivity(dB) Mini
50
Return Loss(dB) Mini
50
OperatingTemperature(℃)
-40 to +85
Storage Temperature(℃)
-40 to +85
Input/ Out Fiber Length
Customer requirements
Input/output cable diameter
2.0mm  loose tube
Packing way
ABS Box (100*80*18mm)

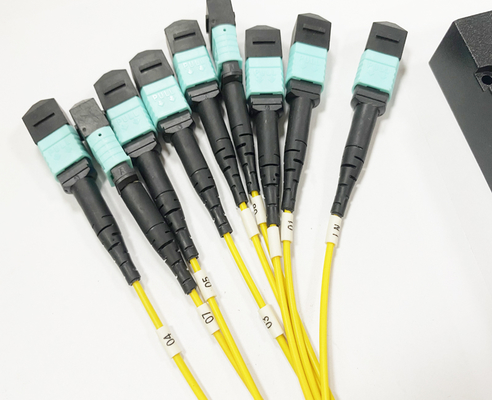

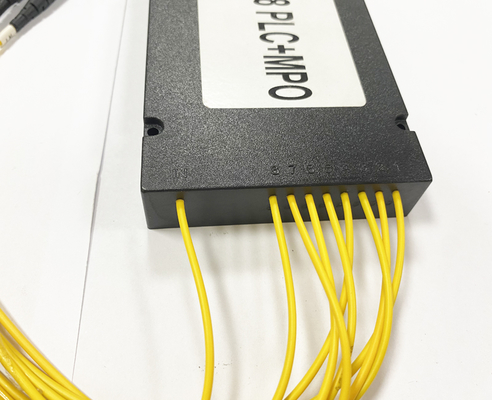

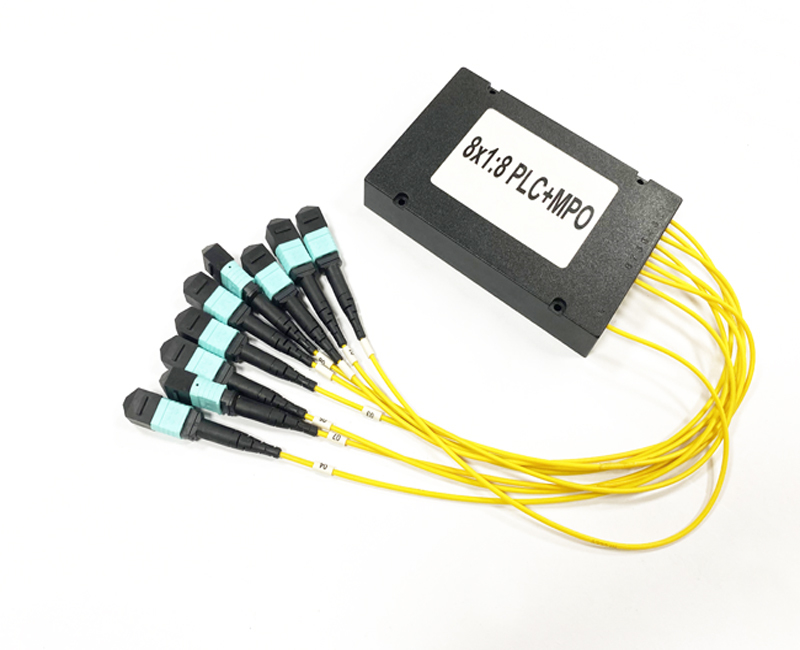

Actual Pictures:

MPO MTP Connector Fiber Optic Splitter FTTH 8PCS 1x8 2.0mm ABS Cassette Multimode OM3 PLC Splitter 1M 0 MPO MTP Connector Fiber Optic Splitter FTTH 8PCS 1x8 2.0mm ABS Cassette Multimode OM3 PLC Splitter 1M 1
