New Design FTTH 2 Port Fiber Termination Box IP65 FTTH Splitter Box Support Storage Cable

Name: New Design FTTH 2 Port Fiber Termination Box IP65 FTTH Splitter Box Support Storage Cable
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FTB008
Price: 2.18 USD
Availability: InStock

Nama merek:	YINGDA
Nomor Model:	FTB008
MOQ:	500 pcs
harga:	0.18USD-4.29USD
Waktu Pengiriman:	5-8 hari kerja
Ketentuan Pembayaran:	T/T, Western Union, MoneyGram, L/c

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

ISO

Bahan:

ABS+PC

Warna:

Abu-abu

Port kabel:

2in 8out

kapasitas fusi:

8 core

Splitter:

1x2,1x4,1x8 mini splitter

Konektor:

SC APC

Diameter Masukan:

12 mm

Diameter Keluaran:

2.0*3.0mm, 2.0*5.0mm Ftth Drop Cable

Fitur:

laser mark, OEM, 2 tutup yang bisa dilepas

Aplikasi:

Pemasangan dinding dalam ruangan

Kemasan rincian:

1 pc/box, 60pcs/carton box

Deskripsi Produk

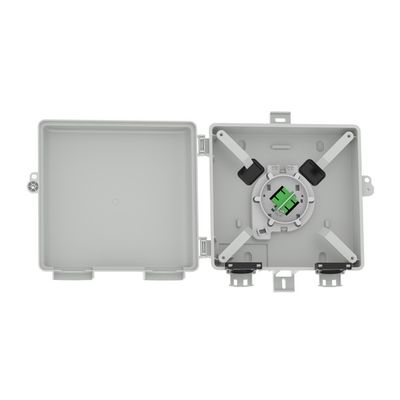

New Design FTTH 2 Port Fiber Termination Box IP65 FTTH Splitter Box Support Storage Cable

FAT-506F series indoor fiber termiantion boxes are designed and manufactured to endure harsh environmental conditions. Our fiber termination boxes are specially built to accommodate various amounts of pre-connectorised connectors for your fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), or fiber-to-the-curb (FTTC) project. And the pre-connectorised connectors are easy to be connected by the drop cables. It is suitable for wall mounting.

2,Specification:

1) Water-proof design with IP65 Protection grade.

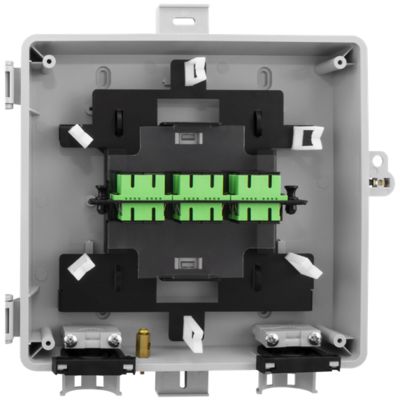

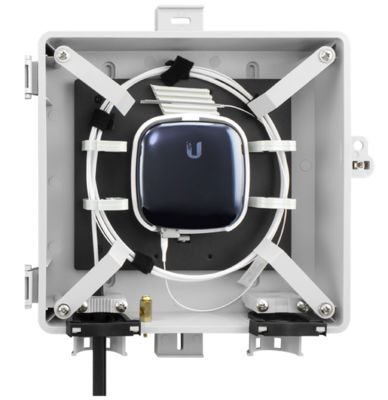

2) Integrated with splice cassette and cable management system.

3) Manage fibers in a reasonable fiber radius condition.

4) Fiber bend radius control more than 35mm.

5) 1 uncut cable port for feeder cables.

3,Applications

1) FTTH access network

2) Telecommunication network

3) CATV networks

4) Data communications network

5) Local area networks

Specification:

Model	FAT-506F

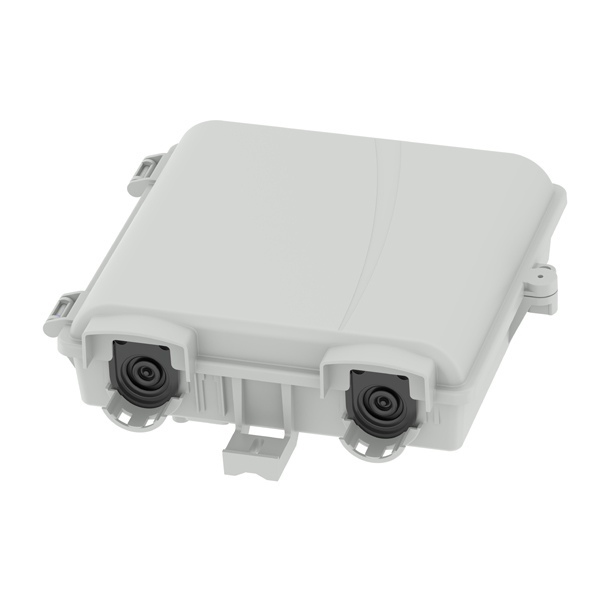

Size (Pic 1)	H×W×D = 232×224×74 (MM)
Material	PC+ABS
Color	Light Gray
Adapter Type	1SC Simplex or duplex
Cable Port	2 Pcs
Installation Method	Wall Mounted

Standard package:

The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.

Cable nylon ties
Heat shrinkable tube
Wall mount expansion screws
Sealing of inputs or outputs
User manual
Adapters or plc splitter
