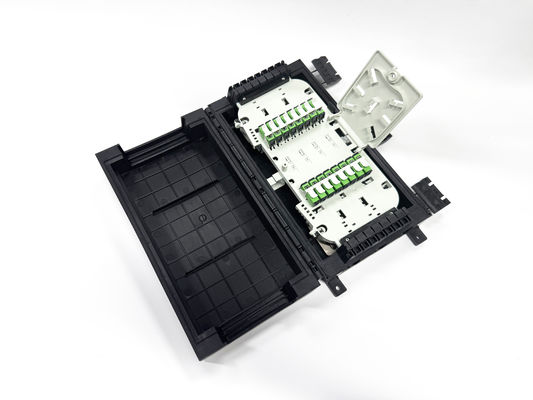

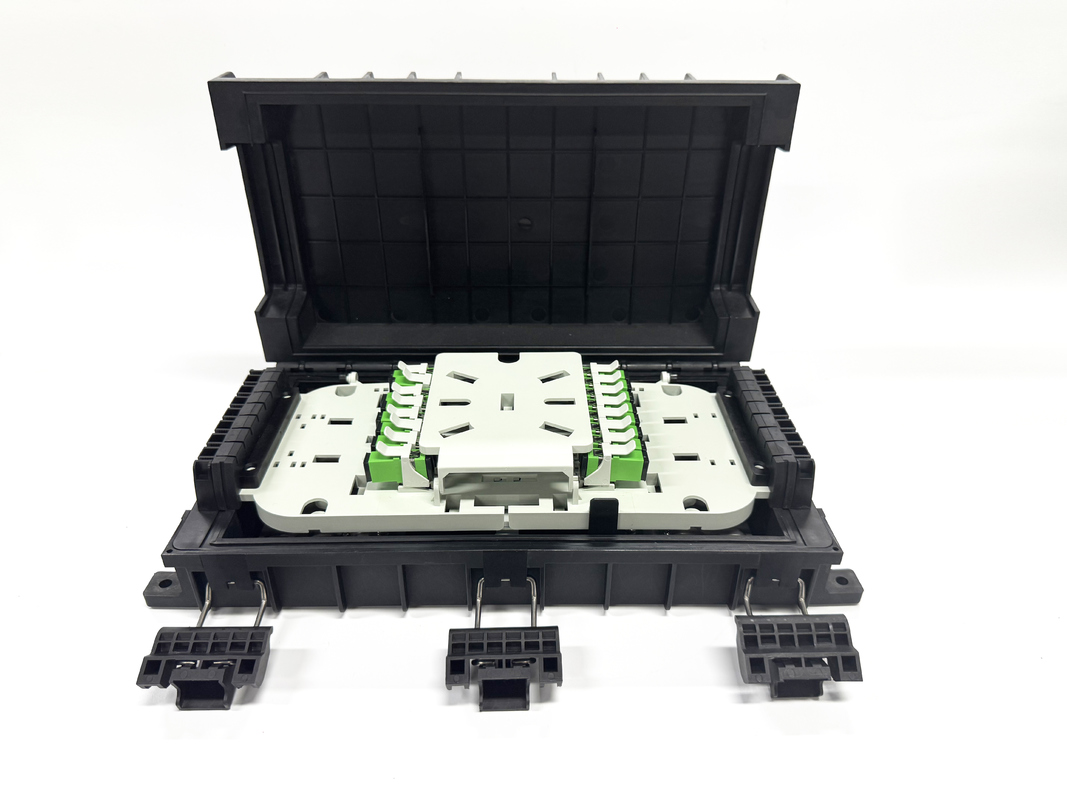

Fiber 1:16 PLC splitter Box Outdoor Fiber Optic Distribution Enclosure Mini FTTH Termination Box cajas nap box IP65

Fiber 1:16 PLC splitter Box Outdoor Fiber Optic Distribution Enclosure Mini FTTH Termination Box cajas nap box IP65

Features

• Advanced internal structure design
• Easy to re-enter, it never requires re-entry tool it
• The closure is spacious enough for winding and storing fibers
• Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN LOCK and its opening angle is about 90°
• The curved diameter meets with international standard
• Easy and fast to increase and reduce FOSTs
• Straight-through for uncutting and branching for cutting the fiber

Application

• Suitable for bunchy & ribbon fibers
• Aerial, underground, wall-mounting, hand hole-mounting
• Pole-mounting and duct-mounting

GJS fiber optic splice enclosures are widely used in all kinds of fiber optic networks for cable distribution, fusion splice and connection, it can use unuct cable go through the box directly, and large capacity application.

-------------------------------------------------------------------------------------------------------------------------------------------------------

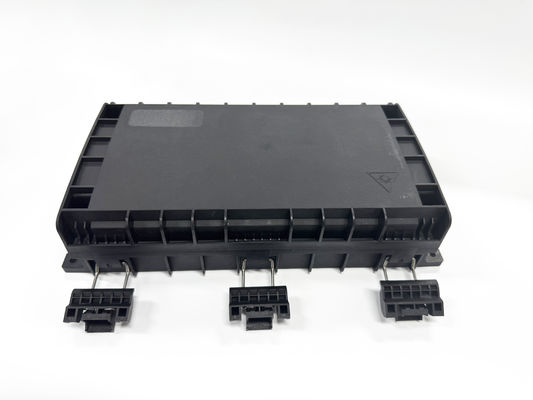

This splice enclosure is locked by 4 brackets, after insert will lock with screws. If need to open, should with hammer, which ensure good sealing  performance even in underground buried application.

-------------------------------------------------------------------------------------------------------------------------------------------------------

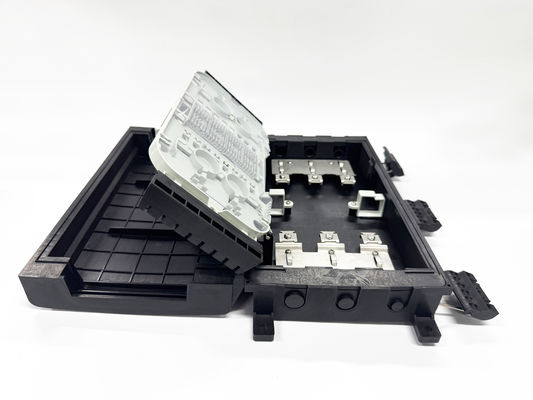

Total 6 round ports for feeder cable in and out, 2 ports are 8-16mm, 2 ports are 8-20mm, 2 ports are 8-23mm diameter, which meet all kinds of cable requirments and distribution. All cables ports with rubber seal and plug fitting, after cable enter, there will be press board with cable fixtures and grounding device for underground use.

-------------------------------------------------------------------------------------------------------------------------------------------------------

GJS-16 Horizontal splice closure maximum can install 6pcs 24cores fusion trays, if ribbon can use 288cores optical fiber cable. This fiber optic splice tray is overlap with grommets itself and velcro tape to fix it in place, keep it in good condition during long time transportation.

-------------------------------------------------------------------------------------------------------------------------------------------------------

Standard accessory

Special plastic wrench, hexagon wrench, nylon ties, heat shrink protection tubes, hanging hook, labeling paper, insulation tape, seal tape, etc.

Optional accessory

Air valve, earthing wire, buffer tube, pole mount kits, wall mount kits, etc.
