Fiber Optic Equipment 24 Core Fiber Splice Tray and Splice Box Splitter Module for Outdoor FTTH Cabinet

Name: Fiber Optic Equipment 24 Core Fiber Splice Tray and Splice Box Splitter Module for Outdoor FTTH Cabinet
Brand: YINGDA TECHNOLOGY LIMITED
SKU: Baki Sambungan 24 inti
Price: 2.10 USD
Availability: InStock

Nama merek:	YINGDA
Nomor Model:	Baki Sambungan 24 inti
MOQ:	100 PC
harga:	1.1USD-4.58USD
Waktu Pengiriman:	5-8 hari setelah pembayaran

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

ISO SGS ROHS

Ukuran:

230*335*25mm

Core:

24 serat

Konektor:

LC/UPC Duplex

Tipe serat:

Mode tunggal G657a1

Warna rak:

Putih

Bahan:

Abs

Panjang gelombang:

1260 - 1650nm

Aplikasi:

FTTH FTTB FTTX Network

Kemasan rincian:

1 buah/kotak, 10 buah/kotak karton

Menyediakan kemampuan:

10.000 PC per bulan

Deskripsi Produk

Fiber Optic Equipment 24 Core Fiber Splice Tray and Splice Box Splitter Module for Outdoor FTTH Cabinet

YINGDA splice trays use proven designs and fiber organization technology to provide optimum physical protection for fusion and mechanical splicing methods. The trays are engineered for use with both loose tube and tight buffered optical cable designs. Their generous size prevents induced attenuation due to fiber bending

The plastic tray consists of an injection-molded, plastic base that incorporates features to retain fiber loops and control the bend radius. The plastic cover prevents the dust from outside and protects fiber very well.

Each mechanical and heat-shrink splice organizer provides a positive holding action for maximum splice protection during
installation and use.

Designed for use with Huiyuan Distribution Frame Systems interconnection hardware and splice closures, these splice trays are an integral part of the complete YINGDA splicing system.

Feature

For use with indoor or outdoor splice hardware
Protects and manages fibers and fiber splices
Used at field splice, transition splice and end splice locations

Application

Fiber optical network system
CATV system
PON system
FTTH system

Specification

Item no.	Dimension(mm)	Capacity(core)	Material	Temperature(℃)
YD-12-SP01	141x10x133	12	ABS	-40-+80
YD-12-SP02	160x10x135	24	ABS	-40-+80
YD-12-SP03	135x8.5x110	12	ABS	-40-+80
YD-12-SP04	163x10x145	12	ABS	-40-+80
YD-12-SP05	170x10x110	12	ABS	-40-+80
YD-12-SP06	175x14x140	12	ABS	-40-+80
YD-12-SP07	158x16x95	24	ABS	-40-+80
YD-12-SP08	153×91×10	12	ABS	-40-+80
YD-12-SP09	163×98×10	12	ABS	-40-+80
YD-12-SP10	158×85×10	12	ABS	-40-+80
YD-12-SP11	172×110×10	24	ABS	-40-+80

Fiber Optic Equipment 24 Core Fiber Splice Tray and Splice Box Splitter Module for Outdoor FTTH Cabinet 0

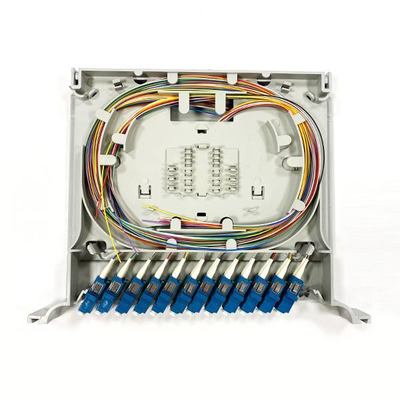

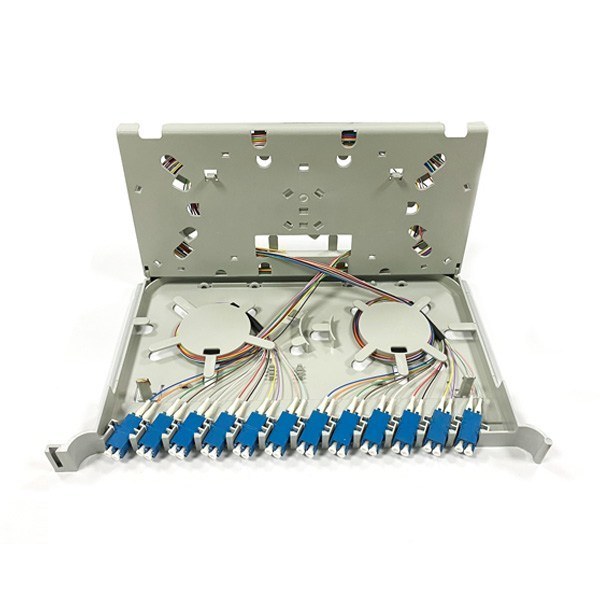

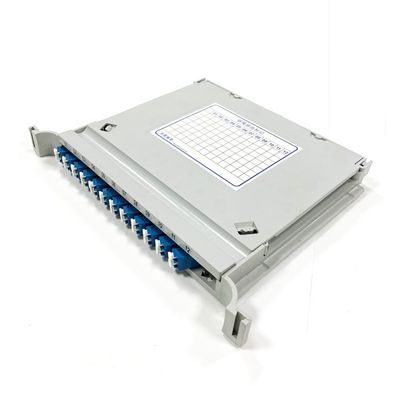

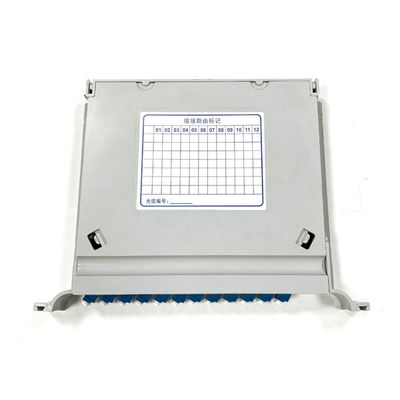

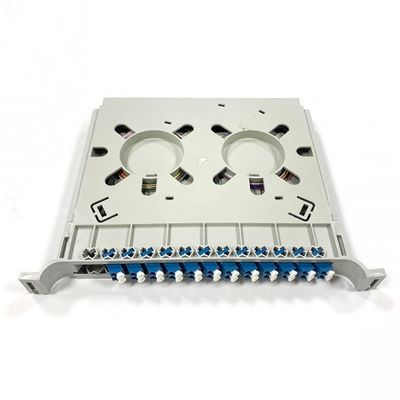

Load with 12pcs LC UPC duplex adapter, also can be support SC ST FC connector.
