FTTH Fiber Optic Patchcord 1 Core SC / APC - SC / APCSM 657A Simplex 40M FRP

Nama merek: YINGDA
Nomor Model: FHPC-SCA-01-F8F-A1W-40
MOQ: 100PCS
harga: 0.36USD-30USD
Informasi Rinci
Tempat asal:
Cina
Sertifikasi:
ISO,SGS,ROHS
Application:
FTTH indoor wiring
Connector:
SC/APC
fiber count:
1core
fiber type:
G657A1 or G657A2
Cable sheath:
LSZH
Cable length:
40 meters
Cable color:
white
insertion loss:
<0.3dB
Cable strength member:
FRP (Fiber Reinforced Polymer/Plastic)
drop cable diameter:
2*3.0mm
Nama produk:
kabel serat,kabel patch serat optik,kabel patch serat optik,jumper serat optik,kabel jumper serat op
Packaging Details:
1 piece / bag
Menyoroti:

fiber optic patch cable

,

fiber optic jumper

Deskripsi Produk



FTTH Fiber Optic Patchcord 1 Core SC / APC - SC / APCSM 657A Simplex 40M FRP



Access network fiber optic drop cable (indoor wiring) is to put fiber optic unit in the center, on both sides is

two parallel nonmetallic reinforcing element (FRP) or metallic strength member,finally extrusion black or

color polyvinyl chloride (PVC) or low smoke halogen-free flame retardant (LSZH) sheath.



Application

  • Used as access building cable
  • Used in indoor cabling especially used for FTTH





Implementation standards

  • YD/T1997-2009 access network butterfly optical drop cable



Specification

Item

SC FC ST LC drop cable PATCH CORD

IL(dB)

≤0.2

Max IL(dB)

≤0.3

Working temperature(°C)

-40~+80

Temperature cycle(°C)

-40~+75

Storage temperature(°C)

-40~+85

Interchangeability (dB)

≤0.2

Plug times

1000 times

Repeat ability(dB)

≤0.1

RL (dB)

≥45 ≥50 ≥60

Immersion

Temperature 43°C,

PH5.5 for 7days



Delivery Length:

1-300METERS / PACK



Order information



FHPC-XXX-XX-XXX-XXX-XX

        1 - 2  - 3 4 - 5 6 - 7



FHPC

Connector

type



Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2



W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...



More Photos

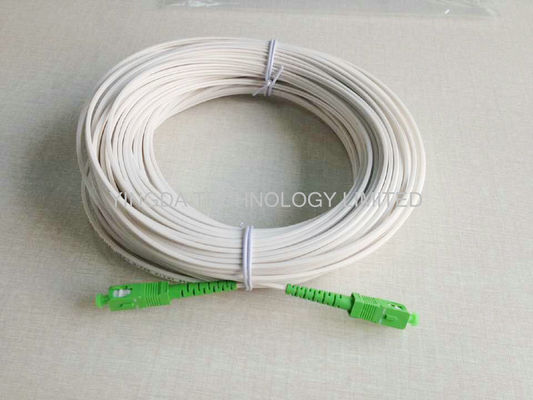

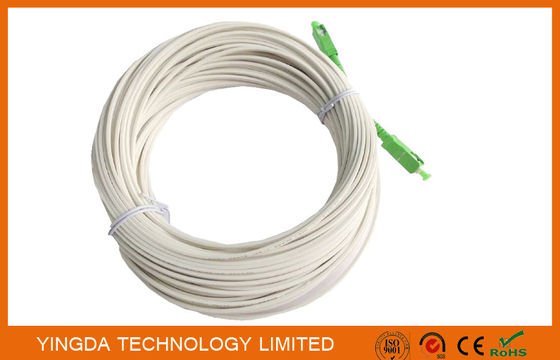

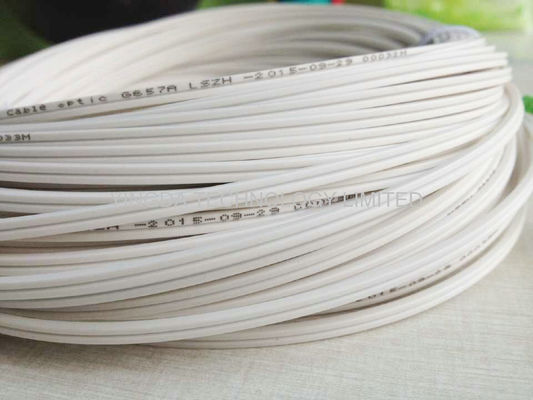

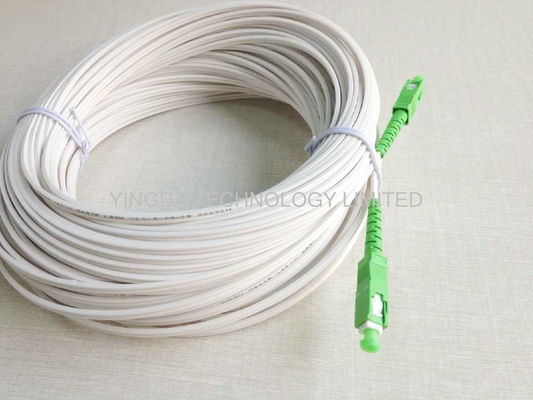

FTTH Fiber Optic Patchcord 1 Core SC / APC - SC / APCSM 657A Simplex 40M FRP 0FTTH Fiber Optic Patchcord 1 Core SC / APC - SC / APCSM 657A Simplex 40M FRP 1FTTH Fiber Optic Patchcord 1 Core SC / APC - SC / APCSM 657A Simplex 40M FRP 2
