serat optik kabel patch
Created with Pixso. FTTH Flat SC - SC Patch Cord Single Mode Fibre Patch Leads Simplex 1m White G657A1

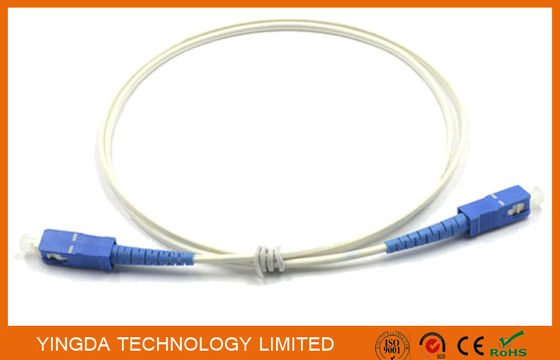

FTTH Flat SC - SC Patch Cord Single Mode Fibre Patch Leads Simplex 1m White G657A1

Nama merek: YINGDA
Nomor Model: FHPC-SCU-01-F8F-A1W-01
MOQ: 100PCS
harga: 0.36USD-30USD
Informasi Rinci
Tempat asal:
Cina
Sertifikasi:
ISO,SGS,ROHS
Application:
FTTH indoor wiring
Connector:
SC / UPC
fiber count:
1 core
fiber type:
G657A1 or G657A2
Cable sheath:
LSZH
Cable length:
1 meter
Cable color:
white
insertion loss:
<0.3dB
Cable strength member:
FRP (Fiber Reinforced Polymer/Plastic)
drop cable diameter:
2*3.0mm
Nama produk:
kabel serat,kabel patch serat optik,kabel patch serat optik,jumper serat optik,kabel jumper serat op
Packaging Details:
1 piece / bag
Menyoroti:

fiber optic patch cable

,

fiber optic jumper

Deskripsi Produk



FTTH Flat SC - SC Patch Cord Single Mode Fibre Patch Leads Simplex 1m White G657A1





FTTH  SC/PC patch cord is FTTH cable terminated bothh end with SC connector. Also FC/ST/LC connector can be choosed as customer request.  Fiber is avaibale with G652D or G657A. Cable Jacket can be white or balck.





Features

  1. LC SC ST FC connectors available
  2. FTTH fast connector can be used.
  3. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
  4. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
  5. Simple structure, light weight and high practicability;
  6. Novel flute design, easily strip and splice, simplify the installation and maintenance;
  7. Low smoke, zero halogen and flame retardant sheath.



Application

  • Used as access building cable
  • Used in indoor cabling especially used for FTTH



Specification

Mode

SM

MM

Polish

UPC

APC

PC

Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

≤0.25dB

Return Loss

≥50dB

≥65dB

≥35dB

Interchangeability

≤0.2dB

Repeatability

≤0.1dB

Durability

≤0.2dB (1000 times mating)

Tensile Strengh

> 10kg

Temperature

≤0.2dB (-40+85 sustain 100 hours)

Humidity

≤0.2dB  (+25+65 93 R.H.100 hours)



Delivery Length:

1-300METERS / PACK



Order information



FHPC-XXX-XX-XXX-XXX-XX

        1 - 2  - 3 4 - 5 6 - 7



FHPC

Connector

type



Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2



W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...

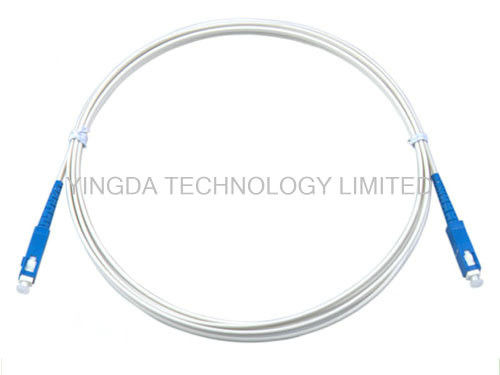

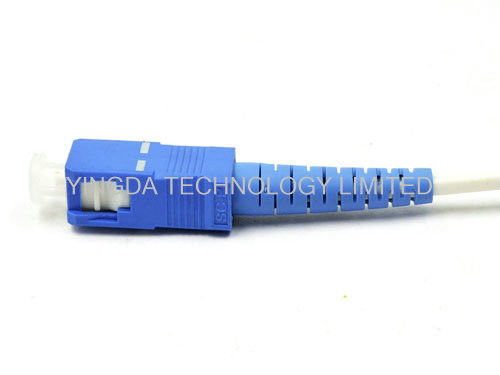

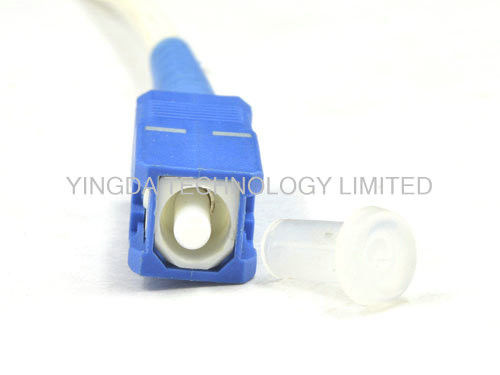

More Photos



FTTH Flat SC - SC Patch Cord Single Mode Fibre Patch Leads Simplex 1m White G657A1 0FTTH Flat SC - SC Patch Cord Single Mode Fibre Patch Leads Simplex 1m White G657A1 1FTTH Flat SC - SC Patch Cord Single Mode Fibre Patch Leads Simplex 1m White G657A1 2
