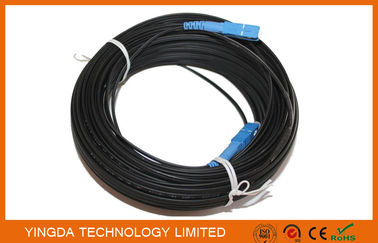

SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper

Produk

Fiber Optic sambatan penutupan

Modul SFP

Hubungi Kami

sales@yingdapc.cn

+86 18688982406

Hubungi Sekarang

SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper

MOQ:	100PCS
harga:	0.36USD-30USD
Kemasan standar:	1 piece / bag

Informasi Rinci

Deskripsi Produk

Peringkat & Ulasan

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

ISO,SGS,ROHS

Model Number

FHPC-SCU-01-F8F-A1B-200

Application:

FTTH indoor wiring

Connector:

SC / UPC

fiber count:

1 core

fiber type:

G657A1

Cable sheath:

Cable length:

200 meters

Cable color:

black / white

insertion loss:

< 0.3dB

Cable strength member:

drop cable diameter:

2*3.0mm

Nama produk:

kabel serat,kabel patch serat optik,kabel patch serat optik,jumper serat optik,kabel jumper serat op

Menyoroti:

fiber optic patch cable

fiber optic jumper

Deskripsi Produk

SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper

Feature:

No special assembling tool.
No epoxy required
Easy for assembling with mechanical splice and no polishing
Precision mechanical alignment insures low loss
Fiber can be re-seated

Applications

CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)

Indoor cable :

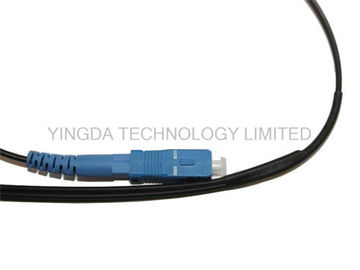

SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper 0
Outdoor cable :

Fiber Parameters

No.	Items		Unit	Specification	Specification
No.	Items		Unit	G.652D	G.657A1
1	Mode Field Diameter	1310nm		9.2±0.4	9.0±0.4
1	Mode Field Diameter	1550nm		10.4±0.5	10.1±0.5
2	Cladding Diameter		μm	124.8±0.7	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5	≤0.5
5	Coating Diameter		μm	245±5	245±5
6	Coating Non-Circularity		%	≤6.0	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.4	≤0.35
9	Attenuation(max.)	1550nm	dB/km	≤0.3	≤0.21
10	Macro-Bending Loss	1turn×10mm radius @1550nm	dB	/	≤0.75
10	Macro-Bending Loss	1turn×10mm radius @1625nm	dB	/	≤1.5

Cable Parameters

Items		Specifications
Fiber Count		2
Colored Coating Fiber	Dimension	250±15μm
Colored Coating Fiber	Color	white
	Dimension	(2.0±0.1)mm×(5.1±0.1)mm
Jacket	Material	LSZH
	Color	Black
Strength Member		FRP& (Steel Wire)

Patch cord parameters

Item	Singlemode	Multimode
Insertion loss	<=0.3dB	<=0.3dB
Return loss	>=50dB	>=40dB
Operating temperature	-40 ~+85 °C
Ceramic ferrule spec	125.5um concentricity deviation<=1μm		127um concentricity deviation<=3μm
	9/125 μm		50/125 μm, 62.5/125μm

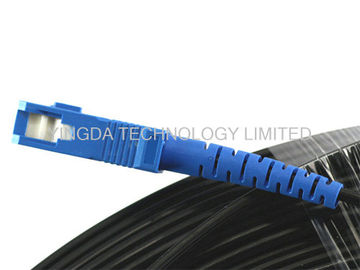

SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper 2
Order information

FHPC-XXX-XX-XXX-XXX-XX
1 - 2 - 3 4 - 5 6 - 7

FHPC	Connector type	Fiber count	Cable type	Strength member	Fiber type	Cable color	Cable Length
FH=ftth	1	2	3	4	5	6	7
Pc=patch cord	SCU=SC/UPC SCA=SC/APC LCU=LC/UPC ....	01=1core 02=2core 04=4core ....	F8=Figure 8 SF=self-supporting	F=FRP S=steel	5D=G.652D A1=G.657A1 A2=G.657A2	W=white B=Black Y=yellow	01=1m 02=2m ... 10=10m ...

Mass Production:

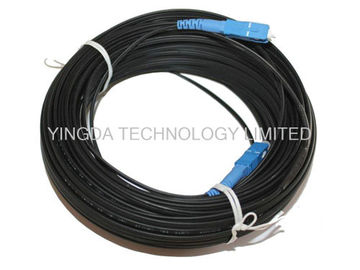

SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper 3
