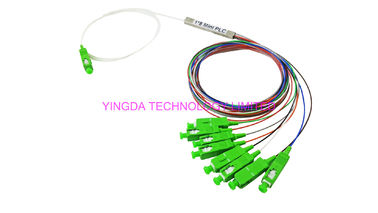

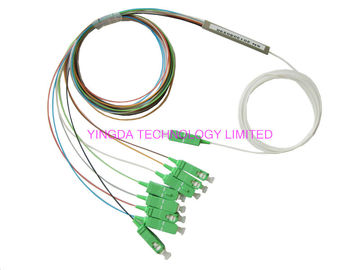

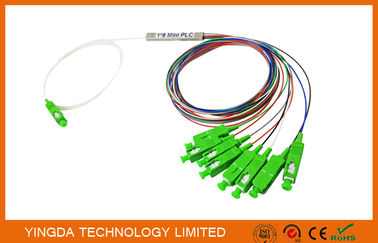

1x8 SC/APC Single mode OS2 9/125 Fiber Optic PLC Splitter FTTH Splitter
| Tempat asal | Cina |
|---|---|
| Nama merek | YINGDA |
| Sertifikasi | ISO |
| Nomor model | 1x8 PLC splitter |
| Kuantitas min Order | 100 pcs |
| Harga | negotiable |
| Kemasan rincian | 1pc/ box,80pcs/carton box |
| Waktu pengiriman | 5-8days after payment |
| Syarat-syarat pembayaran | Western Union, T/T, MoneyGram |
| Menyediakan kemampuan | 10,000 pcs per month |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| split ratio | 1:8 splitter module | fiber type | SMF-28e G657A1 |
|---|---|---|---|
| insertion loss | 10.2dB | connector | SC/APC |
| wavelength | 1260 - 1650 nm | PDL(Max.) | 0.3dB |
| Standard | Telcordia GR-1221 and GR-1209 | tube dimension | 60*7*4mm |
| input and output length | 1meter | cable type | tight buffer |
| cable color | white | cable diameter | 0.9mm |
| Cahaya Tinggi | Fiber Optic Splitter,PLC Splitter |
||
Deskripsi Produk
1x8 SC/APC Single mode OS2 9/125 Fiber Optic PLC Splitter, FTTH Splitter 1:8 1260 nm to 1650nm
PLC (Planar Lightwave Circuit) optical splitter for divided equally or converge optical signal. The design of planar waveguide technology provided a low-cost optical splitter solution with a small package and high reliability features. 1xN PLC optical splitter divided an optical input evenly into a plurality of light output through precise calibration process.
YINGDA PLC optical splitter with excellent optical properties, as well as high stability and high reliability, can meet a variety of application requirements, YINGDA supply various 1xN and 2xN PLC optical splitter, including 1x2, 1x4,1x8, 1x16,1x32, 1x64 bare fiber type PLC optical splitter and 2x2,2x4,2x8,2x16,2x32,2x64 PLC optical bare fiber type splitter. And there are LC, SC, FC, ST and other connectors and UPC, APC and other end faces to choose from.
Features
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
High Reliability and Stability
Stability Telecordia GR-1221 and GR-1209
Components through TLC-Certified,Conform to YD1117-2001
Application
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Telecommunication Networks
Specification
| Split ratio | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Operating Wavelength(nm) | 1260-1620nm | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB)P Grade | 3.8 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 | 23.8 |
| Insertion Loss (dB) S Grade | 4 | 7.3 | 10.5 | 13.7 | 16.9 | 21 | 24.2 |
| Loss Uniformity(dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Return Loss (dB) | 55 | ||||||
| Directivity (dB) | 55 | ||||||
| Wavelength Dependent | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Loss(dB) | |||||||
| Temperature Stability(-40- +85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature | -40- +85℃ | ||||||
| Storage Temperature | -40- +85℃ | ||||||
More pictures

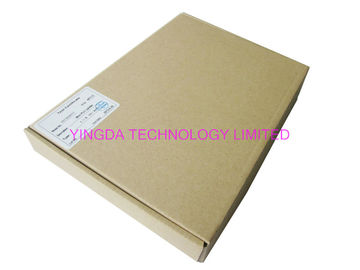

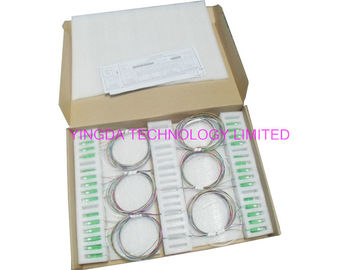

all plc splitter is pack by carton box with foam. Inside with adhesive tape to fix and cable ties., all connectors will be in place after long transportation, good protection to fibers, and save freight cost.
all splitter and connectors with be test by speical machines and go through high and low temperature cycles during production. And each splitter will deliver with test reports and 100% test in factory, if fail, will re-make till test ok.
All test report is clear for each connectors at input and outputs for all datas requested.
and the cable input output color can be customized, and the cable diameter, cable length, connector types also can be cusomized.
Order information
| Type | Package size | Port | Fiber Type | Input/output | Fiber length | connector |
| PLCS | BF=bare fiber FO=fan-out MD=module MB=metal box |
01X02 01x04 01x08 …… 02x16 02x32 02x64 |
0=G652D 1=G657A C=Customize |
1=bare fiber 2=900µm tight buffered 3=2.0mm Loose tube 4=3.0mm Loose tube |
1=1m 2=1.5m C=Customize |
0=no connector 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST/APC 6=ST/PC 7=LC/AP 8=LC/PC C=customize |
Some Views of PLC Production Procedure
