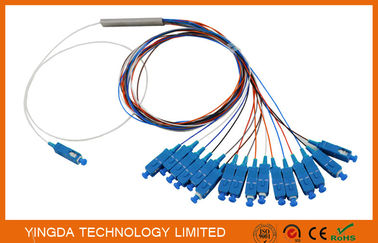

 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector

  •  0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector
  •  0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector
  •  0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector
  •  0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector
  •  0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector
Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO
Nomor model 1*16 mini plc splitter
Kuantitas min Order 100 pcs
Harga negotiable
Kemasan rincian 2pc/ box, 20pcs/carton box
Waktu pengiriman 5-8days after payment
Menyediakan kemampuan 10,000 pcs per month

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
split ratio 1:16 blockless splitter connector SC UPC
fiber type corning fiber SMF -28e G657A1 insertion loss 13.6dB
Uniformity (Max.) 1.4dB wavelength 1260 - 1650 nm
PDL(Max.) 0.3dB Standard Telcordia GR-1221 and GR-1209
tube dimension 60*12*4mm cable diameter 0.9mm
cable color input blue, output: white
Cahaya Tinggi

Fiber Optic Splitter

,

PLC Splitter
Tinggalkan pesan
Deskripsi Produk

0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector



PLC stands for Planar Lightwave Circuit. PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.



PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.

Installation is simple using a variety of connector types or fusion splicing.



Features:

• Singlemode PLC Splitters in a variety of package types and configurations

• Optical performance 100% factory tested

• UPC, and APC polish types available for connectorized products

• Low Insertion Loss, Back Reflection and PDL

• Telcordia GR-CORE 1221 certified





More pictures

 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 0 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 1 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 2 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 3 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 4 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 5 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 6 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 7



Technical Specs for PLC Splitter with Connector



1xn SPLITTER

Item 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Fiber Type G.657.A
Working Wavelength 1260nm~1650nm
Standard Insertion Loss(dB) ≤4.2 ≤7.6 ≤10.7 ≤14.0 ≤17.2 ≤20.8 ≤24.0
P-Grade Insertion Loss(dB) ≤4.0 ≤7.4 ≤10.5 ≤13.8 ≤17.0 ≤20.4 ≤23.7
Uniformity(dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss(dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
Return Loss(dB) ≥50
Directivity(dB) ≥55
Operating Temp.Gange -40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.



2XN splitter



Item 2x2 2x4 2x8 2x16 2x32 2x64 2x128
Fiber Type G.657.A
Working Wavelength 1260nm~1650nm
Standard Insertion Loss(dB) ≤4.4 ≤8.0 ≤11.0 ≤14.6 ≤17.8 ≤21.0 ≤24.4
P-Grade Insertion Loss(dB) ≤4.2 ≤7.7 ≤10.8 ≤14.1 ≤17.4 ≤20.7 ≤24.0
Uniformity(dB) ≤0.8 ≤1.0 ≤1.2 ≤1.5 ≤1.8 ≤2.0 ≤3.0
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss(dB) ≤0.8 ≤1.0 ≤1.2 ≤1.5 ≤1.8 ≤2.0 ≤3.0
Return Loss(dB) ≥50
Directivity(dB) ≥55
Operating Temp.Gange -40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.







PLC PRODUCTION LINES:

 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 8 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 9 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 10 0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 11
