GPON 1/32 Mini Optical Fiber Splitter Planar Lightwave Circuit
| Tempat asal | Cina |
|---|---|
| Nama merek | YINGDA |
| Sertifikasi | ISO |
| Nomor model | 1x32 fiber optic splitter |
| Kuantitas min Order | 100 pcs |
| Harga | negotiable |
| Kemasan rincian | 1pc/ box, 20pcs/carton box |
| Waktu pengiriman | 5-8days after payment |
| Syarat-syarat pembayaran | Western Union, T/T, MoneyGram |
| Menyediakan kemampuan | 10,000 pcs per month |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| split ratio | 1x32 couplers | connector | SC |
|---|---|---|---|
| fiber type | singlemode G657A1 | insertion loss | 16.5dB |
| Uniformity (Max.) | <1.3dB | wavelength | 1260 - 1650 nm |
| PDL(Max.) | 0.3dB | Standard | Telcordia GR-1221 and GR-1209 |
| steel tube | 80×20×6mm | ||
| Cahaya Tinggi | Fiber Optic Splitter,PLC Splitter |
||
Deskripsi Produk

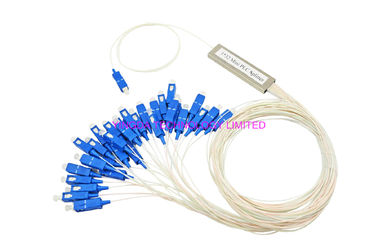

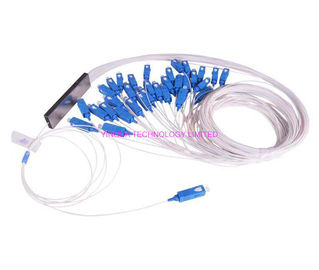

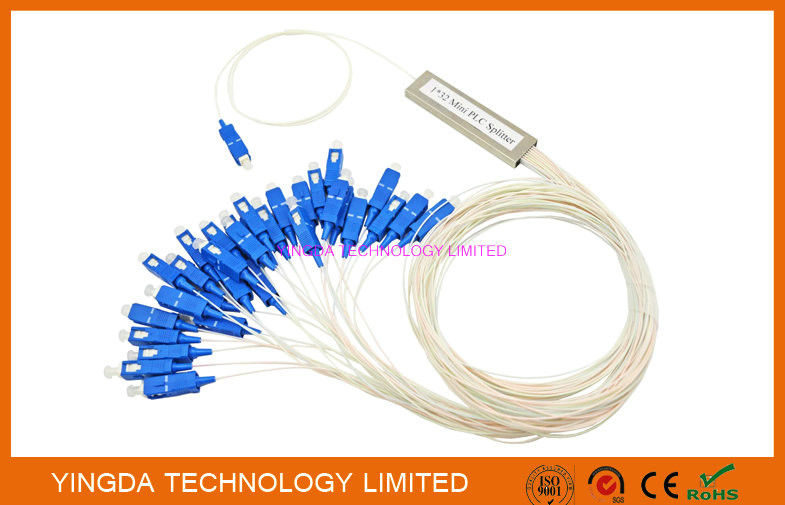

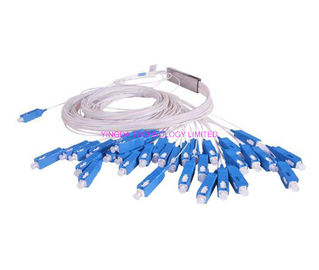

GPON 1:32 Mini Optical Fiber Splitter Planar Lightwave Circuit with SC/UPC Connector Steel Tube
YINGDA provides whole series of 1xN and 2xN splitter products .
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
All products meet GR-1209-CORE and GR-1221-CORE requirements.
Splitter Tube Internal Structures:
Features
Bend Insensitive G657A fiber
Low Insertion Loss and PDL
Telcordia GR-1209 & GR-1221-CORE Compliant
High Polarization Extinction Ratio & Excellent Uniformity
Jacketing Material Rated to -40 to +85 °C Operating Temperature
Compact package,convenient for small Application & High Density Areas
Offer Unique Designs and Configuartions & Support Industry Standard Applications
Applications
- FTTx Deployments(GPON/BPON/EPON)
- CCTV/CATV Links
- Access/Metro Networks
- Long Haul Telecommunications
1×N PLC Splitter Specifications
| Ports | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Max(P/S) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | 20.5/21.0 |
| Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| PDL (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 |
| Return Loss (dB) | Min | UPC:50 APC:55 | |||||
| Directivity (dB) | Min | 55 | |||||
| Standard Input Fiber | Bend Insensitive SM Single Fiber(ITU G.657A) | ||||||
| Standard Output Fiber | Bend Insensitive SM Ribbon Fiber(ITU G.657A) | ||||||
| Standard Output Color | Blue,Orange,Green,Brown,Grey,White,Red,Black (TIA/EIA 598-B) | ||||||
| Max.Optical Power(mw) | 300 | ||||||
| Humidity Range(rh) | 5%~85% | ||||||
| Operating Temperature(°C) | -40~+85 | ||||||
| Storage Temperature(°C) | -40~+85 | ||||||
| Connector Options | FC/SC/LC/ST/MU/E2000 | ||||||
| Packaging Options | Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount | ||||||
|
*Telcordia GR-1221-CORE&G-1209-CORE Compliant. |
|||||||
Product details
plc splitter input and output color, connectors,length can be decide by customers: white, blue, green, red..etc

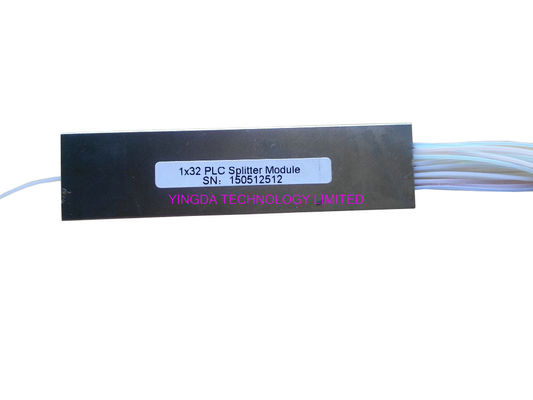

the steel tube can print a label with customer logo, part number or other important ghings.
ribbon fibers inside: 4x8fibers, input: 1 or 2 series ok, package by box, better protection for connectors and fibers.
Order information
| Type | Package size | Port | Fiber Type | Input/output | Fiber length | connector |
| PLCS | BF=bare fiber FO=fan-out MD=module MB=metal box |
01X02 01x04 01x08 …… 02x16 02x32 02x64 |
0=G652D 1=G657A C=Customize |
1=bare fiber 2=900µm tight buffered 3=2.0mm Loose tube 4=3.0mm Loose tube |
1=1m 2=1.5m C=Customize |
0=no connector |
