1/16 Fiber Optic PLC Splitter Ribbon Broadband FTTH Splitter Coupler 1 x 16

MOQ:	100 pcs
harga:	1.1USD-4.58USD
Kemasan standar:	2pc/ box, 20pcs/carton box
Delivery period:	5-8days after payment
Kapasitas Pasokan:	10,000 pcs per month

Informasi Rinci

Deskripsi Produk

Peringkat & Ulasan

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

Model Number

1x64 PLC Splitter

split ratio:

1X64 micro plc splitter

connector:

SC/APC simiplex

fiber type:

single mode G657A1

insertion loss:

20.4dB

Uniformity (Max.):

2.0dB

wavelength:

1260 - 1650 nm

PDL(Max.):

0.4dB

Standard:

Telcordia GR-1221 and GR-1209

tube dimension:

100*40*6mm

cable diameter:

0.9mm

cable color:

input white, output: colorful

Menyoroti:

fbt coupler

PLC Splitter

Deskripsi Produk

Fiber Optic Splitter PLC 1x64 Singlemode Steel Tube LSZH G657A,1:64 PLC Splitter SC Couplers
Features

Corning fiber
Bidirectional, Compact size
Low insertion loss, Low PDL and High reliability
High return loss and Good repeatability
Wide wavelength range
Excellent channel-to-channel uniformity
Telcordia GR-1221-Core Compliant
1x2 through 1x64 Configurations

Applications

LAN, WAN and Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, EPON
Fiber Optic Test Equipment
Data-base Transmit Broadband Net

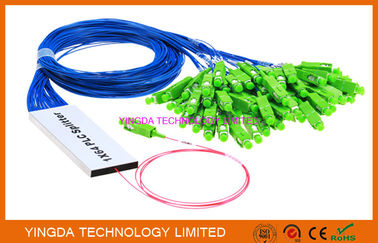

1/16 Fiber Optic PLC Splitter Ribbon Broadband FTTH Splitter Coupler 1 x 16 0
Technical Specs for PLC Splitter with Fiber Optic Connectors
1xN splitter

Item	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Fiber Type	G.657A
Working Wavelength	1260nm~1650nm
Standard Insertion Loss(dB)	≤4.2	≤7.6	≤10.7	≤14.0	≤17.2	≤20.8	≤24.0
P-Grade Insertion Loss(dB)	≤4.0	≤7.4	≤10.5	≤13.8	≤17.0	≤20.4	≤23.7
Uniformity(dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
PDL(dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss(dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss(dB)	≥50
Directivity(dB)	≥55
Operating Temp.Gange	-40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.

2xN splitter

Item	2x2	2x4	2x8	2x16	2x32	2x64	2x128
Fiber Type	G.657A
Working Wavelength	1260nm~1650nm
Standard Insertion Loss(dB)	≤4.4	≤8.0	≤11.0	≤14.6	≤17.8	≤21.0	≤24.4
P-Grade Insertion Loss(dB)	≤4.2	≤7.7	≤10.8	≤14.1	≤17.4	≤20.7	≤24.0
Uniformity(dB)	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤3.0
PDL(dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss(dB)	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤3.0
Return Loss(dB)	≥50
Directivity(dB)	≥55
Operating Temp.Gange	-40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.

Encapsulation size

Item	1×2	1×4	1×8	1×16	1×32	1×64
LengthWidthHeight(mm)	60×7×4	60×7×4	60×7×4	60×12×4	80×20×6	100×40×6
Item	2×2	2×4	2×8	2×16	2×32	2×64
LengthWidthHeight(mm)	60×7×4	60×7×4	60×7×4	80×12×4	100×20×6	100×40×6

Order information

Port	Fiber	Input Pigtail	Input Connector	Input Pigtail Length	Output Pigtail	Output Connector	OutputPigtail Length
PLC	102=1x2 104=1x4 108=1x8 116=1x16 132=1x32 164=1x64 128=1x128 204=2x4 208=2x8 216=2x16 232=2x32 264=2x64	1=G657A 2=G652D SP=Special	1=250um Bare Fiber 2=900um tight uffer 3=900um loose tube 4=2.0mm cable 5=3.0mm cable SP=Special	NE=None SU=SC/UPC SA=SC/APC LU=LC/UPC LA=LC/APC FU=FC/UPC FA=FC/APC SP=Special	0=0.5m 1=1m 2=1.5m 3=2m 4=3m SP=Special	1=250um Bare Fiber 2=900um tight uffer 3=900um loose tube 4=2.0mm cable 5=3.0mm cable SP=Special	NE=None SU=SC/UPC SA=SC/APC LU=LC/UPC LA=LC/APC FU=FC/UPC FA=FC/APC SP=Special	0=0.5m 1=1m 2=1.5m 3=2m 4=3m SP=Speci
