SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH

MOQ:	100 pcs
harga:	1.1USD-4.58USD
Kemasan standar:	2pc/ box, 20pcs/carton box
Delivery period:	5-8days after payment
Kapasitas Pasokan:	10,000 pcs per month

Informasi Rinci

Deskripsi Produk

Peringkat & Ulasan

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

Model Number

2x8 splitter

split ratio:

2x8 PLC splitter

connector:

SC/UPC coupler

fiber type:

9/125UM G657A1

insertion loss:

10.6dB

Uniformity (Max.):

1.0dB

wavelength:

1260 - 1650 nm

PDL(Max.):

0.3dB

Standard:

Telcordia GR-1221 and GR-1209

tube dimension:

4*7*60mm

cable diameter:

0.9mm

cable color:

input white, output:Blue/Orange/Green/Brown

Menyoroti:

Fiber Optic Splitter

fbt coupler

Deskripsi Produk

Fiber Optic PLC Splitter 2X8 Mini Modules 900um 9/125um SM 1Meter G657A LSZH SC/UPC Loose Tube

Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity.

Precision Micro-optics provides 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter shown below.

Features

Low insertion loss and PDL
High channel number
Compact size
High reliability
Wide operating wavelength and temperature range
Excellent channel uniformity
Conforms to Telecordia GR-1221 and GR-1209

Technical Parameters

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 0

Steel tube Dimension

Optical Performance		Unit	Specification
Insertion Loss (without Connector)	MAX	dB	10.6
Insertion Loss of Connector	MAX	dB	None
Insertion Loss of Adapter	MAX	dB	None
Uniformity Loss	MAX	dB	1.0
Polarization Dependent Loss	MAX	dB	0.3
Wavelength Bandwidth	MIN	nm	1260~1650
Return Loss (All Port)	MIN	dB	55
Directivity	MIN	dB	55
Operating Temperature	^oC	dB	-40~85

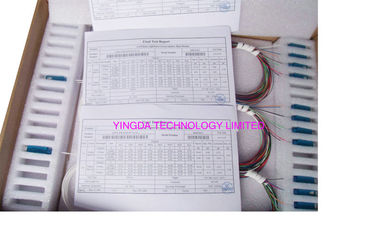

Individual Test Data Sheet Format	Hardcopy		1310, 1490, 1550nm ILUFPDL
Fiber Type	-		G657A1
Fiber Color	-		Input: Transparent Output: 2*4 Color (Blue/Orange/Green/Brown)
Fiber Color	-
Tube Type	-		Φ0.9mm, Hytrel
Tube Color	-		Input: White Output: White
Tube Color	-		Input: White Output: White
PLC Splitter Packing	-		Stainless Steel Tube
Package Diemension	-		4760(mm)

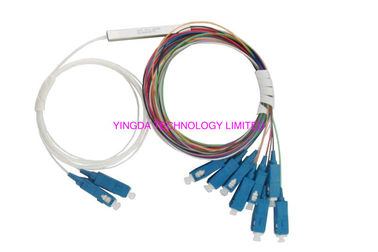

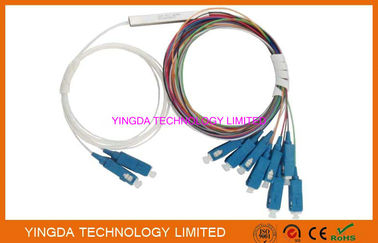

Product details

steel tube: 60*7*4mm,mini module, input and putput 0.9mm tube

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 1

input and output white color, can be customized
cable length can be 1 meter, 1.5meter or customized
connector can be: SC FC ST LC...ETC
Polish method: upc apc

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 2

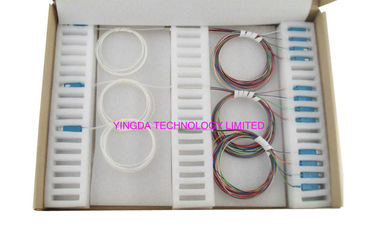

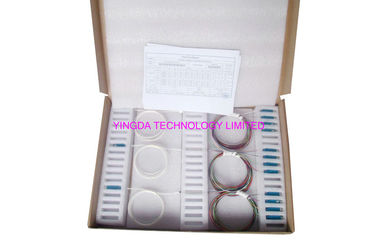

package: 1pc/ blister box, or 4pcs/box

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 3

Order information

Type

Package size

Port

Fiber Type

Input/output

Fiber length

connector

PLCS

BF=bare fiber
FO=fan-out
MD=module
MB=metal box

01X02
01x04
01x08
……
02x16
02x32
02x64

0=G652D
1=G657A
C=Customize

1=bare fiber
2=900µm
tight buffered
3=2.0mm
Loose tube
4=3.0mm
Loose tube

1=1m
2=1.5m
C=Customize

0=no connector
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST/APC
6=ST/PC
7=LC/AP
8=LC/PC
C=customize

YINGDA produce all kinds of PLC splitters of fiber optic and sell at home and aboard: mini module type, LGX module type, steel tube type, bare fiber type, ABS plastic module type, Rack type, fusion module tray type, splitter closure type... etc.

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 4

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 6
