12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box

MOQ: 200pcs, first order accept small order
harga: 1.0USD-18.6USD
Kemasan standar: 1pc/box, 20pcs/carton box
Periode Pengiriman: 5-8working days
metode pembayaran: T/T, Western Union, MoneyGram, L/C
Kapasitas Pasokan: 50k per month
Informasi Rinci
Deskripsi Produk
Peringkat & Ulasan
Informasi Rinci
Tempat asal
Cina
Nama merek
YINGDA
Sertifikasi
ISO
Model Number
FDB0212C
material:
PC+ABS
Capacity:
12 fibers
adapter qty:
12pcs SC / LC duplex
split ratio:
1x2,1x4,1x8 micro splitter
color:
white
size:
225*200*65mm
connector insertion loss:
<0.2dB
OME or sample:
ok
Menyoroti:

kotak distribusi optik

,

distribusi kotak splitter

Deskripsi Produk

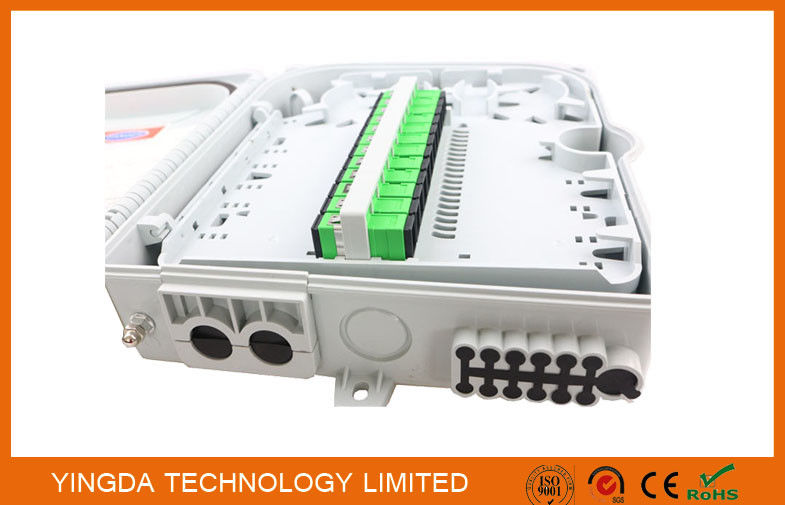

IP65 12 Cores 8 Cores FTTH Fiber Optic Termination Box ABS+PC 2In 12Out PLC Splitter Box



Model:FDB0212C





The distribution box is used as a terminal point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box ,and meanwhile it provide solid protection and management for the FTTX net work building.





Features:

•Total enclosed structure, be in nice shape
•Material: PC+ABS, wet proof , waterproof, anti--aging
•Clamping for feeder cable and drop cable, fiber splicing , fixation, storage, distribution...all in one
•Cable, pigtail , patch cord are running through own path without disturbing each other, cassette type SC adapter installation, easy to maintain and extend the capacity
•Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.



Application: FTTH and FTTB



Standard Configuration

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, rubber steal for cable entrance

Optional Configuration
Extra lock and key



More pictures

12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 012 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 112 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 2 12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 3



Specifications

Environmental requirement   Main technical data
Working temperature -40~+75℃ Insertion loss ≤0.2dB
Relative humidity ≤85%(+30℃) UPC Return loss ≥50dB
Atmospheric pressure 70KPa~106KPa APC Return loss ≥60dB
size 2 core 168*102*32mm
size 4 core 186*116*41mm
size 6 core 196*116*41mm
size 8 core 223*180*48mm
size 12core 310*224*73mm
size 24 core 317*237*101mm
size 32 core 420*320*132mm



Workshop prodution lines

12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 412 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 512 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 612 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 7

Peringkat & Ulasan

Peringkat Keseluruhan

5.0
Berdasarkan 50 ulasan untuk pemasok ini

Cuplikan Peringkat

Berikut adalah distribusi dari semua peringkat
5 bintang
100%
4 bintang
0%
3 bintang
0%
2 bintang
0%
1 bintang
0%

Semua Ulasan

A
Aincosa
Guyana Mar 20.2024
Bermanfaat (2)
We have cooperated with the company for five years and are satisfied with both its products and services.
N
N*n
France Oct 25.2023
Bermanfaat (8)
Excellent product, good material quality! Easy to installtion, suitable for mini sc adapter and flat drop cable...
E
E*n
Chile Aug 23.2023
Bermanfaat (9)
Good quality, IP65 waterproof. will continue to cooperate with YINGDA
