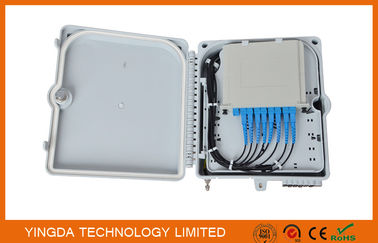

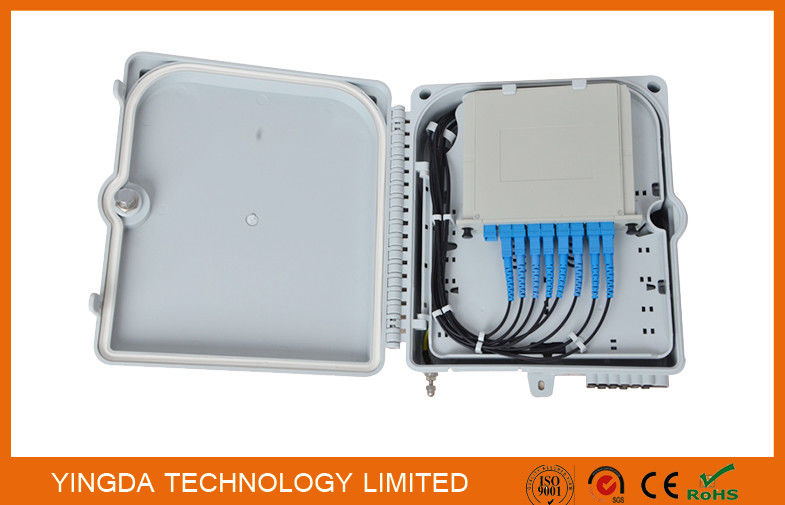

12 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65

12 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65

Nama merek:	YINGDA
Nomor Model:	FDB0212C
MOQ:	200pcs, first order accept small order
harga:	1.0USD-18.6USD
Waktu Pengiriman:	5-8working days
Ketentuan Pembayaran:	T/T, Western Union, MoneyGram, L/C

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

material:

PC+ABS

Capacity:

12 fibers

adapter qty:

8piece SC

split ratio:

1x2,1x4,1x8 blockless splitter

color:

size:

250*190*39mm

connector insertion loss:

<0.2dB

OME or sample:

cable port:

2inlet，12outlet，express inputs

cable diameter:

16mmfor inputs, 3mm for outputs

Packaging Details:

1pc/box, 20pcs/carton box

Supply Ability:

50k per month

Menyoroti:

kotak distribusi optik

distribusi kotak splitter

Deskripsi Produk

12Cores Fiber Distribution Box, Optical Splitter Module Junction Box Outdoor Pole Mounting Gray ABS for FTTH IP65

This ftth box terminates up to 2 fiber optic cables, offers space for splitters and up to 12 fusions, allocates 8 pcs of SC adapters with 1x8 PLC splitter module and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

Features

ABS/PC material used ensures the body strong but light weight.
Total enclosed before shipment, and ready for wall mount, installation kits included.
Adapter slots design, not need special screws or tools
LGX module max. can hold 1x2, 1x4, 1x8 blockless PLC splitter
Space saving:Double-layer design for easier installation and maintenance: Lower layer for splitters and over length fiber storage; Upper layer for splicing, cross-connecting and fiber distribution.
Cable fixing units provided for fixing the outdoor optical cable.
Accommodates both cable glands or un-cut ports( tie-wraps)
There is clip design to close the box, also lock provided for extra security
Outdoor protection Level: IP65.

Application

CATV Networks
FTTH access network.
Local Area Networks
Telecommunication Networks
Data Communications Networks

12 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65 0

Specifications

Model	FDB-0212C
Dimension (WH D)	235200 60mm
Splitter	1x2,1x4,1x8 MICRO Splitter
Material	Pc+Abs
Color	White/gray/black
Adapter	Max. 8pcs
Fusion	Max. 12cores
Cable diameter	16mm or 2*3.0mm drop cable
Operation conditions	Temperatures:-40℃ -- 60℃ Humidity:93% at 40℃ Air Pressure:62kPa – 101kPa

Standard accessory

Terminal box X1 unit
Keys for lock X2 keys
Wall mount installation accessories X1 set

More pictures

12 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65 1

12 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65 3
