| Nama merek: | YINGDA |
| Nomor Model: | YD-FIC-SC/UPC-E |
| MOQ: | 500PCS |
| harga: | Dapat dinegosiasikan |
| Waktu Pengiriman: | 5 working days after received your payment |
| Ketentuan Pembayaran: | T/T or western Union |

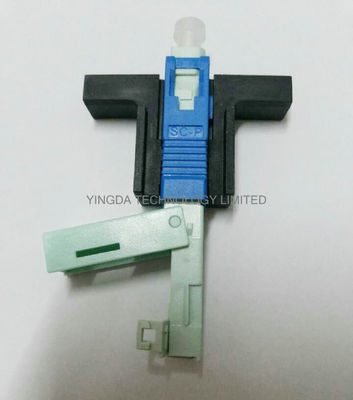

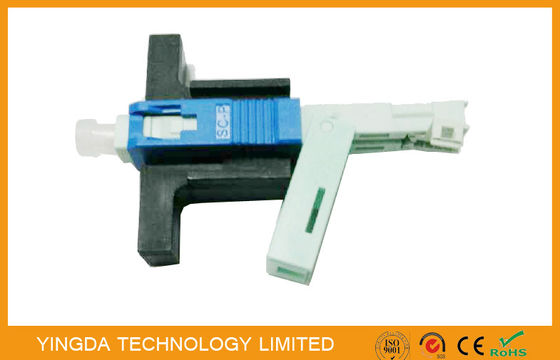

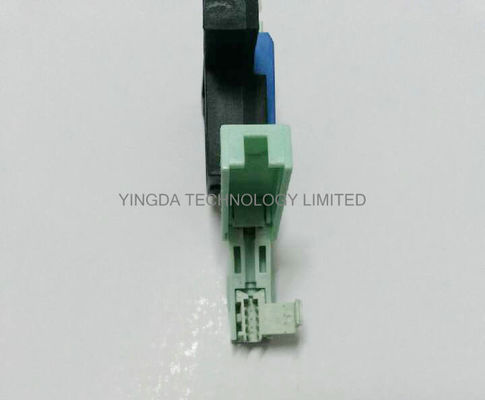

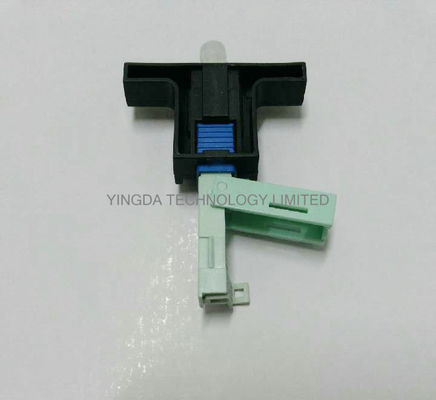

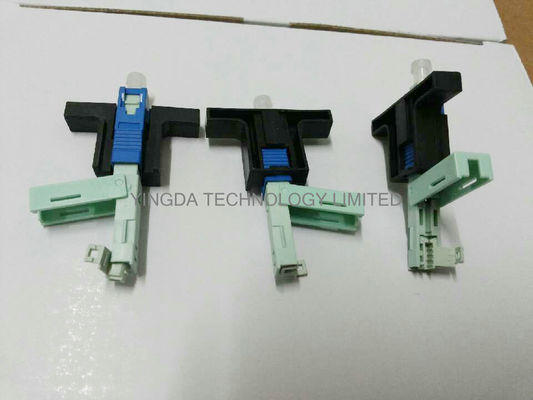

Field Mountable Fiber Optical Connector (FMC), Mechanical SC Connector With Back Cover
Sell point:
1. SC / PC, cover type, the total length 53mm
2. Apply to 2mm* 3mm drop fiber cable
3. Ceramic C-groove structure, good sealing performance, flame retardant
4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB
5. Return loss: ≥45dB
6. No need epoxy or polished, field-installable, factory embedded fiber
Description
SC / PC Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector
used in assembly. It can provide Open flow and Pre-cast type of products, whose optical and
mechanical specification meets the standard optical fiber connector.
It is designed for high quality and high efficiency for installation the structure of crimping position
is a unique design, and need not gluing, polishing neither any consumables. Adopting fiber
pre-installed structure, and convenient for field installation.
Features
Specification
|
Type |
Parameters |
|
Insertion loss |
≤ 0.3dB(1310nm & 1550nm) |
|
Return loss |
≤ -40dB |
|
Bare fiber strength |
>5N |
|
Clad strength |
>10N |
|
Tension |
>50N |
|
Mechanical durability (500times) |
IL ≤ 0.2dB & RL ≤ 5dB |
|
Operating Temperature |
5 ºC to +70 ºC |
Application
|
|
