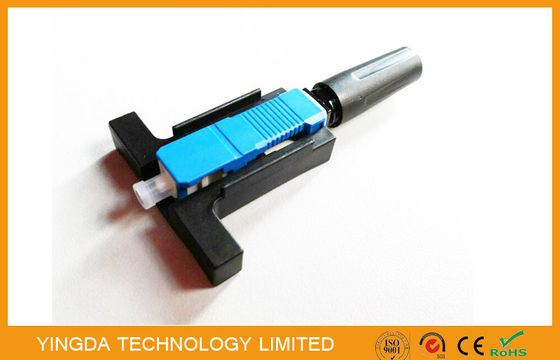

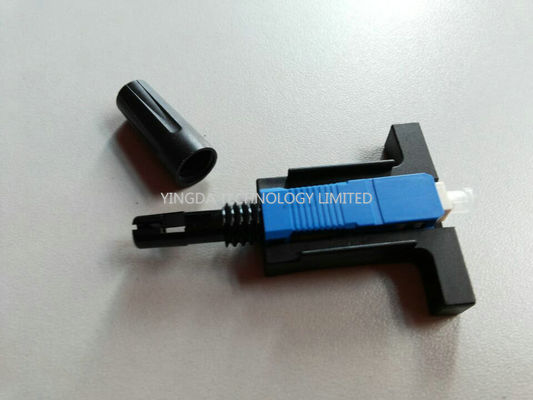

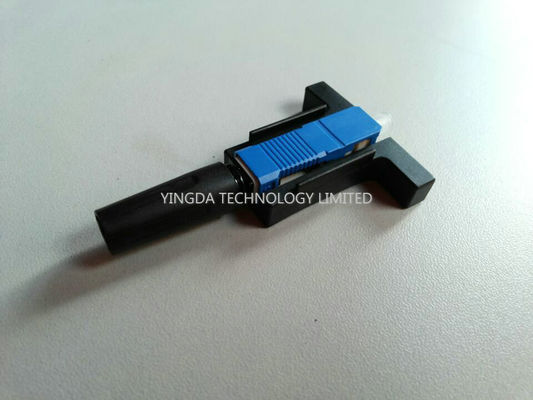

Single Mode Field Installable Connector , Terminated Fiber Connector SC PC

MOQ:	500PCS
harga:	0.19USD-0.72USD
Kemasan standar:	1pc /plastic bag
Delivery period:	5 working days after received your payment
metode pembayaran:	T/T or western Union
Kapasitas Pasokan:	500,000pcs per month

Informasi Rinci

Deskripsi Produk

Peringkat & Ulasan

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

ISO SGS ROHS

Model Number

YD-FIC-SC/UPC-F

material:

Plastic

house color:

fiber type:

single mode

back cover:

yes, black

insertion loss:

< 0.3 dB

return loss:

> 45 dB,(typical 50dB)

pack:

plastic bag

total length:

Nama produk:

konektor serat sc, konektor serat optik sc, konektor kabel serat, konektor yang dapat dipasang di la

Menyoroti:

quick assembly connector

mechanical splicer

Deskripsi Produk

Field Terminated Fiber Connector SC PC, SC Field Installable Connector

Sell point:

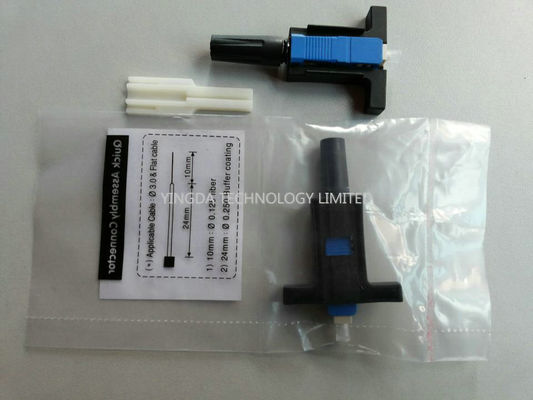

1.SC cover type, cable cut length: 24mm / 10mm

2. Apply to 2mm* 3mm drop fiber cable

3.Ceramic V-groove structure, good sealing performance, flame retardant

4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB

5. Return loss: ≥45dB

6. No need epoxy or polished, field-installable, factory embedded fiber

Description

Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector in assembly.

It can provide Open flow and Pre-polished and curing type products, whose optical and mechanical

specification meets the optical fiber connector standards .

The structure of crimping position is a unique design, and need not glue curing, polishing neither any

consumables. Adopting fiber pre-installed structure, and convenient for field installation.

Features

Provide Open flow and Pre-cast type of products
Adopting fiber pre-installed structure
Convenient for field installation
VFL window: Immediate feedback on successful termination
No epoxy or polishing required, easy assembly in the field
Fiber termination can be reset, save time and energy ,reduce scrap
No special tools required: Common fiber tools, readily available
Reliability and superior performance
Repeatable times is no less than 50 times;
Long life span design, more than 30 years.
Precise mechanical dimensions
Low insertion loss, high return loss
Comply standard of IEC61754-4

Application

Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber / Home (FTTH) applications
Repair/replacement requirements
Equipment test leads

Specification

Type	Parameters
Insertion loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	≤ -40dB
Bare fiber strength	>5N
Clad strength	>10N
Tension	>50N
Mechanical durability (500times)	IL ≤ 0.2dB & RL ≤ 5dB
Operating Temperature	5 ºC to +70 ºC

Order information

Connector: SC/UPC, SC/APC
Cable type: indoor cable 0.9mm,2.0mm,3.0mm or drop cable 2x3mm
Connector color: blue, green
Package: 10pcs/set or 1pc/set, customized
OEM ok

Single Mode Field Installable Connector , Terminated Fiber Connector SC PC 0
