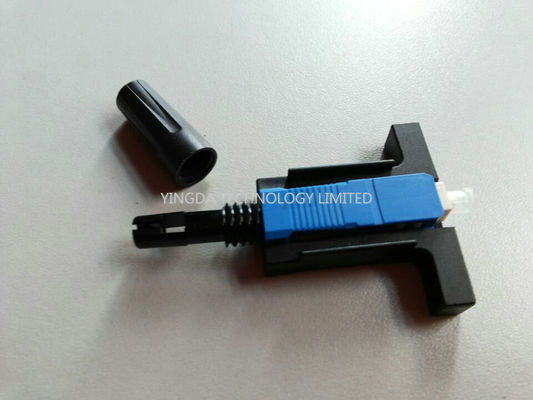

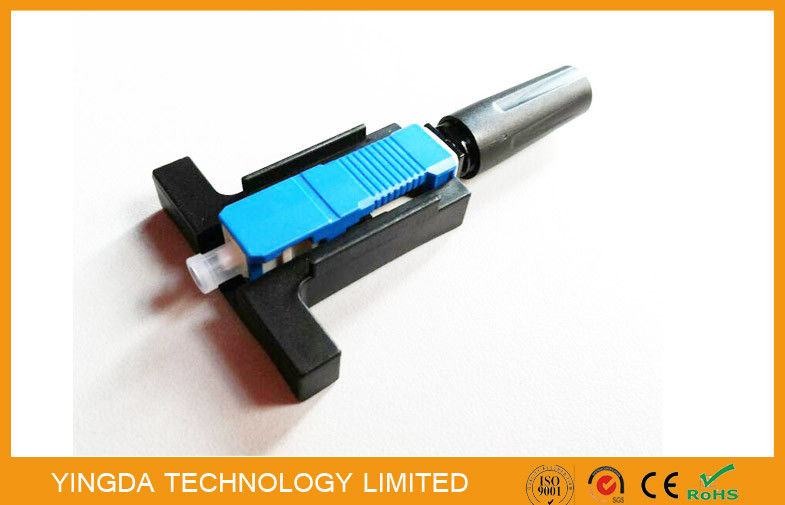

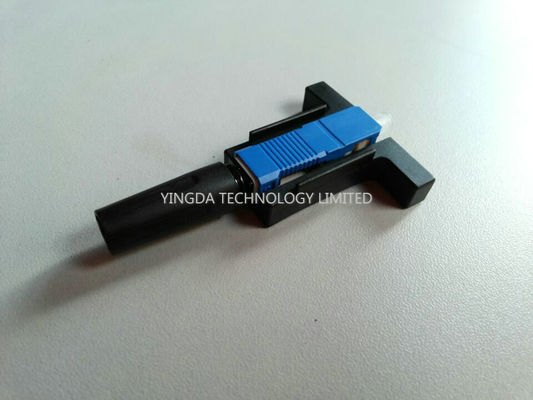

Field Installable SC / PC Connector

MOQ:	500PCS
harga:	0.19USD-0.72USD
Kemasan standar:	1pc /plastic bag
Periode Pengiriman:	5 working days after received your payment
metode pembayaran:	T/T or western Union
Kapasitas Pasokan:	500,000pcs per month

Informasi Rinci

Deskripsi Produk

Peringkat & Ulasan

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

ISO SGS ROHS

Model Number

YD-FIC-SC/UPC-F

material:

Plastic

house color:

fiber type:

single mode

back cover:

yes, black

insertion loss:

< 0.3 dB

return loss:

> 45 dB,(typical 50dB)

pack:

plastic bag

total length:

Nama produk:

konektor serat sc, konektor serat optik sc, konektor kabel serat, konektor yang dapat dipasang di la

Menyoroti:

quick assembly connector

mechanical splicer

Deskripsi Produk

Fiber Optic Field Terminated Connector SC/PC, SC Field Installable Connector

Sell point:

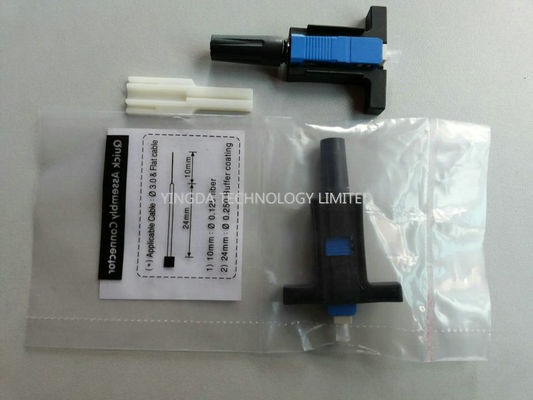

1.SC cover type, cable cut length: 24mm / 10mm

2. Apply to 2mm* 3mm drop fiber cable

3.Ceramic V-groove structure, good sealing performance, flame retardant

4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB

5. Return loss: ≥45dB

6. No need epoxy or polished, field-installable, factory embedded fiber

Description

Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector in assembly.

It can provide Open flow and Pre-polished and curing type products, whose optical and mechanical

specification meets the optical fiber connector standards .

The structure of crimping position is a unique design, and need not glue curing, polishing neither any

consumables. Adopting fiber pre-installed structure, and convenient for field installation.

Features

Provide Open flow and Pre-cast type of products
Adopting fiber pre-installed structure
Convenient for field installation
VFL window: Immediate feedback on successful termination
No epoxy or polishing required, easy assembly in the field
Fiber termination can be reset, save time and energy ,reduce scrap
No special tools required: Common fiber tools, readily available
Reliability and superior performance
Repeatable times is no less than 50 times;
Long life span design, more than 30 years.
Precise mechanical dimensions
Low insertion loss, high return loss
Comply standard of IEC61754-4

Application

Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber / Home (FTTH) applications
Repair/replacement requirements
Equipment test leads

Specification

Type	Parameters
Insertion loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	≤ -40dB
Bare fiber strength	>5N
Clad strength	>10N
Tension	>50N
Mechanical durability (500times)	IL ≤ 0.2dB & RL ≤ 5dB
Operating Temperature	5 ºC to +70 ºC

Order information

Connector: SC/UPC, SC/APC
Cable type: indoor cable 0.9mm,2.0mm,3.0mm or drop cable 2x3mm
Connector color: blue, green
Package: 10pcs/set or 1pc/set, customized
OEM ok

Field Installable SC / PC Connector 0

Peringkat & Ulasan

Peringkat Keseluruhan

5.0

Berdasarkan 50 ulasan untuk pemasok ini

Cuplikan Peringkat

Berikut adalah distribusi dari semua peringkat

5 bintang

4 bintang

3 bintang

2 bintang

1 bintang

Semua Ulasan

W*x

Chile May 22.2025

trustpilot.com

Bermanfaat (13)

The quality is very good, it is worth buying again, I have bought from this supplier many times, I believe you.

S*r

South Africa Jun 20.2024

Bermanfaat (6)

Excellent product, easy connection, great quality, delivered on time, recommended for everyone!

1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp

Peru Mar 16.2023

Bermanfaat (12)

YINGDA is always very fast to manufacture custom cables with high quality and reliability.
