Half Metal LC - SC Fiber Optic Adapter , Low Insertion Loss Male To Female Adapter
  • Nama
  • Nama
  • Nama
  • Nama

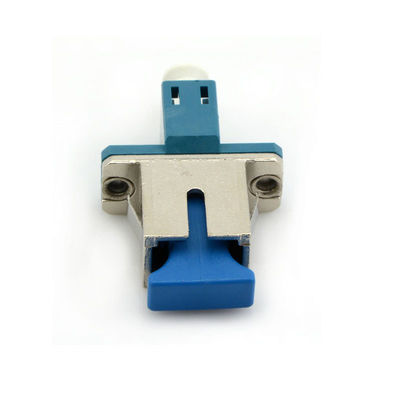

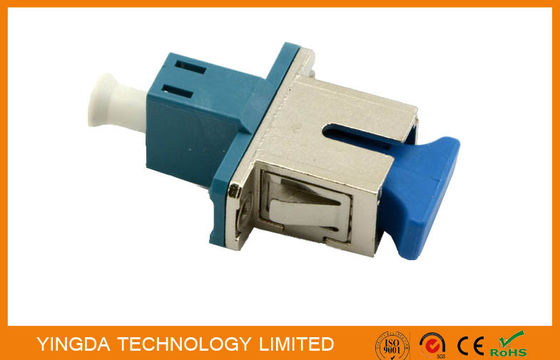

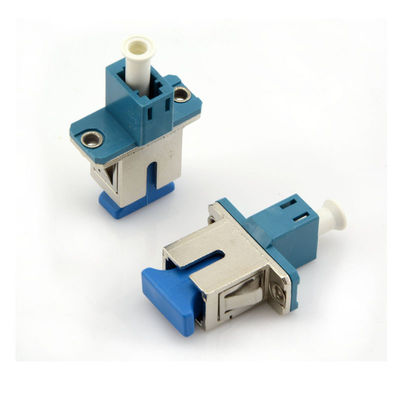

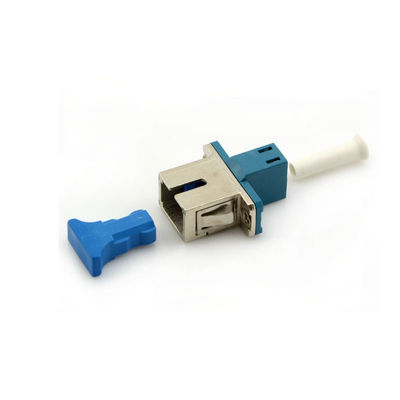

Half Metal LC - SC Fiber Optic Adapter , Low Insertion Loss Male To Female Adapter

MOQ: 100 PCS
harga: 0.04USD-2.15USD
Kemasan standar: 1 pc / bag or 10 pc/ blister box
Delivery period: 3 days
metode pembayaran: T/T or western Union
Kapasitas Pasokan: 50,000pcs per month
Informasi Rinci
Deskripsi Produk
Peringkat & Ulasan
Informasi Rinci
Tempat asal
Cina
Nama merek
YINGDA
Sertifikasi
ISO,SGS
Model Number
AD-LC M/SC F-SX-M
material:
Metal, plastic
dust cap color:
red
type:
hybrid adapter
weight:
12g
Fiber type:
single-mode, multimode
sleeve material:
ceramic
Nama produk:
kabel mpo ke mpo, kabel mpo ke lc, konektor optik mtp, kaset mtp
-->
Menyoroti:

serat optik adaptor

,

adapter serat telanjang

Deskripsi Produk

Half Metal LC - SC Fiber Optic Adapter , Low Insertion Loss Male To Female Adapter





Description:



Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.



Hybrid adapter can connect different types of connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.



Features

  1. Low insertion loss value
  2. Choice of housing and sleeve materials
  3. Stable capability and high reliability
  4. Excellent mechanical
  5. Choice of housing and sleeve materials
  6. Stable capability and high reliability
  7. Excellent mechanical capability
  8. Variety of colors



Specification



Insertion loss

≤0.2dB

Insert-pull test

1000 times

Repeat ability

≤0.1dB

Tensile strength

≥10kg

Operating temperature

-40°C~85°C

Sleeve materials

Ceramic or Metal

Standard

Bellcore TA-NWT-001209

Storage temperature

-40°C~85°C



Application

  • CATV
  • Telecom networks
  • Optical test equipments
  • Local area networks
  • Wide area networks
  • Data processing networks



Half Metal LC - SC Fiber Optic Adapter , Low Insertion Loss Male To Female Adapter 0Half Metal LC - SC Fiber Optic Adapter , Low Insertion Loss Male To Female Adapter 1
