PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler

MOQ:	10km
harga:	0.04USD-2.15USD
Kemasan standar:	50 pc / box
Delivery period:	5 working days
metode pembayaran:	T/T or western Union
Kapasitas Pasokan:	200km/ month

Informasi Rinci

Deskripsi Produk

Peringkat & Ulasan

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

ISO,SGS

Model Number

AD-FC-SM01-R

Fiber count:

1 fibers

connector material:

metal + plastic

dustcap color:

sleeve material:

ceramic

outer sheath:

fiber type:

single mode SM

polish mode:

UPC / PC

working temperature:

-40 ~ +80 °C

Nama produk:

kabel mpo ke mpo, kabel mpo ke lc, konektor optik mtp, kaset mtp

Menyoroti:

serat optik coupler

adapter serat telanjang

Deskripsi Produk

CATV Fiber Optic Adapter FC Small D Hole, FC Adapter D Hold SM SX

Fiber Optic Adapter (also called coupler), is a kind of connector in optical fiber transmission,

whose both ends can be inserted the different optical fiber connector such as FC, SC, ST, LC,

MTRJ, MPO, E2000 to make them interchange, and widely used in optical distribution frame(ODF),

optical Fiber communication equipment, instruments, etc.It is superior performance, stable and

reliable. Some call fiber optic adapter as optical fiber connectors, in fact, its two different items.

Features

Low insertion loss< 0.2 dB
Good interchangeability
Good repeatability
100% test in factory
Blister box or plastic bag pack
PBT or ABS material

Application

optical fiber communication system
cable TV network
local area network (LAN), optical network domain
optical fiber to the home (FTTP)
video transmission
test instruments

Specification

Item	Value
Wavelength	1200-1600nm
Polish method	UPC,PC,APC
IL	≤0.2dB
Max. IL	≤0.3dB
Repeatability	≤0.1dB
Interchangeability	≤0.2dB
Sleeve material	Cermic or metal
Working/Storage temperature	-40~+85℃
Matings time	>1000
Standard	Bellcore TA-NWT-001221/001209

Order information

Endface	Fiber mode	Fiber core	Sleeve
PC	Multi mode	simplex	Cermic
UPC	Single mode	duplex	Phosphor bronze

All FC Fiber Adapter Models:

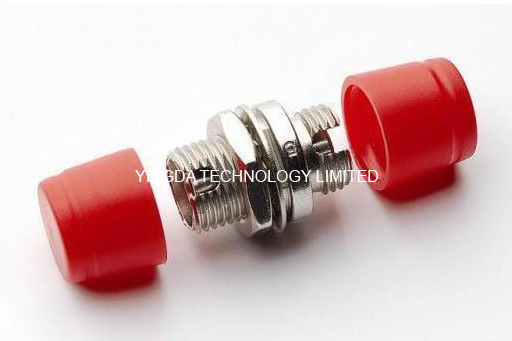

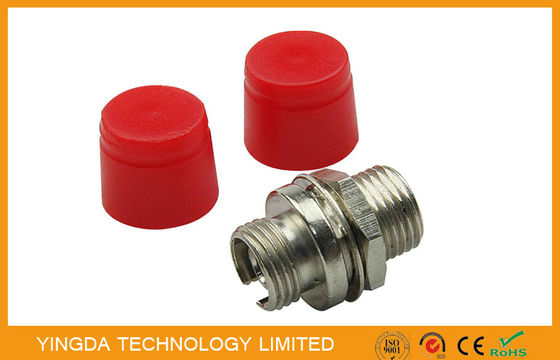

PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler 0

FC Adapter Small D hole More Details:

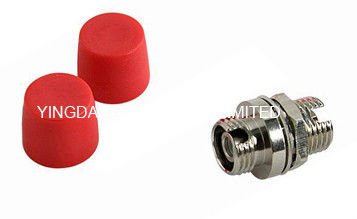

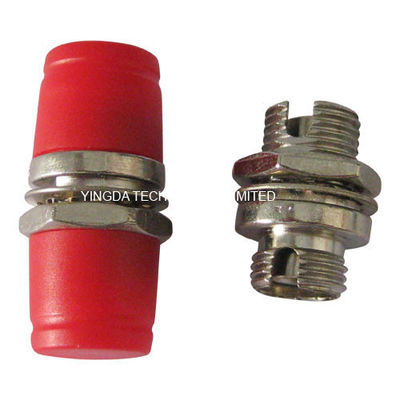

PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler 1
