| Nama merek: | YINGDA |
| Nomor Model: | FPG-FC-OS1-0.9-1.5-Y |
| MOQ: | 100PCS |
| harga: | Dapat dinegosiasikan |

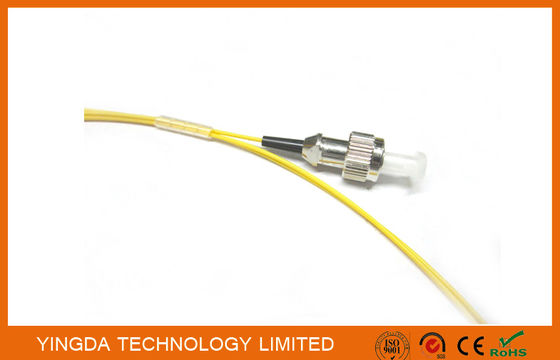

Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D
YINGDA offers an FC Tunable Pigtail with four-position tuning for applications requiring precise fiber
alignment. A specially designed FC PM Pigtail is available for use with Polarization Maintaining Fiber.
FC Fiber Optic Pigtail was one of the most popular Pigtails. It use a 2.5mm ferrule, but some of
the early ones use ceramic inside stainless steel ferrules. It screws on firmly, but you must make
sure you have the key aligned in the slot properly before tightening. It's been mostly replaced by
SC and LC. However,due to easy assemblies and installation, YINGDA produced FC Fiber Optic
Pigtails are every competitive.
FC Fiber Optic Pigtails is available in both single-mode and multimode, and is fully inter-mateable
with NTT-FC products. Both single-mode and multimode come with a zirconia ceramic ferrule with
pre-polished PC profile and convex spherical end. These end-face types allow for faster polishing,
and low back reflection and optical loss, while ensuring maximum repeat-ability.
Application
Features
Specification
|
Item |
Single mode (nomomodo) |
Multimode (Multimodo) |
|
Wavelength |
1310&1550nm |
850&1300nm |
|
Fiber type |
9/125um |
62.5/125um,50/125um,50/125um OM3,50/125um OM4 |
|
Connector type |
SC ST FC LC MU MTRJ E2000 DIN D4 ESCON |
|
|
Insertion loss on average |
≤0.3dB |
≤0.3dB |
|
Max. insertion loss |
≤0.5dB |
≤0.5dB |
|
Return loss |
UPC≥55dB;APC≥65dB |
≥20dB |
|
Operating temperature |
-40~+75℃ |
|
|
Storage temperature |
-40~+85℃ |
|
Ordering Information
FC / UPC SM 9/125 SIMPLEX 1.6mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
|
|
