| Nama merek: | YINGDA |
| Nomor Model: | GYXTPY |
| MOQ: | 10 KM |
| harga: | Dapat dinegosiasikan |
Waterproof FTTH Fiber Optic Distribution Cable Loose Tube PE Sheath Steel Wire Cable
Description

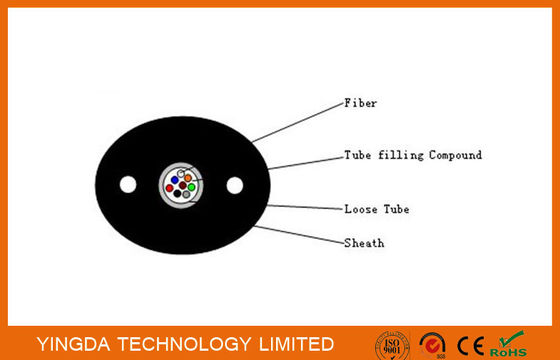

GYXTPY cable structure are 125um optical fiber in loose tube made of high modulus
materials, loose tubes filled waterproofing compounds. After two parallel steel wires
placed on both sides of extruded PE or LSZH or PVC sheathed cable.
Application
◆Mainly used for building overhead or pipes to introduce cable
Technical parameters
|
Cable code |
Fiber count |
Cable size (mm) |
Cable weight (kg/km) |
Tensile(N) |
Crush (N/100mm) |
Crush resistance |
Temper ature (°C) |
|||||||||||
|
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
|||||||||||||
|
GYXTPY-02 |
2 |
3.0*4.0 |
25 |
300 |
800 |
300 |
1000 |
20D |
10D |
-40~+70 |
||||||||
|
GYXTPY-04 |
4 |
3.0*4.0 |
27 |
300 |
800 |
300 |
1000 |
20D |
10D |
|||||||||
|
GYXTPY-06 |
6 |
4.0*6.0 |
30 |
300 |
800 |
300 |
1000 |
20D |
10D |
|||||||||
|
GYXTPY-08 |
8 |
4.0*6.0 |
33 |
300 |
800 |
300 |
1000 |
20D |
10D |
|||||||||
|
GYXTPY-12 |
12 |
4.0*6.0 |
35 |
300 |
800 |
300 |
1000 |
20D |
10D |
|||||||||
|
|
||||||||||||||||||
|
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
||||||||||
|
Jacket material |
PE |
LSZH |
PVC |
|||||||||||||||
