1 x 2 Bare Fiber Cable Joint Box, 36 Core Kotak Distribusi Fiber Optik Untuk Kabel Drop

36 Cores FTTH ODN Optical Fiber Distribution Box, 1*8 Passive Splitter Box In Fiber Optic Splice Closures With Couplers

Model: GJS-5019

5 Series for Multi-function fiber optical splice closures can be used both for the protection of various

straight-through and branching, and for the construction of fiber-optic network to achieve the wiring of

fiber to the home (FTTH). Also, the connectors can be used for the splicing of some main optical cables

and branching optical cables, and the splicing of some main optical cables and tail fibers or pigtail optical

cables, and they can be connected to the optical switching devices through patch cords. Therefore, the

splicing unit within the network box, wiring unit, part material of the network box housing, optical cables

connected to the network box from the closures and the whole operation process can be excluded.

Features

1. Advanced internal structure design
2. Easy to re-enter, it never requires re-entry tool it
3. The closure is spacious enough for winding and storing fibers
4. Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN-LOCK and its opening angle is about 90°
5. The curved diameter meets with international standard
6. Easy and fast to increase and reduce FOSTs
7. It is made of high-strength engineering plastic(PC), suit for temperature of -40 ~ +65℃
8. Good sealing structure with sealing ring and sealing tape

Applications

• Suitable for bunchy fibers
• Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
• It's especially applicable to FTTH optical fiber distribution

GJS-5019 Fiber Optic Splice Closures Datasheet

Accessory list

More pictures and descriptions in details:

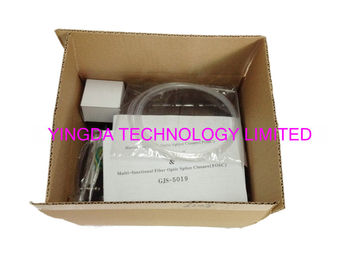

1 piece  per box,  each box with its accessories may need, instruction manual included, all is brand new.

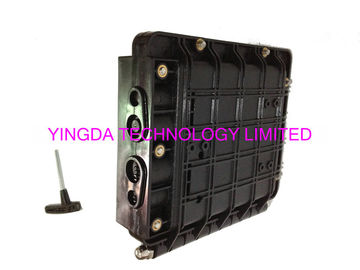

                 fiber splice box front view                                    fibre splicing box back view

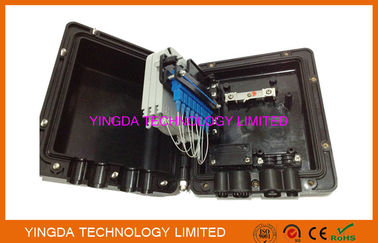

fiber optic splitter cloure inside overview

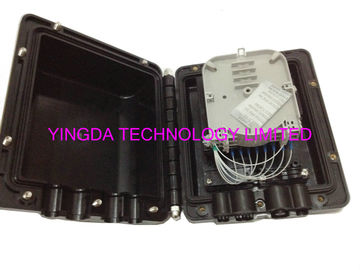

1. it is with 3 pieces splice tray, each tray 12fibers, the top layer is for splicing, with desiccant. the splice tray is overlap with each other, and fix in the closure with palstic screws.
2. the splice closure with 10ports, each diameter is like this:

•              1ports: 8-20mm
•              1ports:8-13mm
•              8ports: FTTH drop cable 2x3mm

the 2nd layer of splice tray with 1 pcs SC connector, which is the input side of the plc splitter. we use glue to stick and fix it.

the 3rd layer of splice tray with the PLC splitter output side of cables, and also with the PLC splitter steel tube. and there is speical place to fix it.

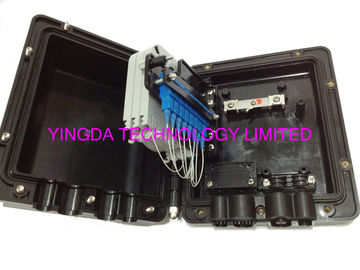

this is the splice tray back side, it is the adapter panel part. it maximum can have 8 pieces of SC adapters in total. this part can be taken off by hand.

easy to handle and installation.
