| Nama merek: | YINGDA |
| Nomor Model: | AD-FC-FA01-R |
| MOQ: | 500pcs |
| harga: | 0.04USD-2.15USD |
| Waktu Pengiriman: | 5 working days |
| Ketentuan Pembayaran: | T/T or western Union |

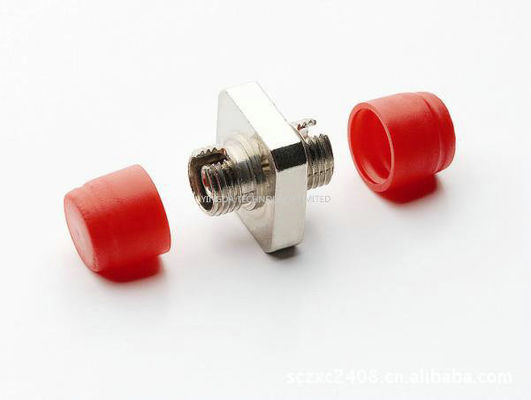

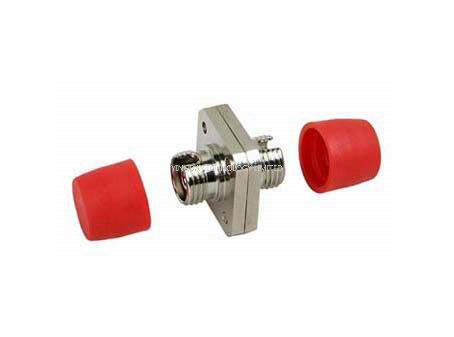

Zinc Alloy FC Fiber Optic Adapter, FC / APC Copper Adapter Coupler Green
The earliest FC connector was developed by NTT, Japan. =FC= ferrule connector.
FC indicates that its external strengthening way is to use metal sleeve, fastening way as the turn
buckle. First, FC type connector, the use of ceramic the butt end of the pin. Such connector has
simple structure, convenient operation, easy, but the dust sensitive optical fiber end face, and prone
to Fresnel reflex, is difficult to improve properties return loss. Later, made improvement for this type
of connector, adopts the butt end of spherical pin (PC), and external structure has not changed, the
insertion loss and return loss performance has improved significantly.
Fiber Optic Adapter called fiber opptic couple, it is a kind of connector whose both ends can be
inserted the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000 to make
hem interchange, and widely used in optical distribution frame(ODF), optical Fiber communication
equipment, instruments, etc.It is superior performance, stable and reliable.
Features
Application
Specification
|
Item |
SM |
|
|
MM |
|
PC |
UPC |
APC |
||
|
Ferrule type |
Convex spherical |
big chamfer or step |
Convex spherical |
|
|
Ferrule ID (um) |
125 |
127 |
||
|
Main body material |
PBT or ABS |
|||
|
Connector type(mm) |
0.9/2.0/3.0mm, simplex, duplex |
|||
|
Operating temperature (°C) |
-40 ~+85 |
|||
|
Storage temperature (°C) |
-40 ~+85 |
|||
Order information
|
Endface |
Fiber mode |
Fiber core |
Sleeve |
|
PC |
Multi mode |
simplex |
Cermic |
|
UPC |
Single mode |
duplex |
Phosphor bronze |

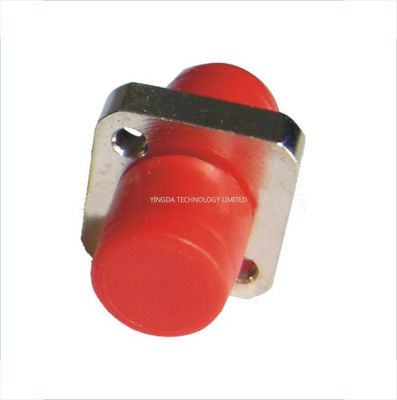

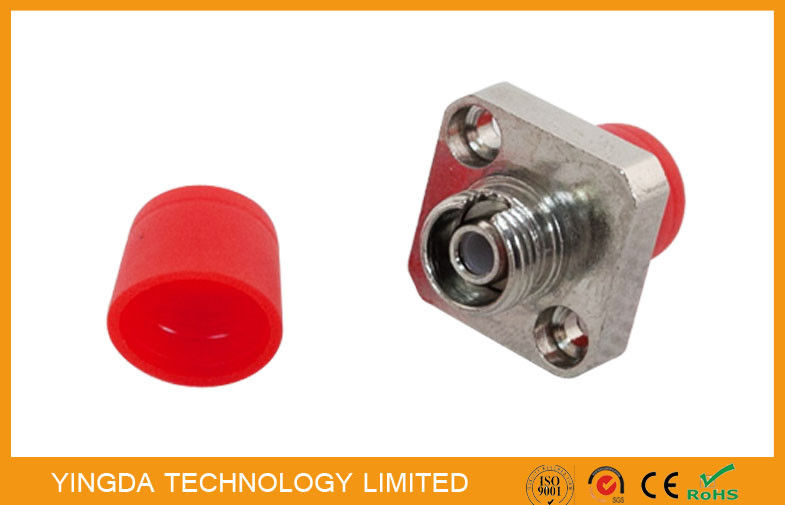

FC Adapter Square Type More Details:
video
video
video
|
|
