| Nama merek: | YINGDA |
| Nomor Model: | AD-SCM2-01/W |
| MOQ: | 1000pcs |
| harga: | 0.04USD-2.15USD |
| Waktu Pengiriman: | 5 working days |
| Ketentuan Pembayaran: | T/T or western Union |

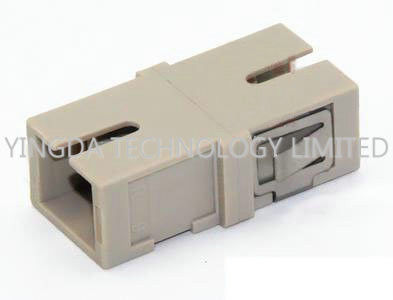

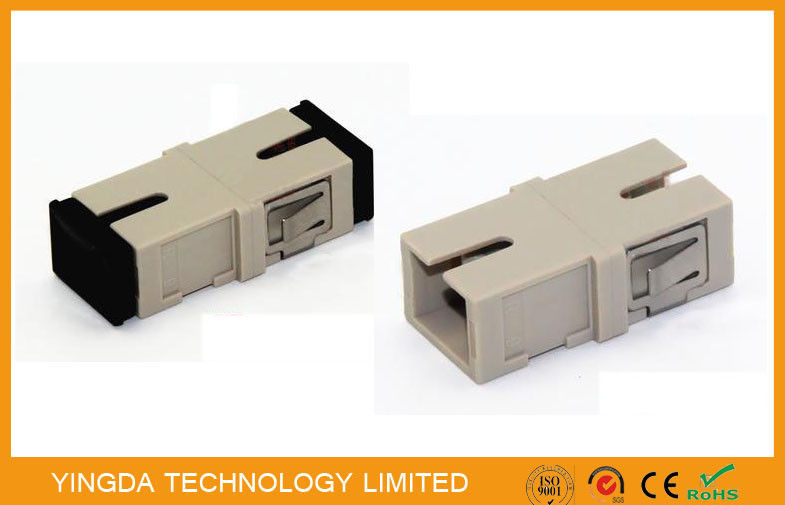

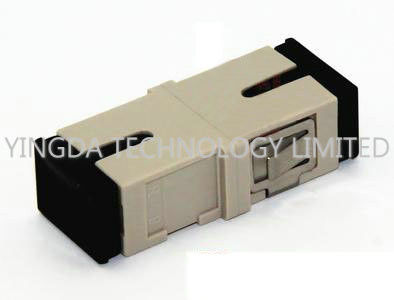

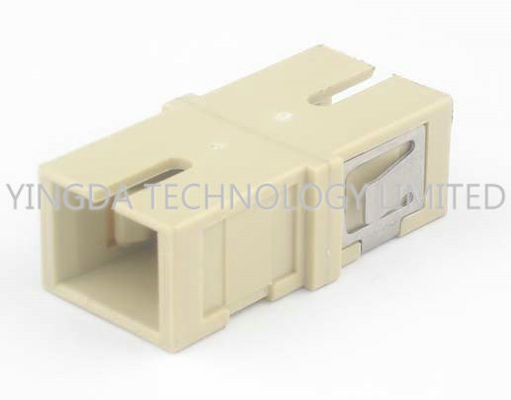

SC OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige
YINGDA produce and offer a full line of factory- and field-installable adapters in a variety of mounting
configurations to ensure compatibility with the housing, panel, outlet or face plate being utilized.
Supporting a variety of connector types, the adapters are ideal for cable assembly house and
manufacturing environments and local area networks (LANs) at the workstation outlet.
Our simplex plastic SC couplers are designed for mounting in standard rectangular cut out style panels.
This series features either bronze or ceramic alignment sleeves to meet your specific design requirement.
Additionally, these couplers can be used with PC, APC, UPC style fiber connectors.
Simplex, duplex and quad adapters are available in plastic, without flanges, and in horizontal and
vertical mount styles. All come with a choice of zirconia split sleeves (diagonal or straight split options
available), or with phosphor bronze straight split sleeves. Housing is available in a variety of colors.:
blue, beige, aqua, green,etc.
Features
Specification
|
Item |
Test condition |
Conformance |
Test result |
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
1000 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-6 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-12 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
Order information
video
video
video
|
|
