SC FC LC MU Fixed In - line Attenuator Multi Mode 50 / 125 µm SM 1 Meter Range 1 ~ 40dB

MOQ:	5 PCS
harga:	Dapat dinegosiasikan
Kemasan standar:	1 pc / plastoc blister box or customized
Delivery period:	3-5 days
metode pembayaran:	T/T or western Union
Kapasitas Pasokan:	50,000pcs per month

Informasi Rinci

Deskripsi Produk

Peringkat & Ulasan

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

Model Number

ATTN-Inline-VOA-01PC

Attenuation:

0- -40 dB fixed

test wavelength:

1310nm, 1550nm ,850nm

type:

inline fixed attenuator

Working temperature::

-40～+85 (℃)

Fiber optic type:

single-mode,multimode

connector type:

SC ST FC LC MU all ok

polish:

UPC APC PC

return loss:

connector plug time:

1000 times

package:

1pc in a blister box

Nama produk:

adaptor jaringan serat, kopling serat optik, adaptor konverter media, attenuator gelombang mikro, at

Menyoroti:

build out attenuator

inline optical attenuator

Deskripsi Produk

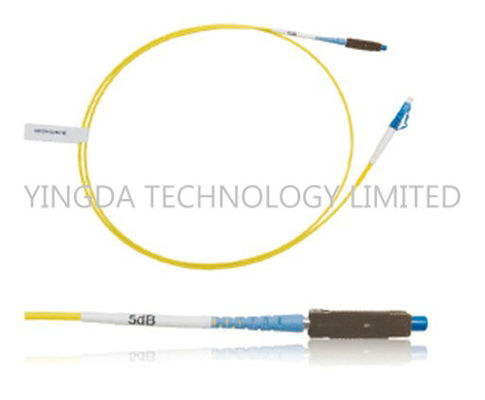

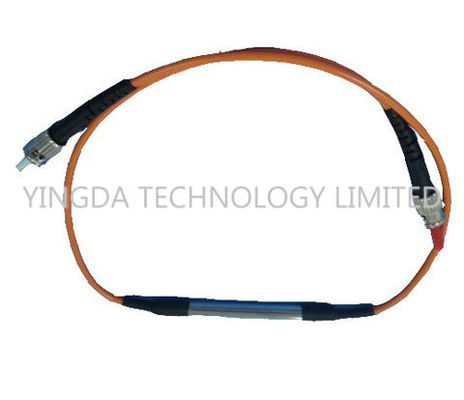

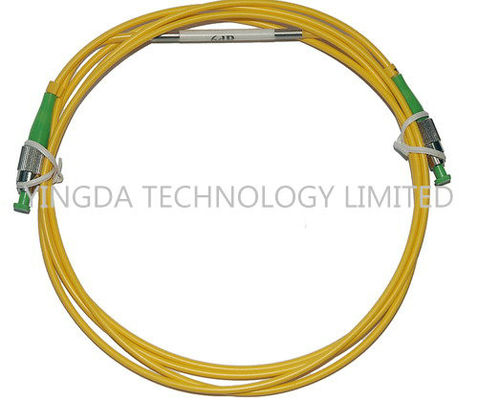

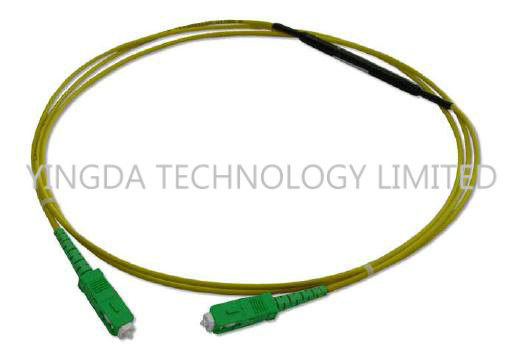

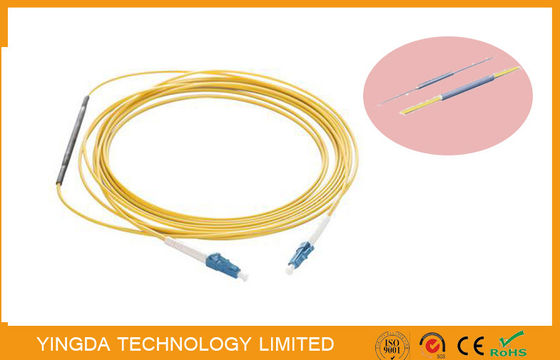

SC FC LC MU Inline Attenuator, Fixed In-line Attenuator SM 1Meter Range:1~40dB

InLine patchcord attenuators are applied when standard plug attenuators cannot be used (e.g. not

enough space in a closure) or when it is needed to attenuate an optical link by using not standard

connector type. Protection of a special attenuation part is made by rugged protection sleeve, which

ensures high durability and stability. InLine patchcord attenuators offered by Sylex are available from

cable with outer diameter of 2,8 mm for better identification we can offer InLine patchcord attenuators

in 4 different colours: black, white, green and red.

Features

Optimized ion doped fiber technology
Various fixed attenuation available
Superior durability
Low polarization dependence
Superior spectral flatness and very low ripples
Withstands high optical power up to 1W
Telecordia std(GR-910-CORE) conformed

Application:

Telecommunication Network
CATV Network
Data communication
Instrumentation
Local Area Network
Fiber Optic Access Network

Specifications

Fiber Type Items		Single Mode (9/125µm)	Multi Mode(50/125µm, 62.5/125µm)
Attenuation Value(dB)		1 to30	1 to 25
Operating Wavelength		1260 to1620	850 /1300
Return Loss(dB)	UPC	≥55	－
	APC	≥65	－
Attenuation Tolerance(dB)		±0.5
Maximum power capability(W)		1
Operating Temperature		-10℃～+75℃
Storage Temperature		-40℃～+85℃

SC FC LC MU Fixed In - line Attenuator Multi Mode 50 / 125 µm SM 1 Meter Range 1 ~ 40dB 0
