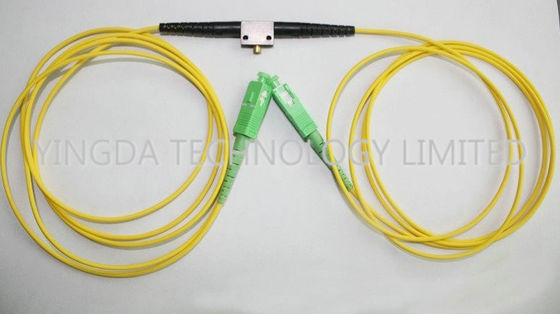

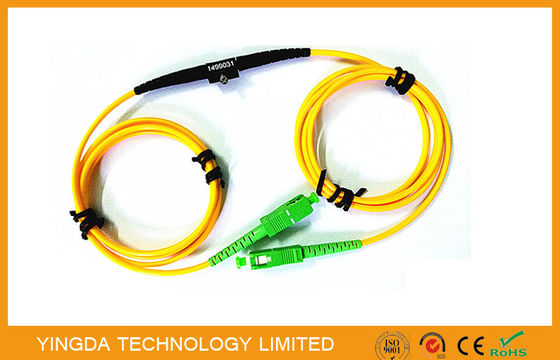

Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB

Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB

  • Cahaya Tinggi

    optical fiber attenuator

    ,

    inline optical attenuator

  • Attenuation
    0- -40 dB Variable
  • test wavelength
    1200-1650mm
  • type
    mechanical adjustable attenuator
  • Working temperature
    -40~+85 (℃)
  • Fiber optic type
    single-mode,multimode
  • connector type
    SC ST FC LC MU all ok
  • polish
    UPC APC PC
  • connector plug time
    1000 times
  • package
    1pc in a blister box
  • connector color
    green,blue,beige
  • cable diameter
    0.9mm, 2.0mm
  • Tempat asal
    Cina
  • Nama merek
    YINGDA
  • Sertifikasi
    ISO
  • Model Number
    ATTN-MVOA-FCA-02
  • Minimum Order Quantity
    5 PCS
  • Harga
    Negotiable
  • Packaging Details
    1 pc / plastoc blister box or customized
  • Delivery Time
    3-5 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB

SC FC LC MU Inline Attenuator, Fixed In-line Fiber Optic Attenuator SM 1Meter Range:1~40dB





Description



Attenuator is in the specified frequency range, a kind of circuit for introducing a predetermined

attenuation.The unit by the decibels which introduced attenation and ohmic characteristic of its

 Impedance. Attenuators are widely used in the cable television system in order to meet the

requirements of multi port for electric level such as the amplifier input, output level control,

branch attenuation control.



Product features:

  1. Ultra high resolution
  2. Environment protection, perfect stability and reliability
  3. Can be used in different wavelength (1260-1620nm)



Application:

  • Telecommunication Network
  • CATV Network
  • Data communication
  • Instrumentation
  • Local Area Network
  • Fiber Optic Access Network



 Specification



Item

Value

Operating wavelength (nm)

1260~1620 or customized

Insertion loss (dB)

< 1.0

Attenuation value (dB)

>65

PDL (dB)

<0.15  (<15dB (attenuation range)

<0.25  (16~65dB (attenuation range)

Return loss (dB)

>45 (UPC)
>50(APC)

Working power (mw)

300

Operating Temperature(℃)

-5~70

Storage Temperature(℃)

-40~85

Fiber type

 9/125μm

Package size (mm)

15.0x15.5x5.0



Note: under normal conditions, not including connectors, welding device and end face loss



 Order information



Item

Wavelength

working/nm

Fiber type

Pigtail length

/meter

Connector

Mechanical Variable

 Attenuator (MVOA)

F=1260~1620
C=customized

SM=single mode
MM=multimode

1=1.0m
2=2.0m
3=3.0m
C=customized

1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC/APC
6=LC/PC





Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB 0

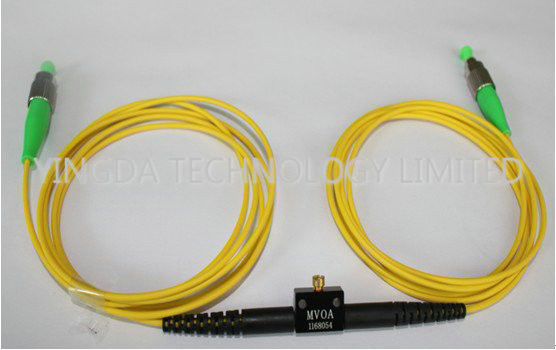

FC MVOA optical fiber attenuator cable can be 0.9mm or 2.0mm

connectors:  SC FC LC ST ,etc

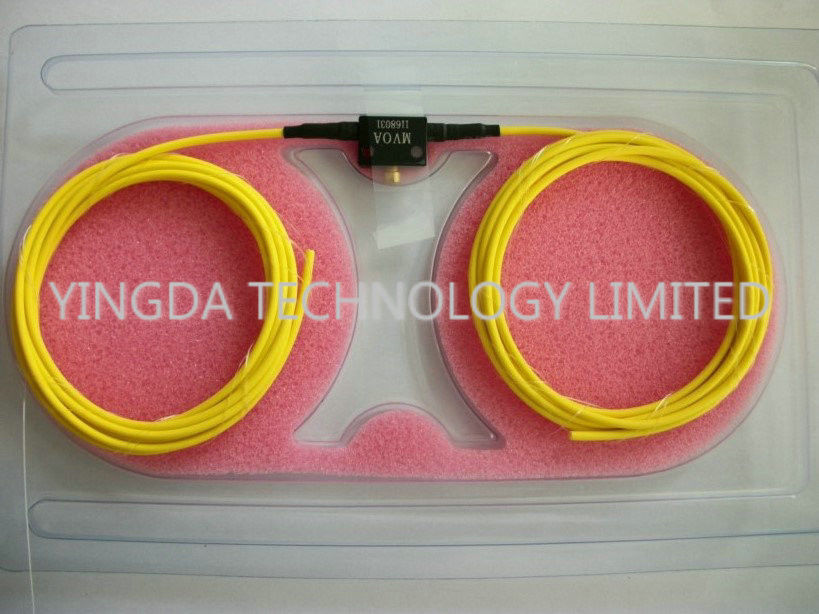

Package: blister box individual package

Polish method: UPC APC PC

Cable type: singlemode, multimode



Cable type: below is 0.9mm blue color
