Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler
  • Nama
  • Nama
  • Nama
  • Nama
  • Nama

Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler

MOQ: 100 PCS
harga: 0.04USD-2.15USD
Kemasan standar: 1 pc / bag or 10 pc/ blister box
Delivery period: 3 days
metode pembayaran: T/T or western Union
Kapasitas Pasokan: 50,000pcs per month
Informasi Rinci
Deskripsi Produk
Peringkat & Ulasan
Informasi Rinci
Tempat asal
Cina
Nama merek
YINGDA
Sertifikasi
ISO,SGS
Model Number
ADB-FC-RD
material:
Metal
color:
blue, gray, black
shape:
round
type:
fiber optic bare adapter
weight:
12g
Fiber type:
single-mode
Nama produk:
kabel mpo ke mpo, kabel mpo ke lc, konektor optik mtp, kaset mtp
Menyoroti:

serat optik coupler

,

adapter serat telanjang

Deskripsi Produk

FC Bare Fiber Adapter, Bare Fiber Optic Adapter Coupler FC / PC  Round





Description



The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the

highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed

flange adapters design and manufactured.



FC Round Bare Fiber Adapter can link bared optic and light source ,testing equipment, light

appearance etc,and the products used for test appearance and temporary conjunction between

fiber optics extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one

side, the other side is a connector that can plug into the equipment.



Feature

  1. Simplex and quickly interconnect
  2. Low insertion loss
  3. Repeatability and exchangeability good
  4. Stabilize the credibility
  5. Interchangeable connector heads available



Application

  • Testing fiber on the reel
  • Optical fiber through connection test
  • Two-way communication during optical-fiber cable installation and maintenance
  • First-aid repair,temporary connection and testing on optical fiber project.



Specification



Shape

Square / Round

Connector

FC/PC, SC/PC, ST/PC, LC/PC

Applicable fiber

SM & MM

Ferrule diameter

123-127 um

Ferrule outder diameter

2.499mm 1.249mm

Cable diameter

250um & 900um

Insertion Loss

≤0.20dB

Repeat ability

＜0.2dB

Tensile strength

100g

Plug time

 >1000 times

Operating Temperature

-40 ~+85℃

Size

Length:40mm, diameter:30mm

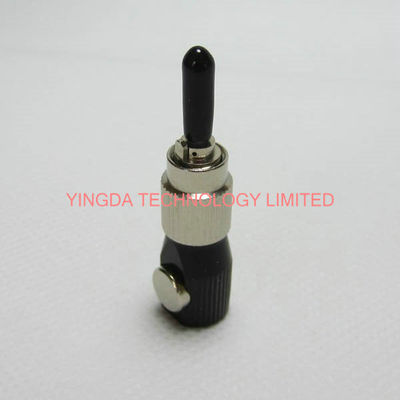

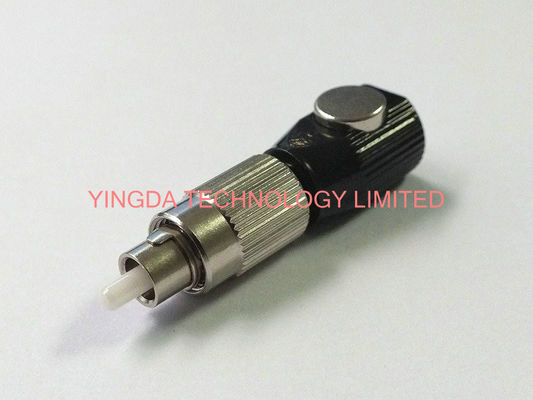

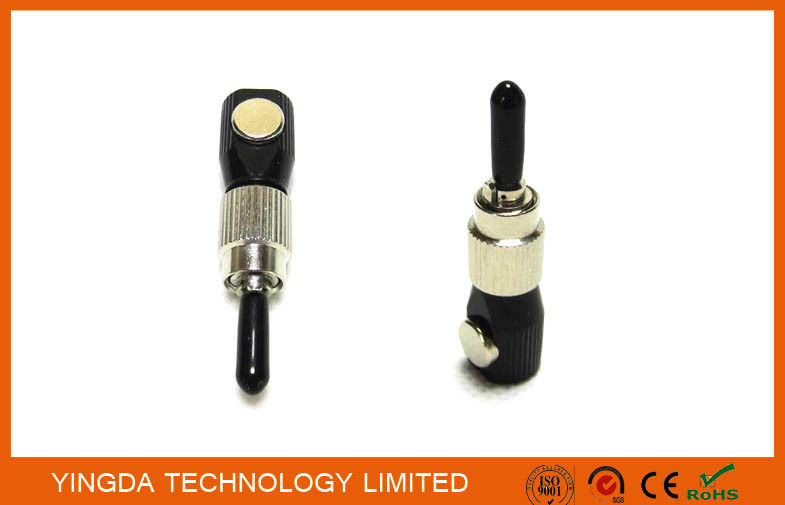

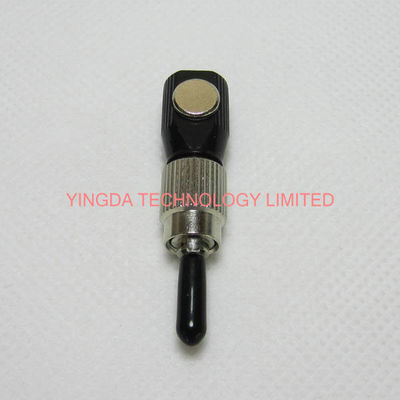

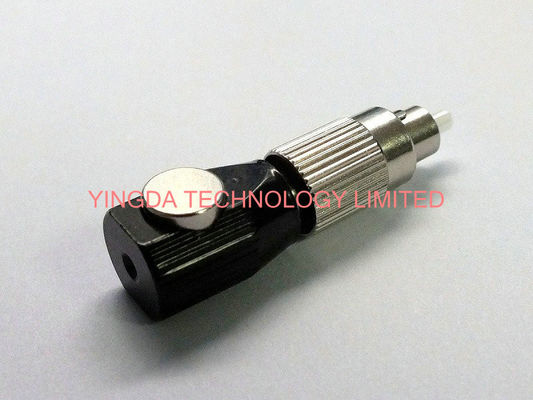

Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler 0Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler 1Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler 2Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler 3Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler 4





Peringkat & Ulasan

Peringkat Keseluruhan

5.0
Berdasarkan 50 ulasan untuk pemasok ini

Cuplikan Peringkat

Berikut adalah distribusi dari semua peringkat
5 bintang
100%
4 bintang
0%
3 bintang
0%
2 bintang
0%
1 bintang
0%

Semua Ulasan

B
B*n
Canada Apr 28.2025
Bermanfaat (3)
Excellent product, complete Items as specified. Special thanks to ms. Milla for such Great service.
*y
United States Feb 10.2024
Bermanfaat (10)
Everything is working as expected. Communication was great for you and the shipping arrived promptly, thank you so much. Definitely will be purchasing from you guys in the future.
Review Image
C
C*d
Ecuador Feb 26.2021
Bermanfaat (3)
Excellent quality, as always! Fantastic product and service!
Review Image
Tag:

serat optik coupler,

adapter serat telanjang,

serat optik adaptor
