Square Fiber Optic Adapter SC SM / MM Simplex Blue Black Fiber Optic Coupler

Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO,SGS
Nomor model ADB-SC-SQ
Kuantitas min Order 100 PCS
Harga Negotiable
Kemasan rincian 1 pc / bag or 10 pc/ blister box
Waktu pengiriman 3 days
Syarat-syarat pembayaran T/T or western Union
Menyediakan kemampuan 50,000pcs per month

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
material Metal, Plastic house color blue, black, gray
shape square type bare fiber optic adapter
weight 12g Fiber type single-mode,multimode
polish methold UPC APC insertion loss <0.2dB
Cahaya Tinggi

serat optik coupler

,

adapter serat telanjang

Tinggalkan pesan
Deskripsi Produk

Square Fiber Optic Adapter SC SM / MM Simplex Blue Black Fiber Optic Coupler





Description



The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the

highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed

flange adapters design and manufactured.



SC Square Type Bare Fiber Adapter can link bared optic and light source ,testing equipment,

light appearance etc,and the products used for test appearance and temporary conjunction between

fiber optics extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one side,

the other side is a connector that can plug into the equipment.



Bare fiber adapter is a kind of professional auxiliary tool for optical fiber test, especially for fiber

emergency repair and temporary connection.



Feature

  1. Simplex and quickly interconnect
  2. Low insertion loss
  3. Good repeatability and exchangeability good
  4. Stabilize the credibility
  5. Interchangeable connector heads available
  6. SC FC LC ST connectors available
  7. Cutomer package OK
  8. 10PCS/ blister box, save shipping cost



Application

  • Testing fiber on the reel
  • Optical fiber through connection test
  • Two-way communication during optical-fiber cable installation and maintenance
  • First-aid repair,temporary connection and testing on optical fiber project.



Specification



Shape

Square / Round

Connector

FC/PC, SC/PC, ST/PC, LC/PC

Applicable fiber

SM & MM

Ferrule diameter

123-127 um

Ferrule outder diameter

2.499mm 1.249mm

Cable diameter

250um & 900um

Insertion Loss

≤0.20dB

Repeat ability

<0.2dB

Tensile strength

100g

Plug time

 >1000 times

Operating Temperature

-40 ~+85℃

Size

Length:40mm, diameter:30mm

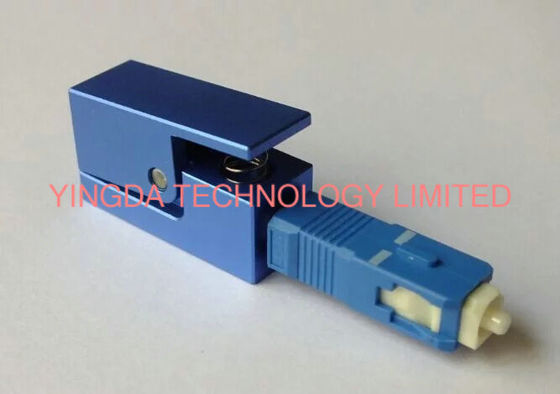

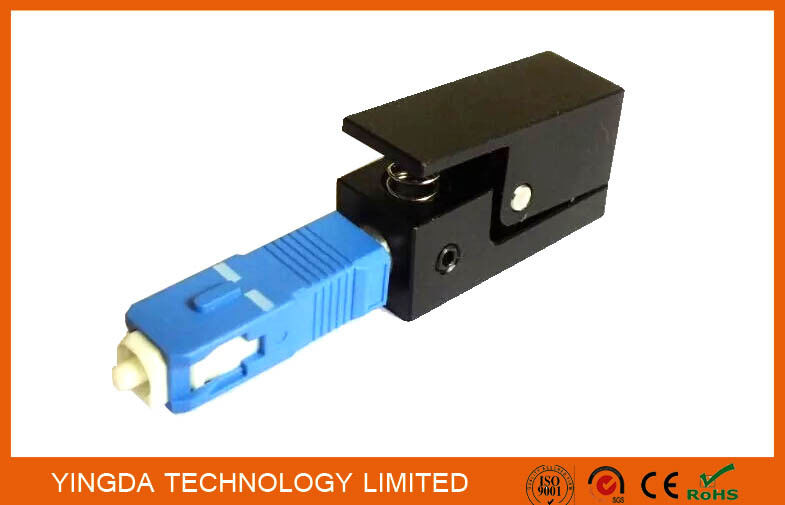

Bare Fiber Adapter Gray Metal Parts Square Type SC/UPC --- Blue House:

Square Fiber Optic Adapter SC SM / MM Simplex Blue Black Fiber Optic Coupler 0Square Fiber Optic Adapter SC SM / MM Simplex Blue Black Fiber Optic Coupler 1

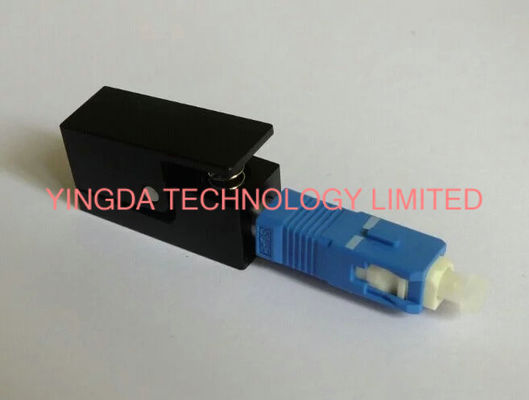

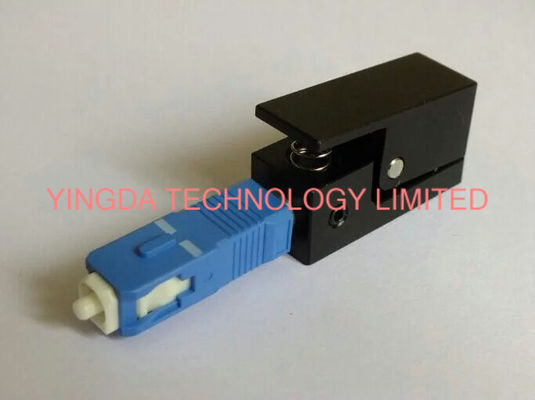

Bare Fiber Adapter Gray Metal Parts Square Type SC/APC -- Green House :



Square Fiber Optic Adapter SC SM / MM Simplex Blue Black Fiber Optic Coupler 2
