Metal Optical Fiber Adapters , Optic Bare Fiber Adapter ST FC LC ST Round

MOQ:	100 PCS
harga:	0.04USD-2.15USD
Kemasan standar:	1 pc / bag or 10 pc/ blister box
Delivery period:	3 days
metode pembayaran:	T/T or western Union
Kapasitas Pasokan:	50,000pcs per month

Informasi Rinci

Deskripsi Produk

Peringkat & Ulasan

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

ISO,SGS

Model Number

ADB-ST-RD

material:

Metal, Plastic

house color:

black

shape:

round

type:

bare fiber adaptor

weight:

Fiber type:

single-mode

polish methold:

insertion loss:

<0.2dB

Nama produk:

kabel mpo ke mpo, kabel mpo ke lc, konektor optik mtp, kaset mtp

Menyoroti:

serat optik coupler

adapter serat telanjang

Deskripsi Produk

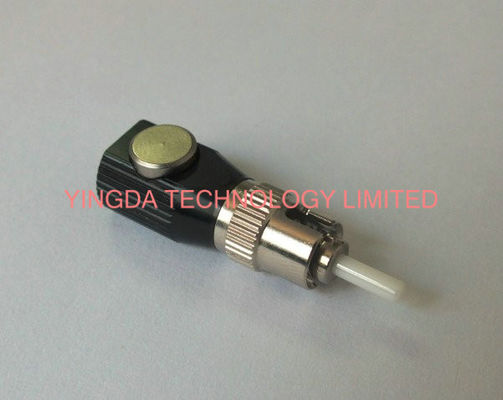

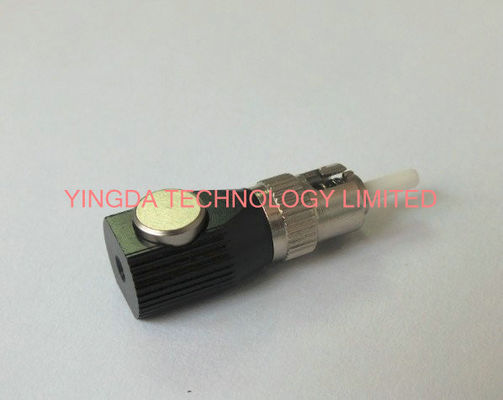

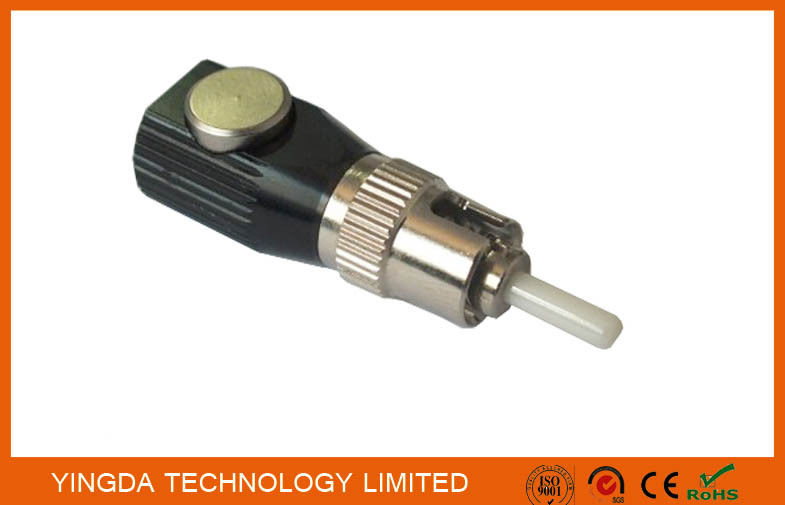

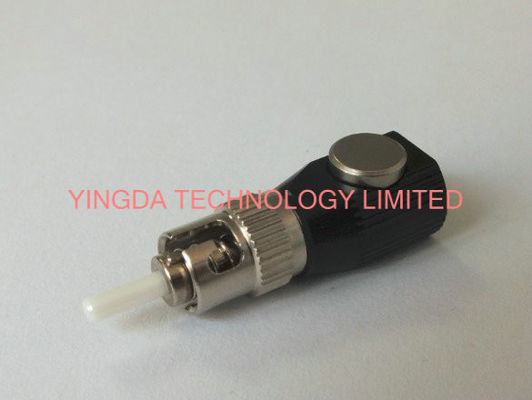

Optical Fiber Adapter ST, Optic Bare Fiber Adapter ST FC LC ST Round Metal

The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the

highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed

flange adapters design and manufactured.

Hybrid adapter can connected different types of fiber optic patch cord, also provide APC end face

connection, duplex or multi-fiber high density installation.

Bare fiber adapter is a kind of professional auxiliary tool for optical fiber test, especially for fiber

emergency repair and temporary connection.

Model: FC/PC, SC/PC,ST/PC,LC/PC available

Main characteristics:

Low insertion loss
Good repeatability
Easy to use
Length: 40MM, Diameter: 13MM
Temperature cycle test:-40-+80 °C
Interchangeability < 0.2dB
Convenient operation, can be observed by the naked eye
Reusable, single mode / multi-mode fiber can be used
Low insertion loss, good reflecting inhibition

Application

Bare fiber connector device production
Experiment fiber test
Testing fiber on the reel
Optical fiber through connection test
Two-way communication during optical-fiber cable installation and maintenance
First-aid repair,temporary connection and testing on optical fiber project.

Specification

Shape	Square / Round
Connector	FC/PC, SC/PC, ST/PC, LC/PC
Applicable fiber	SM & MM
Ferrule diameter	123-127 um
Ferrule outder diameter	2.499mm 1.249mm
Cable diameter	250um & 900um
Insertion Loss	≤0.20dB
Repeat ability	＜0.2dB
Tensile strength	100g
Plug time	>1000 times
Operating Temperature	-40 ~+85℃
Size	Length:40mm, diameter:30mm

How to use:

1. Strip the fiber coating layer (15-20mm) and cleaned with alcohol;

2. Press down the optical fiber adapter switch, push the fiber along the guiding hole slowly until out

of the ceramic ferrule (5-6mm),then relax and open ;

3. Use ruby knife delimit fiber bottom gently so as to expose part of fiber, break off the fiber.

Bare Fiber Adapter Round Package: Blister Box FC SC LC ST is the same

Metal Optical Fiber Adapters , Optic Bare Fiber Adapter ST FC LC ST Round 0
