| Nama merek: | YINGDA |
| Nomor Model: | ADB-FC-RD |
| MOQ: | 100 PCS |
| harga: | 0.04USD-2.15USD |
| Waktu Pengiriman: | 3 days |
| Ketentuan Pembayaran: | T/T or western Union |

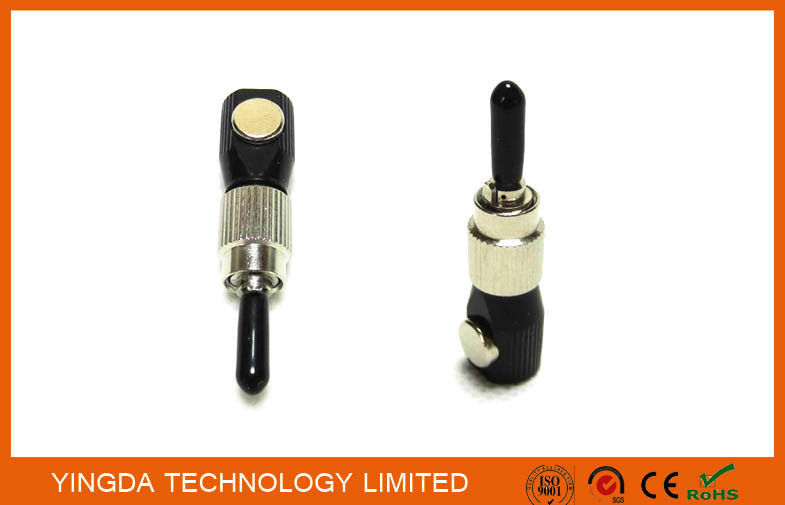

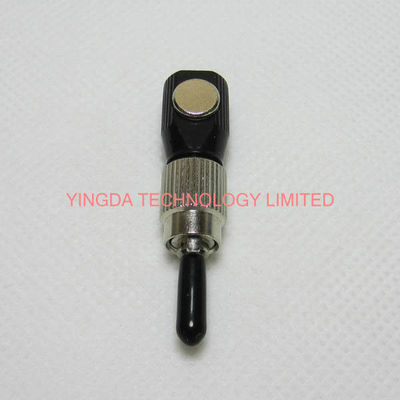

FC Bare Fiber Adapter, Bare Fiber Optic Adapter Coupler FC / PC Round
Description
The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the
highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed
flange adapters design and manufactured.
FC Round Bare Fiber Adapter can link bared optic and light source ,testing equipment, light
appearance etc,and the products used for test appearance and temporary conjunction between
fiber optics extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one
side, the other side is a connector that can plug into the equipment.
Feature
Application
Specification
|
Shape |
Square / Round |
|
Connector |
FC/PC, SC/PC, ST/PC, LC/PC |
|
Applicable fiber |
SM & MM |
|
Ferrule diameter |
123-127 um |
|
Ferrule outder diameter |
2.499mm 1.249mm |
|
Cable diameter |
250um & 900um |
|
Insertion Loss |
≤0.20dB |
|
Repeat ability |
＜0.2dB |
|
Tensile strength |
100g |
|
Plug time |
>1000 times |
|
Operating Temperature |
-40 ~+85℃ |
|
Size |
Length:40mm, diameter:30mm |
video
video
video
|
|
