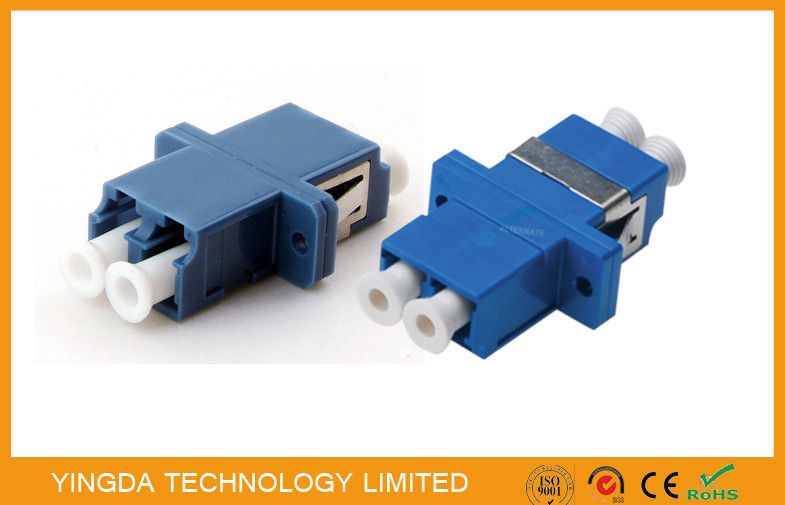

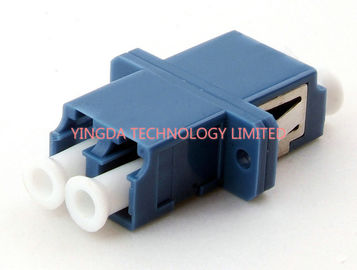

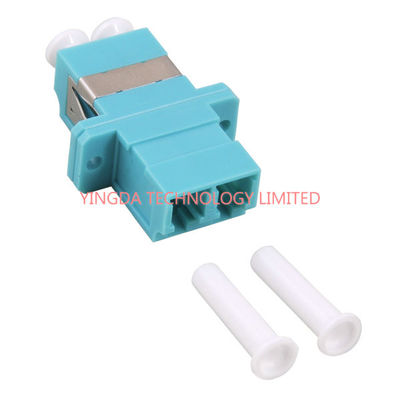

PBT Fiber Optic Adapter LC

MOQ:	1000pcs
harga:	0.04USD-2.15USD
Kemasan standar:	50 pc / box
Periode Pengiriman:	5 working days
metode pembayaran:	T/T or western Union
Kapasitas Pasokan:	200km/ month

Informasi Rinci

Deskripsi Produk

Peringkat & Ulasan

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

ISO,SGS

Model Number

AD-LCS-DX

Fiber count:

duplex, zipcord

connector material:

plastic

adapter color:

green. blue, beige, purple, aqua

sleeve material:

ceramic

fiber type:

SM, MM,OM3,OM4

polish mode:

APC, UPC, PC, SPC

working temperature:

-40 ~ +85 °C

wavelength:

1310nm, 1550nm,850nm

house material:

PBT, ABS

Nama produk:

kabel mpo ke mpo, kabel mpo ke lc, konektor optik mtp, kaset mtp

Menyoroti:

serat optik coupler

adapter serat telanjang

Deskripsi Produk

PBT Fiber Optic Adapter LC Duplex SC Footprint, LC Fiber AdapterSM DX

Features

Low insertion loss <0.2dB
High return loss
Small size, high density
High precision mechanism
Simple installation and operation

Application

Optical fiber communication room / network cabinet
Fiber Optic Cross Cabinet
CATV
EPON
FTTP

Specification

Item	Single mode		multimode
Polish	UPC	APC	UPC	PC
Insertion loss	≤0.2dB	≤0.2dB	≤0.3dB	0.3dB
Return loss	≥50dB	≥60dB	≥50dB	≥35dB
Max. attenuation	0.4dB@1310nm 0.3dB@1550nm	0.4dB@1310nm 0.3dB@1550nm	3.0dB@850nm 1.2dB@1300nm	3.0dB@850nm 1.2dB@1300nm
attenuation	Single mode:1310nm≤0.35dB/km;1550nm≤0.25dB/km multimode:850nm≤3.0dB/km;1300nm≤1.0dB/km
durability	≥1000 / Matings
Working temperature	-30℃~ +70℃

Note: the parameters in the table for reference purposes only, if the numerical change without notice.

Order information

1. End face polish: PC, UPC. APC

2. Cable type; single mode (SM= 9/125) , multimode (MM= 50/125 or 62.5/125)OM3 ;OM4

3. Cable capacity: Simplex or Duplex

4. Cable jacket: PVC,LSZH ,PU...

5. Cable diameter: 0.9mm 1.6mm 2.0mm 3.0mm 4.0mm......

6. Cable length: L=1M,2M,3M `````````(M=Meter) or customized

7. Cable color: customized

All kinds of LC adapter can be choosed:

Simplex, Duplex, Quad, with flange or without flange,shutter type,etc.

PBT Fiber Optic Adapter LC 0
