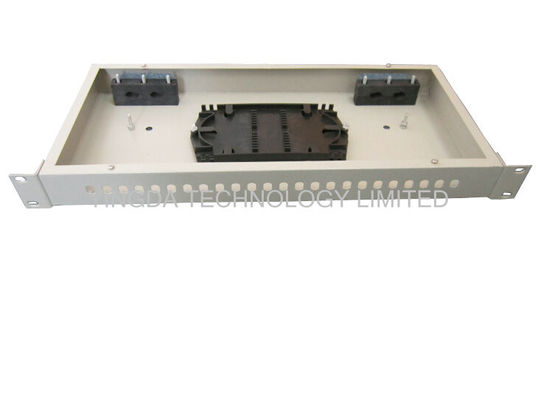

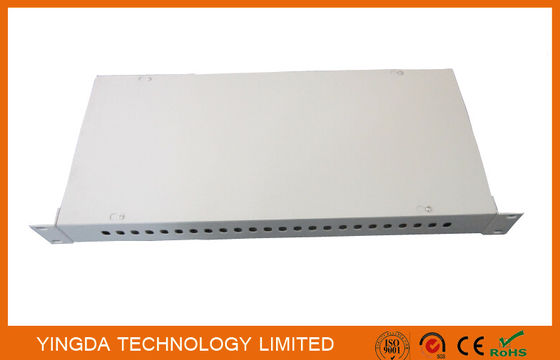

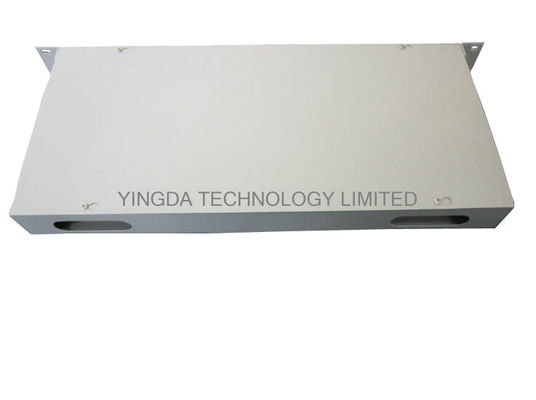

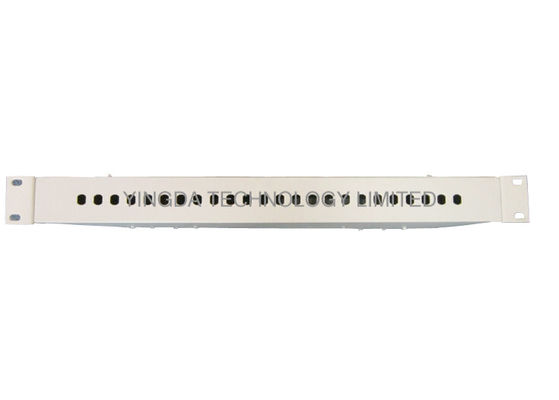

Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel
  • Nama
  • Nama
  • Nama
  • Nama

Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel

MOQ: 50 pcs
harga: Dapat dinegosiasikan
Kemasan standar: 1 pc / box, 5 pcs / carton box
Informasi Rinci
Deskripsi Produk
Peringkat & Ulasan
Informasi Rinci
Tempat asal
Cina
Nama merek
YINGDA
Sertifikasi
ISO
Model Number
GPRP-FC24-D
material:
cold rolled steel
thickness:
0.8mm,1.0mm, 1.2mm
capacity:
24 cores
connector port:
FC or ST ( round port )
application:
19" ODF optical distribution frame
installatino method:
rack mount
color:
white, black
dimension:
480*200*1U mm
Menyoroti:

rack mount odf

,

sliding panel patch

Deskripsi Produk

Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel





19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable

and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made

of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation

is convenient.



Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24

cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U. It is smart design to

supply firm protection for optical cable terminal connection and optical fiber adapter installation.

It is a combineof termination, protection, connection, management of fiber optic cables.



Features

  • Flexible standard 19” cabinet installation
  • Adapter FC SC ST and LC available
  • Complete bending radii protection
  • Sufficient spooling area for redundant fibers
  • Enough space for fibers and pigtails to enhance fibers protection, pigtails protection and connections.



Specification



ambient temperature

－25℃～＋40℃

relative humidity

≤85%(＋30℃)

atmospheric pressure

70kPa～106kPa

Insulation resistance

fiber optic cable terminal and cable metal strength member,

fiber optic cable metal components itself, fiber optic cable

metal components and the ground, the insulation resistance

should > 2 x 104MΩ.

Dielectric strength

fiber optic cable terminal and cable metal strength member,

 fiber optic cable metal components itself, fiber optic cable

metal components and the ground, under 15kV voltage for

1min without breakdown, no arcing phenomena.







Order information



Model

Dimension (mm)

Max Capacity (cores)

GPRP-SC12

480×200×1U

12

GPRP-SC24

480×200×1U

24

GPRP-SC48

480×200×2U

48

GPRP-FC12

480×200×1U

12

GPRP-FC24

480×200×1U

24

GPRP-FC48

480×200×2U

48

GPRP-ST12

480×200×1U

12

GPRP-ST24

480×200×1U

24

GPRP-ST48

480×200×2U

48



When order, pls tell us below details:



1. Complete assembly with adapter and pigtail  OR empty panel optional

2. Box color: Black , White



Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel 0Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel 1
