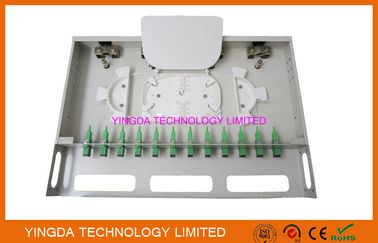

12 Ports Fiber Optic Patch Panel Rack Mount Fiber Patch Panel ODF SC Couplers And Pigtails
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xmaterial | cold-rolled steel | steel thickness | 1.0mm |
---|---|---|---|
color | white | dimension | 430*300*44.5mm |
cable ports | 4 pcs at back of the box | front port | adapter port |
adapter | SC, FC, LC, ST, E2000 | max capacity | 24cores SC / 1U ; 2U:48 cores SC |
customer LOGO | silk print | fiber mode | singlemode, multimode |
sample | ok | ||
Cahaya Tinggi | frame distribusi optik,sliding panel patch |
12 Ports Fiber Optic Patch Panel Rack Mount Fiber Patch Panel ODF SC Couplers And Pigtails
Model: GPRF-1U-SC12
Main introduction:
Material: box body using high-quality cold-rolled steel material, and the surface use matt spray
processing technology, strong adhesion, it is not easy to fall off, beautiful and durable
Usage: cable terminal branches terminating, 19 "standard structure, rack installation, suitable for
use in the installation of the FC, SC, St, LC adapter, dust proof deign, easy to operate.
Structure characteristics:
- The performance index of the product conforms to the national standard YD/T925 - 1997 requirements.
- unique 1 ~ 4 inlets and 1 ~ 48 outlet ports for fibers, enhance the flexibility.
- Indoor cable inlet outlet are made of oil resistant rubber body to seal, the user can according to their own needs to choose cable, fiber outlet is the use of punctured, to ensure that the box sealing.
- box overlay structure fused splice tray and independent insulated grounding device, the fiber core configuration, expansion and cable grounding flexible, convenient and safe to use.

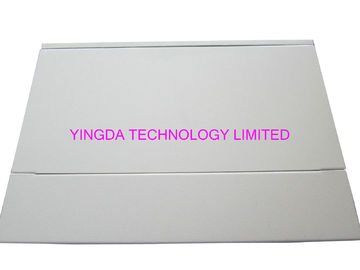

- The box is designed removable dustproof cover panel, can be completely sealed, avoid external dust, more scientific and more convenient.
- The steel thickness:1.0mm
Main technical index:
- The dimensions (mm): (length * width * height) 430*300*44.5
- Weight:4.0KG
- Fiber radius of curvature:≥40mm
- The additional loss: fiber without additional loss in the holding tray
- The fiber length in the tray: 1.6m
- The fiber maximum capacity: SC/FC 48 cores, LC up to 96 cores
- The applicable temperature range: -40℃~+60℃
- The lateral pressure: 500N
- Anti-shock: 750N
Specifications
Type |
Dimension (mm) |
Max capacity (core) |
GPRF-1U-SC24 | 430*300*1U | 24 |
GPRF-1U-FC24 | 430*300*1U | 24 |
GPRF-1U-2SC12 | 430*300*1U | 24 |
GPRF-1U-2SC24 | 430*300*1U | 48 |
Standard accessories
Item | quantity |
terminal box body: | 1sets |
mounting ears: | 1 sets |
adapter mounting screws: | 96pcs |
welding mark | 4 sets |
optical fiber protection tube | 2 ~ 48pcs |
cable tie: | 4 ~ 16pcs |

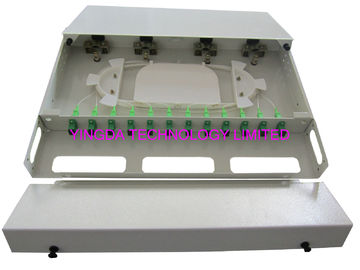

The front adapter can use FC, SC, LC, ST, E2000 adapters. above photo is: 24 pieces FC adapters square.

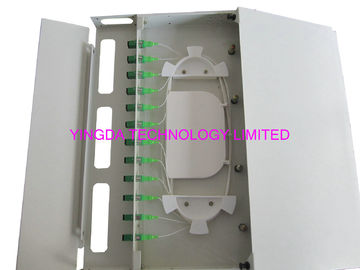

The front adapter can use FC, SC, LC, ST, E2000 adapters.
above photo is: 12 pieces adapters FC square;
the adapter panel can be flexible changed into SC, LC or ST types, only change the adapter panel modular, easy to install and use.
Packaging information:
Model | Inner package size | Inner package weight | Outer package size | Outer package weight | Outer package quantity |
GPRF | 475*335*44.5mm | 4.0kg | 485*400*350mm | 22kg | 5pcs |
YINGDA produces all kinds of fiber optic terminal box, fiber optic patch panels. it can be rack moun, sliding out with drawer, dustproof type. The front adapter panel can be fixed, or flexible to change with adapter panels. If you have special requirements we can design and make your own box.
- Sample can be offered
- Customer logo can be print.
- Pigtails or adapters can be pre-temrinated at factory.
- 100% brand new material and package.
