FC / PC Female to Female Fiber Optic Coupler Flange Attenuator 5dB Single Mode
  • Nama
  • Nama
  • Nama
  • Nama

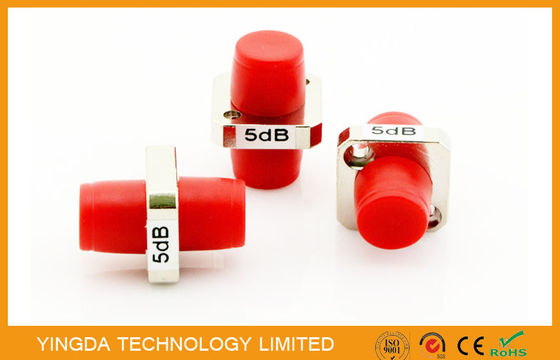

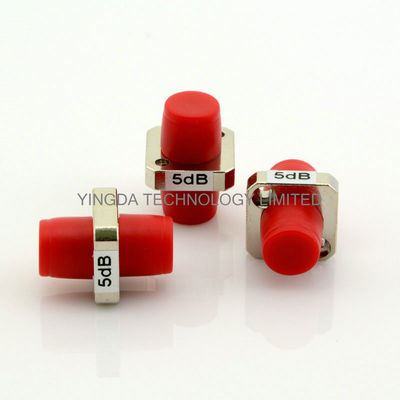

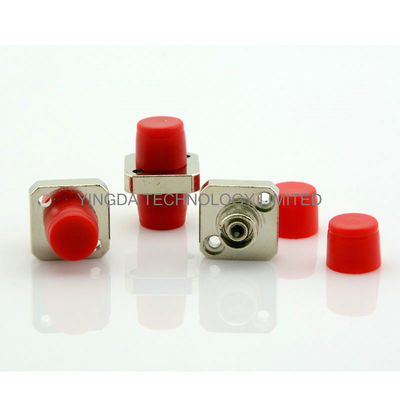

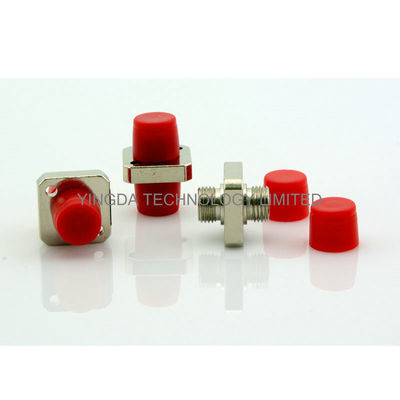

FC / PC Female to Female Fiber Optic Coupler Flange Attenuator 5dB Single Mode

MOQ: 100PCS
harga: Dapat dinegosiasikan
Kemasan standar: 1 pc / plastic bag
Delivery period: 3-5 days
metode pembayaran: T/T or western Union
Kapasitas Pasokan: 50,000pcs per month
Informasi Rinci
Deskripsi Produk
Peringkat & Ulasan
Informasi Rinci
Tempat asal
Cina
Nama merek
YINGDA
Sertifikasi
ISO
Model Number
ATTN-FCS-01-R05
Attenuation:
5 dB
wavelength range:
1260-16500nm
test wavelength:
1310nm, 1550nm
material:
metal zinc alloy or copper
Additional loss:
0.1dB
Working temperature::
-40～+85 (℃)
Fiber optic type:
single mode
standard:
GR910, IEC
Nama produk:
adaptor jaringan serat, kopling serat optik, adaptor konverter media, attenuator gelombang mikro, at
Menyoroti:

optical fiber attenuator

,

inline optical attenuator

Deskripsi Produk

FC / PC Female to Female Attenuator, Fiber Optic Coupler Attenuator 5dB





Optical adapter flange type attenuator is used for attenuation of optical power device, which is

mainly used for index measurement, short distance communication system fiber signal attenuation

and  test and other occasions.



Optical fiber attenuator as a kind of optical passive device, debug the optical power, debug optical

instrument calibration, and use for optical signal attenuation. It is made of attenuation optical fiber

which mix with metal ions, so it can adjust the light power to the required level.





Specification

  1. Wavelength: 1260~1620nm
  2. Initial Insertion Loss < 1.0dB
  3. Attenuation Range:1dB-60dB
  4. Fiber: SMF-28e
  5. Cable option: bare fiber/0.9mm loose tube/2mm cable
  6. Connector Option: FC/SC/LC.etc.



Order information





Fibery type

Cable diameter

Fiber length

Connector type



A=SM

S=customer specify

3=3mm fiber

2=2mm fiber

09=900 loose tube

S=customer specify

01=1M

02=2M

S=customer specify

0=None

1=FC/PC

2=FC/APC

3=SC/APC

4=SC/PC

5=ST

6=LC

7=customer specify



FC / PC Female to Female Fiber Optic Coupler Flange Attenuator 5dB Single Mode 0

Peringkat & Ulasan

Peringkat Keseluruhan

5.0
Berdasarkan 50 ulasan untuk pemasok ini

Cuplikan Peringkat

Berikut adalah distribusi dari semua peringkat
5 bintang
100%
4 bintang
0%
3 bintang
0%
2 bintang
0%
1 bintang
0%

Semua Ulasan

P
P*e
South Korea Jan 31.2025
Bermanfaat (5)
It was sent very quickly Service: Good service from my salesperson. And low IL ≤0.35dB
Review Image
Review Image
C
c*t
Czech Republic Jun 6.2023
Bermanfaat (20)
Fiber cleaners were sent on time and delivered very quickly. Price is great and their SC cleaners do their job very well. Will continue cooperation further.
H
H*d
Morocco Sep 6.2022
Bermanfaat (5)
This enclosure worked perfectly, well designed tray inside for spooling excess fiber. Solid post / clamp to secure jacket .Very happy with product , would buy again.
Tag:

build out attenuator,

inline optical attenuator,

optical fiber attenuator
