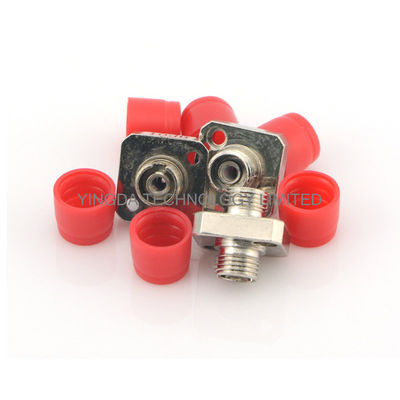

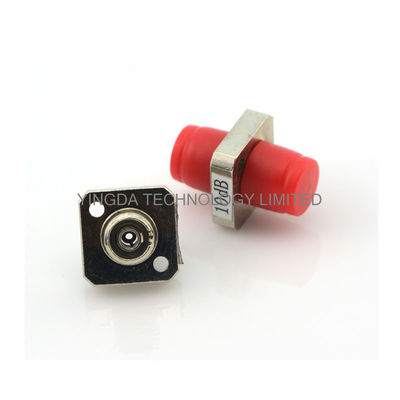

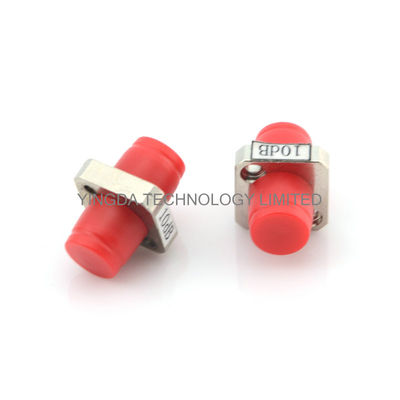

FC / PC Female to Female Fiber Optic Attenuator Adapter 5dB Flange Type
  • Nama
  • Nama
  • Nama
  • Nama

FC / PC Female to Female Fiber Optic Attenuator Adapter 5dB Flange Type

MOQ: 100PCS
harga: Dapat dinegosiasikan
Kemasan standar: 50 pc / plastic blister box
Delivery period: 3-5 days
metode pembayaran: T/T or western Union
Kapasitas Pasokan: 50,000pcs per month
Informasi Rinci
Deskripsi Produk
Peringkat & Ulasan
Informasi Rinci
Tempat asal
Cina
Nama merek
YINGDA
Sertifikasi
ISO
Model Number
ATTN-FCS-01-R10
Attenuation:
10 dB
wavelength range:
1260-16500nm
test wavelength:
1310nm, 1550nm
material:
metal zinc alloy or copper
Additional loss:
0.1dB
Working temperature::
-40～+85 (℃)
Fiber optic type:
single mode
standard:
GR910, IEC
Nama produk:
adaptor jaringan serat, kopling serat optik, adaptor konverter media, attenuator gelombang mikro, at
Menyoroti:

build out attenuator

,

inline optical attenuator

Deskripsi Produk

FC / PC Female to Female Attenuator, Fiber Optic Attenuator Adapter Type 5dB





Optical fiber adapter flange type attenuator is used for attenuation of optical power device, which is

mainly used for index measurement, short distance communication system fiber signal attenuation

and  test and other occasions.



FC/PC Optical fiber attenuator as a kind of optical passive device, debug the optical power, debug

optical instrument calibration, and use for optical signal attenuation. It is made of attenuation optical

fiber which mix with metal ions, so it can adjust the light power to the required level.





Specification

  1. Wavelength: 1260~1620nm
  2. Initial Insertion Loss < 1.0dB
  3. Attenuation Range:1dB - 30dB can be choose
  4. Fiber: SMF-28e
  5. Cable option: bare fiber/0.9mm loose tube/2mm cable
  6. Connector: FC/SC/LC/ST/MU/E2000 .etc.



Order information





Fibery type

Cable diameter

Fiber length

Connector type



A=SM

S=customer specify

3=3mm fiber

2=2mm fiber

09=900 loose tube

S=customer specify

01=1M

02=2M

S=customer specify

0=None

1=FC/PC

2=FC/APC

3=SC/APC

4=SC/PC

5=ST

6=LC

7=customer specify





FC / PC Female to Female Fiber Optic Attenuator Adapter 5dB Flange Type 0
