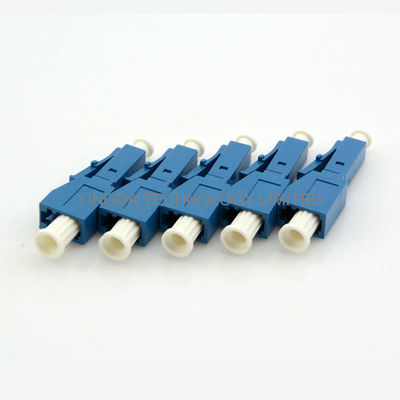

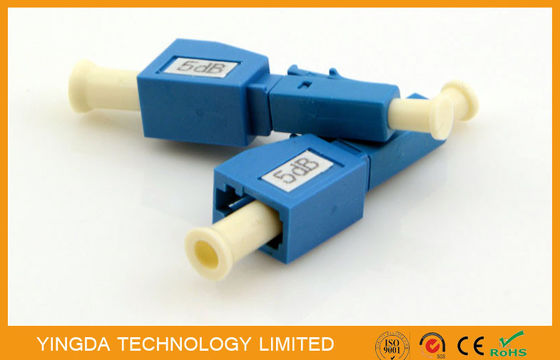

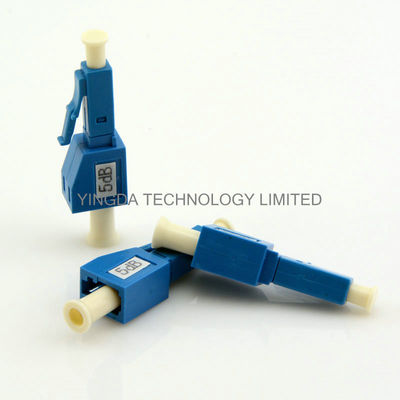

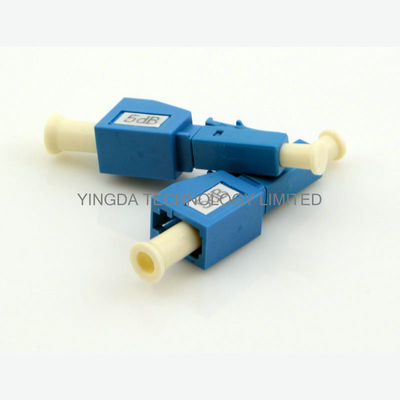

NTT Standard LC / UPC Build Out Fiber Optic Attenuator For Broadband , F-M Attenuator

MOQ:	100PCS
harga:	Dapat dinegosiasikan
Kemasan standar:	1 pc / plastoc bag
Periode Pengiriman:	3-5 days
metode pembayaran:	T/T or western Union
Kapasitas Pasokan:	50,000pcs per month

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

Model Number

ATTN-LCS-01-B03

Attenuation:

1dB - 20dB fix

test wavelength:

1310nm, 1550nm

body material:

Plastic

Additional loss:

0.1dB

Working temperature::

-40～+85 (℃)

Fiber optic type:

single-mode, multimode

industry standard:

Telcordia TA-NWT-001209

connector type:

SC/APC

color:

dust cap: white, connector body: blue

connector shape:

female to male attenuator

Nama produk:

adaptor jaringan serat, kopling serat optik, adaptor konverter media, attenuator gelombang mikro, at

Menyoroti:

build out attenuator

inline optical attenuator

Deskripsi Produk

LC/UPC Build Out Attenuator, LC F-M Attenuator, LC Fixed Plug In Attenuator

Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution

adjustable attenuator which one end is connector type, the other end is adapter type (known as

male to female) .

Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.

Features

Single mode and Multimode
Zirconia sleeves or Phosphor bronze sleeves
NTT standard compatible
Increases panel density and quick plug in installation
New SC footprint for duplex and 4 way design, more compact for most patch
Compliant with Bellcore GR-910-CORE
All parts compliant with ROHS

Application

Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTP

According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.

Due to mature production process, high test and quality control, now you can order 1dB,2dB,

3dB,5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.

Technical Parameter

Return Loss	≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)
Attenuation Tolerance(dB)	1-5dB＜±0.5 dB
	5-10dB＜±10%
	11-25dB＜±5%
Operating Wavelength(nm)	1310±10nm
	1550±10nm
	1310 and 1550±10nm
Operating Temperature(℃)	-40℃～+75℃

NTT Standard LC / UPC Build Out Fiber Optic Attenuator For Broadband , F-M Attenuator 0
