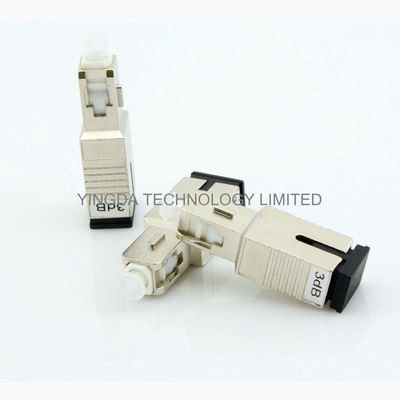

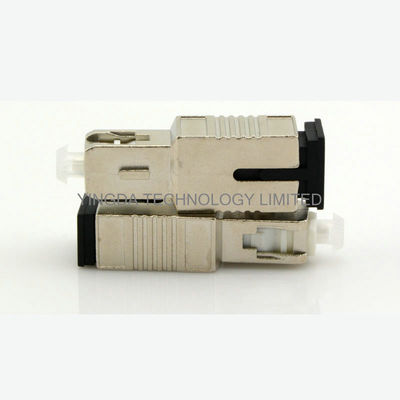

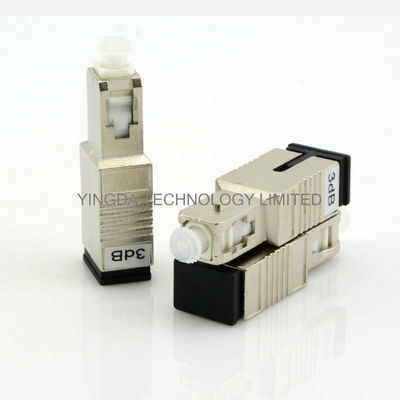

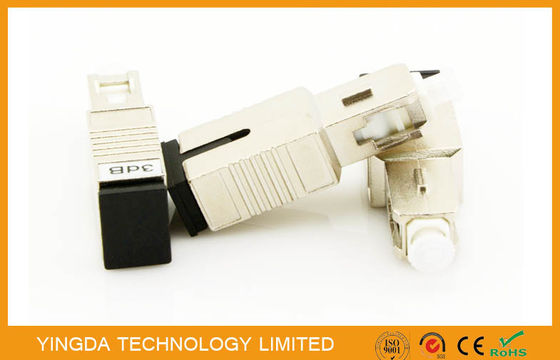

Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network

Produk

Kotak Serat Optik

Fiber Optic Splitter Box

Serat Optik PLC Splitter

Kotak Kabel Serat Bersama

Kabel MPO MTP

serat optik dikepang

serat optik kabel patch

Fiber Optic Adapter

Serat optik Attenuator

Field Installable Connector

FTTH tarik kabel

serat optik patch panel

Fiber Optic sambatan penutupan

Kit Alat Serat

Unit Jaringan Optik

Kit Pemasangan Kabel

Kabel AOC

Kabel DAC

WDM CWDM DWDM

Modul SFP

Hubungi Kami

sales@yingdapc.cn

+86 18688982406

Hubungi Sekarang

Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network

MOQ:	100PCS
harga:	Dapat dinegosiasikan
Kemasan standar:	1 pc / plastoc bag
Delivery period:	3-5 days
metode pembayaran:	T/T or western Union
Kapasitas Pasokan:	50,000pcs per month

Informasi Rinci

Deskripsi Produk

Peringkat & Ulasan

Informasi Rinci

Tempat asal

Nama merek

YINGDA

Sertifikasi

Model Number

ATTN-SCF-01-B03

Attenuation:

test wavelength:

1310nm, 1550nm

body material:

Plastic

Additional loss:

0.1dB

Working temperature::

-40～+85 (℃)

Fiber optic type:

single-mode

industry standard:

Telcordia TA-NWT-001209

connector type:

SC/PC

color:

dust cap: white, connector body: blue

connector shape:

male female type

Nama produk:

adaptor jaringan serat, kopling serat optik, adaptor konverter media, attenuator gelombang mikro, at

Menyoroti:

build out attenuator

optical fiber attenuator

Deskripsi Produk

LC Optic Attenuator Fixed Type 10dB, 1-20dB Fiber Attenuator LC/PC For CATV FTTH

Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution

adjustable attenuator which one end is connector type, the other end is adapter female type.

According to the ferrule end face it can be divided into PC and APC,attenuation is very selective,

0 ~ 30dB optional, wavelength 1250 to 1650nm.

Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.

Now we can offer 1dB,2dB, 3dB, 4dB, 5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.

Features

High precision attenuation value
Low additional loss
High durability
High reliability and stability
Connector type: FC, SC, LC, ST, FC/SC or other type

Application

Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTP network

Technical Parameter

Return Loss	≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)
Attenuation Tolerance(dB)	1-5dB＜±0.5 dB
	5-10dB＜±10%
	11-25dB＜±5%
Operating Wavelength(nm)	1310±10nm
	1550±10nm
	1310 and 1550±10nm
Operating Temperature(℃)	-40℃～+75℃

Order information

Attenuator	Item
Adapter type
	FC/APC fixed attenuator 1/2/3/4/5/8/10/15dB
	SC/PC fixed attenuator 1/2/3/4/5/10/15dB
	SC/APC fixed attenuator 1/2/3/4/5/8/10/15dB
Female to male type (F-M)	FC/SM/UPC build out (plug-in) attenuator 1/2/3/4/5/10/15dB
	SC/SM/UPC buid out (plug-in) attenuator 1/2/3/4/5/10/15dB
	FC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB
	SC/SM/APCbuild out (plug-in) attenuator 1/2/3/4/5/10/15dB
	LC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB
Variable(VOA) type	FC/LC/ST/SC connector mechanical 1~30dB Variable attenuator (MVOA attenuator)

Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network 0

Other types female to male attenuator

Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network 2
