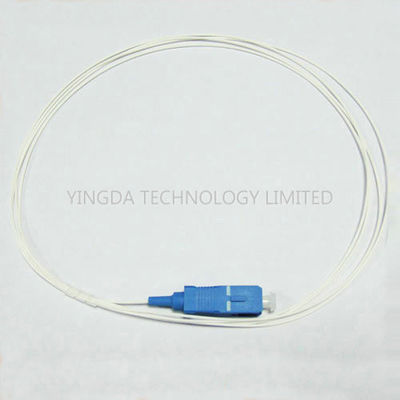

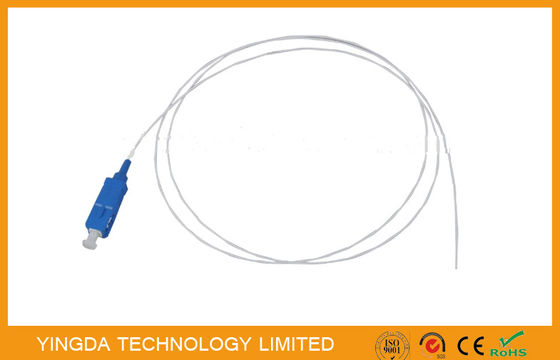

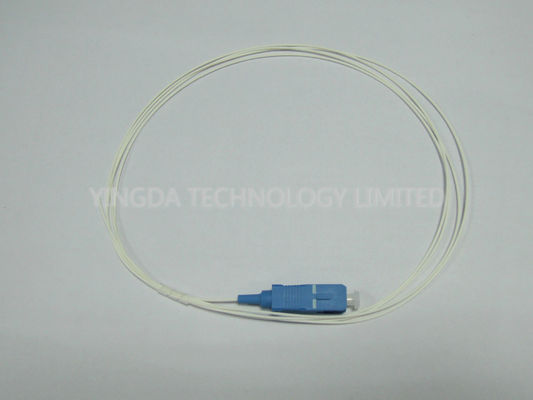

PVC 1.5Mtrs 0.9mm SC / UPC Fiber Optic Pigtail SM Loose Buffer / Kabel Jumper
Tempat asal | Cina |
---|---|
Nama merek | YINGDA |
Sertifikasi | ISO SGS ROHS |
Nomor model | FPC-SC-OS1-09-12 |
Kuantitas min Order | 500 pcs |
Harga | negotiable |
Kemasan rincian | 1 pc/ bag, 1500pcs / carton box |
Waktu pengiriman | 7days after payment |
Syarat-syarat pembayaran | Western Union, T/T |
Menyediakan kemampuan | 200,000 pcs per month |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xconnector | SC/UPC | fiber count | simplex |
---|---|---|---|
insertion loss | <0.2dB | fiber type | 9/125um G657A1 |
package | plastic bag | cable diameter | 0.9mm,2.0MM,1.6MM,1.8MM |
jacket | LSZH,pvc | connector color | white, yellow |
temperature | -40~+85°C | customer logo | yes |
wavelength | 1310nm, 1550nm | ||
Cahaya Tinggi | pigtail serat optik,pita kuncir |
Pigtail SC SM 1.5Mtrs 0.9mm, SC/UPC Fiber Optic Pigtail SM Loose Buffer
Fiber optic pigtail is widely used in fiber optic terminal box, ODF rack , cabinet to connect with
fiber optic media converter/transceivers(also use coupler, jumper/patch cord,etc.)
ITU-T International Telecommunication Union Telecommunication Standardization Organization
(ITU-T for ITU Telecommunication Standardization Sector), specified three kinds of commonly
used optical fiber: G.652 fiber,G.653 fiber and G.655 fiber.
Optical fiber fusion technology is mainly to connect the fiber and fiber or fiber and pigtails by
fusion splicer. It make the bare fiber of cable with the pigtails fused together into a whole,but
the pigtail has a separate connector. Through connected with optical fiber transceiver, we can
connect the fiber with twisted pair cable to the socket. The main tools need in splicing: optical
fiber termination box, optical fiber transceiver(media converter), pigtail, coupler, special use
cable stripper, optical fiber clever, etc.
Feature
1. Low insertion loss, high return loss
2. High dense connection, easy for operation
3. High credibility and stability
4. Good in repeatability and exchangeability
Application
1. Testing equipment
2. FTTX+LAN
3. Optical fiber CATV
4. Optical communication system
5. Telecommunication
Specification
Parameter |
Unit |
FC, SC, LC/ Armoured fiber pigtail |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
Insertion loss (typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
Operating temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
Storage temperature |
°C |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
Cable diameter |
mm |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
