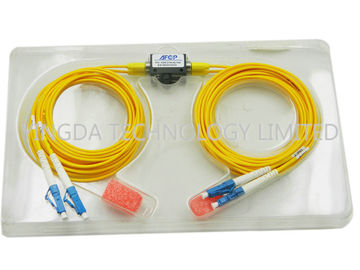

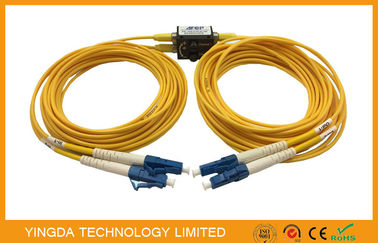

LC Duplex Mini Module Variable Optical Attenuator Mechanical VOA Collimator Type
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xAttenuation | 0- -40 dB Variable | test wavelength | 1260~1620 nm |
---|---|---|---|
type | mechanical adjustable attenuator | Working temperature | -40~+85 (℃) |
Fiber optic type | single-mode,multimode | connector type | SC ST FC LC MU all ok |
polish | UPC APC PC | connector plug time | 1000 times |
package | 1pc in a blister box | connector color | green,blue,beige |
cable diameter | 0.9mm, 2.0mm | ||
Cahaya Tinggi | build out attenuator,inline optical attenuator |

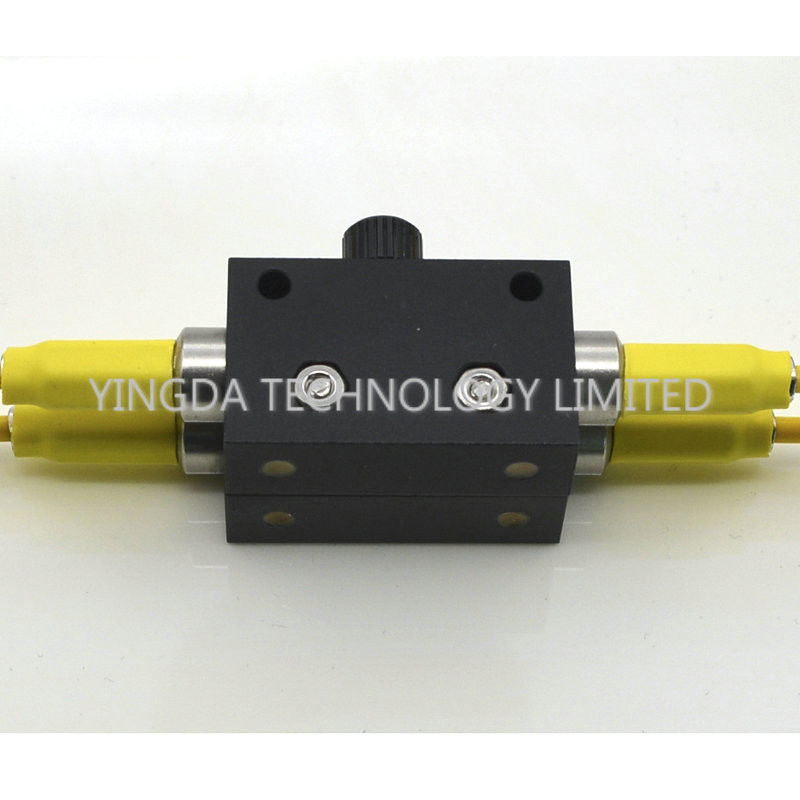

LC Duplex Mini Module Variable Optical Attenuator Mechanical VOA Collimator Type Singlemode
Attenuator is in the specified frequency range, a kind of circuit for introducing a predetermined
attenuation.The unit by the decibels which introduced attenation and ohmic characteristic of its
Impedance. Attenuators are widely used in the cable television system in order to meet the
requirements of multi port for electric level such as the amplifier input, output level control,
branch attenuation control.
Product features:
- Ultra high resolution
- Environment protection, perfect stability and reliability
- Can be used in different wavelength (1260-1620nm)
Application:
- Telecommunication Network
- CATV Network
- Data communication
- Instrumentation
- Local Area Network
- Fiber Optic Access Network
Technical Performance
Item |
value |
Operating Wavelength (nm) |
1310±30&1550±30 |
Insertion Loss (dB) |
<0.9 (With connectors) |
Max. Attenuation Range (dB) |
0.9-50 |
Insertion Loss Temperature Sensitivity (dB/°C ) |
<0.005 |
PDL (dB) |
<0.15 (<15dBattenuation) <0.25 (16~50dBattenuation) |
Return Loss (dB) |
>45 (UPC) |
Maximum Power Handling (mW) |
300 |
Operating Temperature (°C) |
-5~+70 |
Storage Temperature (°C) |
-40 ~+85 |
Connector type |
LC / UPC |
Pigtail |
SMF-28e(Φ2.0mmcable) |
Cable Length (m) |
1.0~1.1 |
Dimension (mm) |
26.0 x 16.0 x 16.0 |
Note: under normal conditions, not including connectors, welding device and end face loss
Order information
Item |
Wavelength working/nm |
Fiber type |
Pigtail length /meter |
Connector |
Mechanical Variable Attenuator (MVOA) |
F=1260~1620 |
SM=single mode |
1=1.0m |
1=FC/APC |
FC MVOA optical fiber attenuator cable can be 0.9mm or 2.0mm
connectors: SC FC LC ST ,etc
Package: blister box individual package
Polish method: UPC APC PC
Cable type: singlemode, multimode
