2 Doors ODN PON Fiber Optic Termination Box, Wall Mount Terminal Box With Key

Informasi Dasar
Place of Origin: SHENZHEN,CHINA
Nama merek: YINGDA
Sertifikasi: ISO SGS ROHS
Model Number: GP(05)C
Minimum Order Quantity: 100 pcs
Harga: negotiable
Packaging Details: 1pc / box, 5 pcs / carton box
Delivery Time: 5-8days after payment
Supply Ability: 500,000 pcs per month
Hubungi sekarang
Informasi Detail
material: cold rolled steel color: white
capacity: 12 Cores adapter: FC SC ST LC
cable ports: 4 pcs application: FTTH FTTX FTTB ODN PON network
dimension: 350*300*80mm thickness: 1.0mm
fiber type: singlemode, multimode installation: wall mount
doors: 2 pcs with key

Deskripsi Produk

2 Doors ODN PON Fiber Optic Termination Box, Wall Mount Terminal Box With Key





Sell point:

  1. Wall mounting metal box,not plastic, can use long and high strength function
  2. 2 Doors open with key, safe guarantee
  3. can install 12 Fibers pigtail and 12 pcs SC adapters inside
  4. MOQ: 50PCS
  5. customer logo,label is available



Outdoor wall mount optical fiber distribution box is distribution equipment to connect,protect and

management the fiber and cable in fiber optic communication networ. It consist of termination

access module and rack.



This terminal box e can realize the optical fiber fixed, ground protection, optical fiber connection,

rational distribution, redundant fiber coiling, distribution scheduling and other functions.





Features



1. Available for small capacity communication system,wall mounting,reasonable and compact structure,

    harmonized with machine room

2. The cabinet is composed of two parts,one links with optical cables for fusion connection

     between optical cable and fiber pigtail and another links with patch cord.

3. Provide fusion and storage for optical cables

4. Reliable protection appliance of fixing,stripping and earthing for optical cables.

5. Whole range protected design for fiber lay to ensure the bending radius=40mm

6. Provide various accessories to avoid any unexpected damage to the fiber

7. 1U max hold 12 core SC/FC/ST (24 pcs duplex port LC or MT-RJ) optical fiber connector;

8. Closed management;

9. All front operation, quick and convenient to install





Specification



Type

Dimension

(mm)

Max capacity

 (core)

Carton size

(mm)

GW.

(kg)

Qty/carton

(pc)

GP(05)C-FC12

350*300*80

12

405*355*605

19.5

5

GP(05)C-SC12

350*300*80

12

405*355*605

19.5

5



Note:

Cold rolled steel sheet,electrostatic spraying.

Available for 12pcs adapters FC,ST,SC,LC

Wall mount

max capactiy: 12 Fibers only

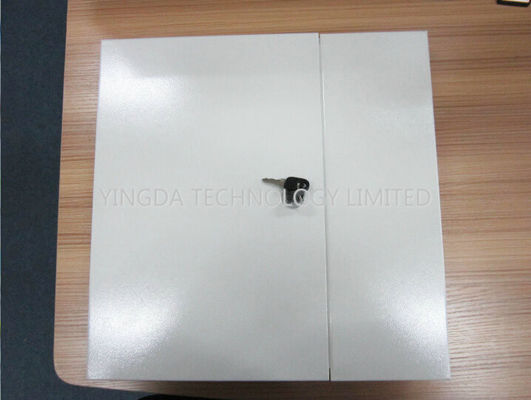

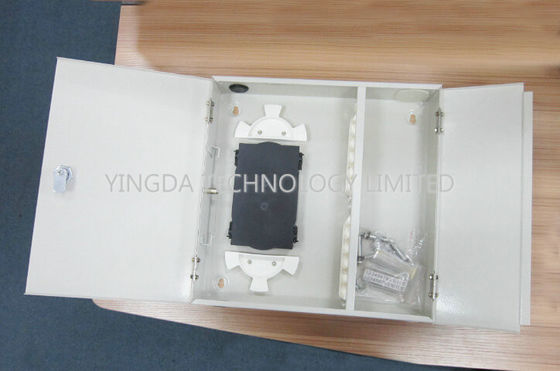

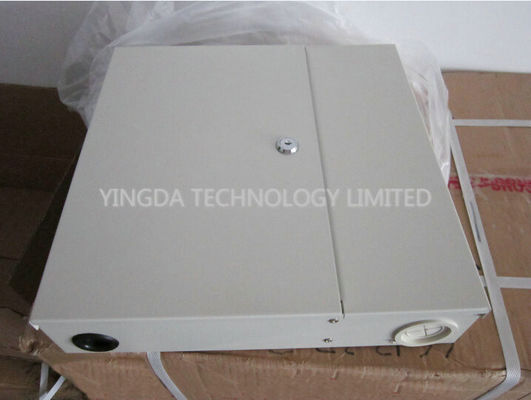

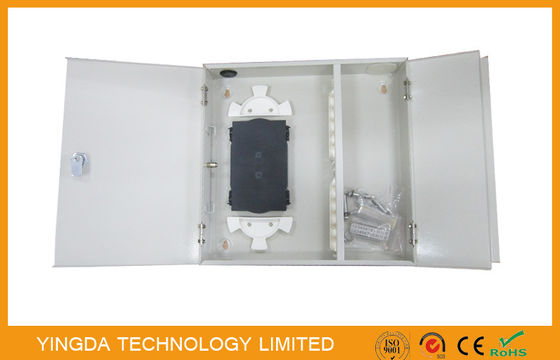

2 Doors ODN PON Fiber Optic Termination Box, Wall Mount Terminal Box With Key2 Doors ODN PON Fiber Optic Termination Box, Wall Mount Terminal Box With Key
