MTP MPO Trunk Cable
Tempat asal | Cina |
---|---|
Nama merek | YINGDA |
Sertifikasi | ISO SGS ROHS |
Nomor model | MTPf-12FC-OS1-02-09 |
Kuantitas min Order | 100 pcs |
Harga | negotiable |
Kemasan rincian | 1 pc/ box, 160 pcs/carton box |
Waktu pengiriman | 7days after payment |
Syarat-syarat pembayaran | Western Union, T/T |
Menyediakan kemampuan | 10,000 pcs per month |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xconnector | MPO male | fiber type | OS1 SM multi-fiber cable |
---|---|---|---|
Cable type | multi-fiber Ribbon cable | fiber count | 12 Fiber FC |
Insertion loss | <0.3dB | package | Vacuum / plastic packing |
Cahaya Tinggi | MPO fanout cable,mpo patch cable |

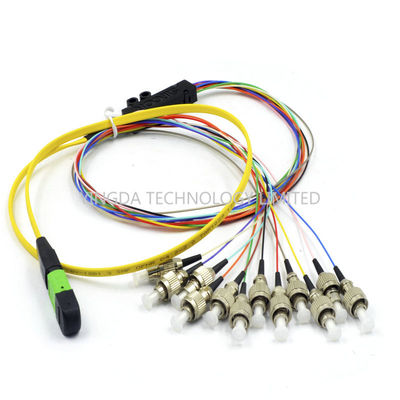

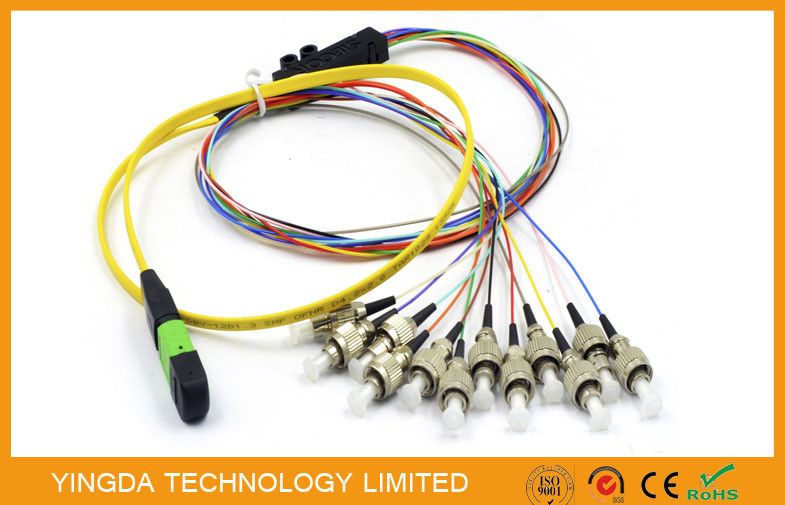

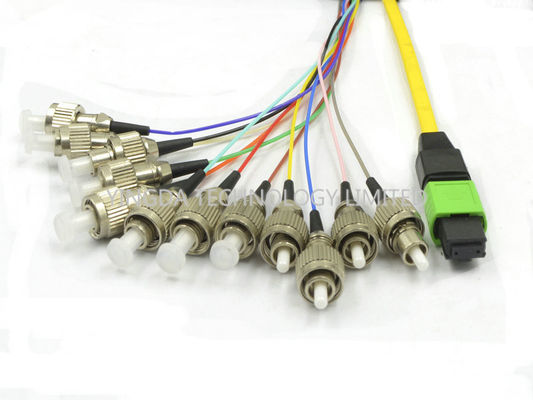

MPO - FC Fanout Trunk Cable MTP MPO Cable Ribbon SM 0.9mm 12 Fibers
MPO fiber optic patch cord is composed of high precision connectors and cables, suitable for
telecommunication system high density network connectivity solutions. The outside of the
connector is precise plastic parts, including push and pull plug locking mechanism, precise
PIN needle to ensure accurate matching. Generally use 4 core, 8 core, 12 core optical fiber
ribbon cable. MPO optical fiber jumper has high accuracy ferrule and high quality optical
fiber cable, carefully manufactured by our company's unique grinding technology, the ferrule
end face have both type: PC and APC. It also has high precise MPO adapter, low insertion
loss, which ensures long-term optical stability and mechanical properties.
Features
- Comply with G5982 & IEC61754 - JIS
- multi core optical fiber connector
- Mult-fiber termination of 4f, 8F, 12F & 24F fibers
- precision multi core inserted chip of Precision Multifiber MT Femule
- pushpulll locking Push-pull latching
- can choose male / female joint Male and Female connector type
- can choose a ribbon cable and micro cable
- Bare & Ruggedized Ribbon and Mic round cable
Technical Specification
MPO/MTP Connector |
Standard SM MT Ferrule |
Low Loss(Elite) SM MT Ferrule |
Standard MM MT Ferrule |
Low Loss MM MT Ferrule |
|
Insertion Loss |
Typical (dB) |
0.35 |
0.20 |
0.35 |
0.20 |
Maximum (dB) |
0.75 |
0.35 |
0.60 |
0.35 |
|
Return Loss (dB) |
≥50 for APC(8 Angle Polish) |
≥20 for PC |
|||
≥35 for PC |
… |
||||
Male/Female |
Mate:With Pins,Female:Without Pins |
||||
Exchange abilty (dB) |
≤0.3(Connect Randomly) |
||||
Tensile Strength (dB) |
≤0.3(Max 66N) |
||||
Vibration (dB) |
≤0.3(10-55Hz) |
||||
Temp Range (dB) |
≤0.3(-40~75℃,42Cycles) |
Ordering Information
MPO-male/APC/12F-FC/UPC/SM/Φ0.9-L/L1-RJ
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩
① |
Connector Type 1# |
MPO-female, MPO-male |
② |
End face |
APC,PC |
③ |
Fiber Count |
4,8,12 & 24 MT Fibers |
④ |
Connector Type 2# |
MPO/female*,MPO-male,FC,SC,ST,MU,LC,E2000 |
⑤ |
End face 2# |
PC,UPC,APC |
⑥ |
Fiber Mode |
SM=Single Mode,MM=Multi Mode(50,62.5,OM2,OM3,OM4) |
⑦ |
Pigtail Diameter |
Φ2,Φ0.9 |
⑧ |
Cable Length |
L=1,2,3,4… Meter |
⑨ |
Pigtail Length |
L1=0.5,0.6,1.0 Meter |
⑩ |
Temp Range |
RJ:Jacket Ribbon Cable,RB:Bare Ribbon Cable,MC:250um mini round cable |
