FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter
  • Nama
  • Nama
  • Nama
  • Nama

FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter

MOQ: 10PCS
harga: 0.04USD-2.15USD
Kemasan standar: 1PCS / BOX
Informasi Rinci
Deskripsi Produk
Peringkat & Ulasan
Informasi Rinci
Tempat asal
Cina
Nama merek
YINGDA
Sertifikasi
iso
Model Number
FC bare fibre adapter
MATERIAL:
metal
dust cap color:
green
type:
fiber adaptor
shape:
bare fiber 250um adapter
fiber mode:
single mode
insertion loss:
<1dB
Repeatability:
< 0.2db
warranty:
2 years
temperature:
-40 to +85 degree
Nama produk:
kabel mpo ke mpo, kabel mpo ke lc, konektor optik mtp, kaset mtp
Menyoroti:

serat optik coupler

,

serat optik adaptor

Deskripsi Produk

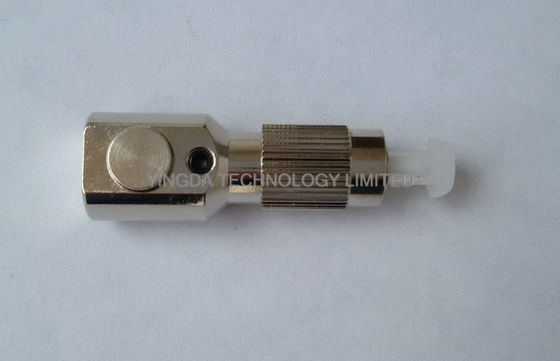

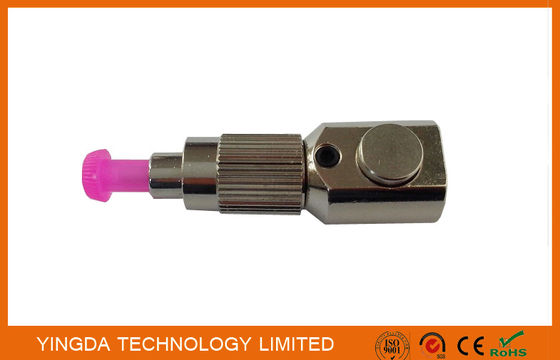

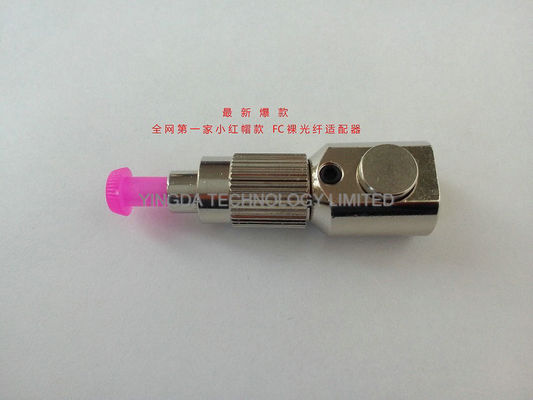

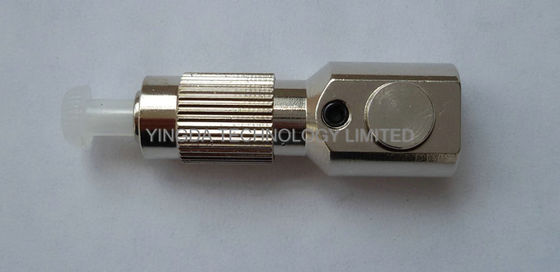

FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter





Bare fiber adapters provide a simple and effective way to use un-terminated fibers

with commercial receptacles.



Simply strip and cleave your fiber and insert in to the bare fiber adapter. Broken fibers are easily

removed with piano wire, allowing hundreds of insertions. They are recommended for power meter

hook-ups, temporary system repairs or wherever a quick fiber connections is required.





1. Application:

  • Bare fiber connection.
  • Optical fiber through connection test.
  • Two-way communication during optical-fiber cable installation and maintenance.

2. Feature:

  • Simple to use
  • Suitable for fibers with coating diameters of 250um & 900um.
  • Optical fiber with hole dia. between 123-127um can be used.
  • Multimode or Singlemode connectors.



3. Specification:



Item

LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc

Type

Multi-Mode

Single-Mode

Light Characteristic

OperatingWavelength

850nm&1300nm

1310nm & 1550nm

Typical Insertion Loss

0.2dB & 0.2dB

0.2dB & 0.2dB

Mechanical Testing

Repeatability

≤0.2dB

Exchange

≤0.2dB

Durability

>1000 (Times)

Temperature

Storage Temperature

25 ~+85

OperatingTemperature

25 ~+85

Length,Color,Out-Diameter,Fiber counts

According to the customers' requirement





FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter 0





FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter 1



Peringkat & Ulasan

Peringkat Keseluruhan

5.0
Berdasarkan 50 ulasan untuk pemasok ini

Cuplikan Peringkat

Berikut adalah distribusi dari semua peringkat
5 bintang
100%
4 bintang
0%
3 bintang
0%
2 bintang
0%
1 bintang
0%

Semua Ulasan

A
A*e
Indonesia Feb 7.2025
Bermanfaat (3)
Everything excellent, from the treatment in the negotiation, delivery time, and the quality of their product very good Delivery： 100% Quality： 100% Design： 100% Service： 100%
P
P*e
South Korea Jan 31.2025
Bermanfaat (5)
It was sent very quickly Service: Good service from my salesperson. And low IL ≤0.35dB
Review Image
Review Image
C
C*s
France Nov 19.2024
Bermanfaat (2)
Product was exactly as in pictures with good quality and packing.
